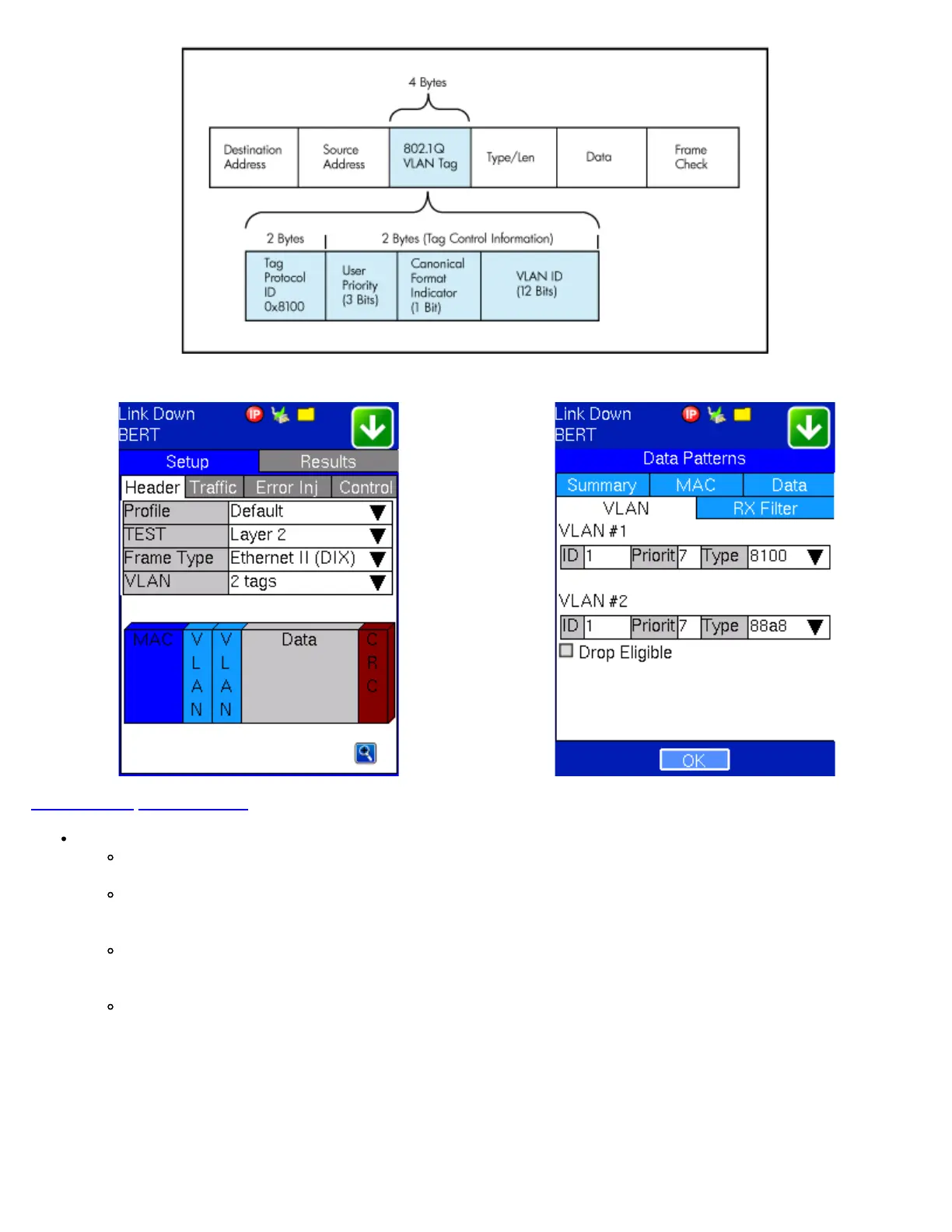

BERT Setup - VLAN Tag Configuration BERT Setup - VLAN Tag Summary
Go back to top Go back to ToC
MPLS Tab: In the MPLS tab the following parameters are configured;
MPLS label: Can be configured in the range 16 through 1,048,575 (labels 0 to 15 are reserved)
Note: Composed of 20 bits which allows for the creation of over one million labels.
CoS: Can be configured in the range 0 to 7
Note: This field is three bits in length and maps directly to IP Precedence TOS bits to provide Class of Service
(COS).
S-bit: Can be configured 0 or 1
Note: The S field is one bit in length and is used for stacking labels. This is important as it is used to indicate the
last label in the label stack.
TTL: Can be configured in the range 0 to 255. The default setting is 128 hops
Note: Used to decrement the time-to-live counter.
BERT Setup - Header with MPLS Label BERT Setup - MPLS Label Summary
TX130M+_e-manual_D07-00-051P_RevD00
To Next Page
