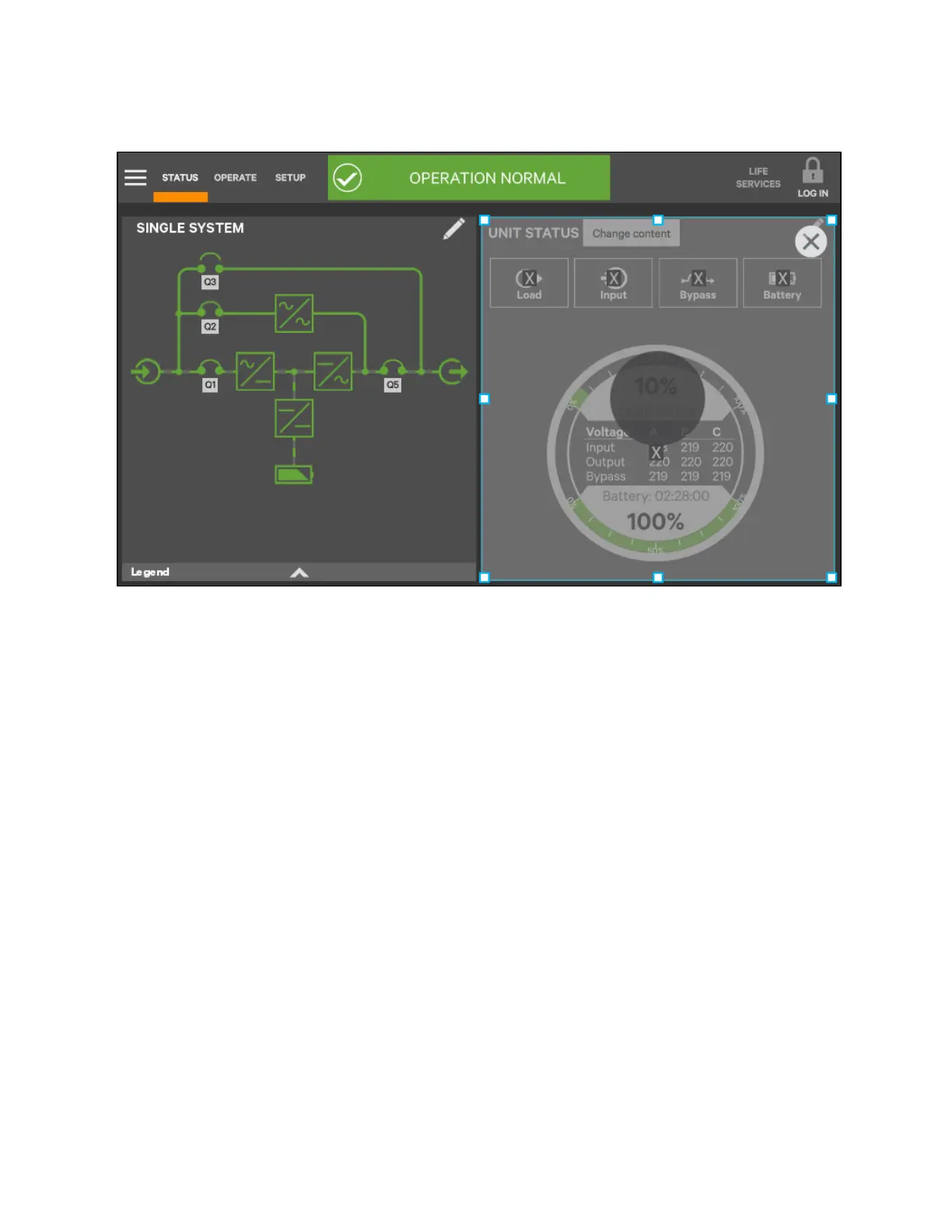

Figure 5.14 Resize or rem ove a panel
Edit UN IT STA TU S P anel w ith the Ed it Icon
The UNIT STATUS panel may be changed to add or remove data. The panel has four default parameters. Any or all can be
deleted or replaced with the Editing icon.
Possible parameters for the UNIT STATUS panel are:
• Input
• Bypass
• Battery
• Environmental
• Load
N O T E: C hanges m ade to the U N IT STA TU S pan el will be applied to all view s using the panel.
5 Operator Control and Display Panel
72
Vertiv™ Liebert® EXM2 UPS User Manual
