VI.BE.MAC.S.p.A.
pag.20
16. SOLENOID VALVES
3 types of solenoid valve are used in the machine. They are:
• The 5-way double exchange model SY3120-5LOU-C6 used for valves from EV1 to EV3.
• The 5-way double exchange model SY3120-5LOU-C4 used for valves from EV4.
• The 3-way single exchange model PA13/0205 used for valves EV5 and EV6.
All the electric coils are type 24Vcc 2.5W.
Depending on the operative system called up, the Solenoid Valves have the following functions with their
relative connections:
- 1006 V3L LABEL
SOLENOID VALVE FUNCTION CONNECTION NUMBER code
EV1 External Jig CON8 (FU) 2
EV2 Internal Jig TE2 A10
EV3 Internal Jig Re-entry TE2 A9 FUN1
EV5 Pressure foot CON11 (PF) 3
- 1006 V3DLCS DESIGN + LOADER + UNLOADER + STACKER
SOLENOID VALVE FUNCTION CONNECTION NUMBER code
EV1 External Jig CON8 (FU) 2
EV2 Internal Jig TE2 A10
EV3 Internal Jig Re-entry TE2 A9 FUN1
EV4 UNLOADER TE2 A5
EV5 Pressure foot CON11 (PF) 3
EV6 Stacker CON9 (W) 3
The 3-way model 76.026.01.00 used for the EVA GENERAL safety valve operating at 24V 5W 50/60Hz on
the back side of the bracket
EVA Compressed air cut-off in absence of electrical supply

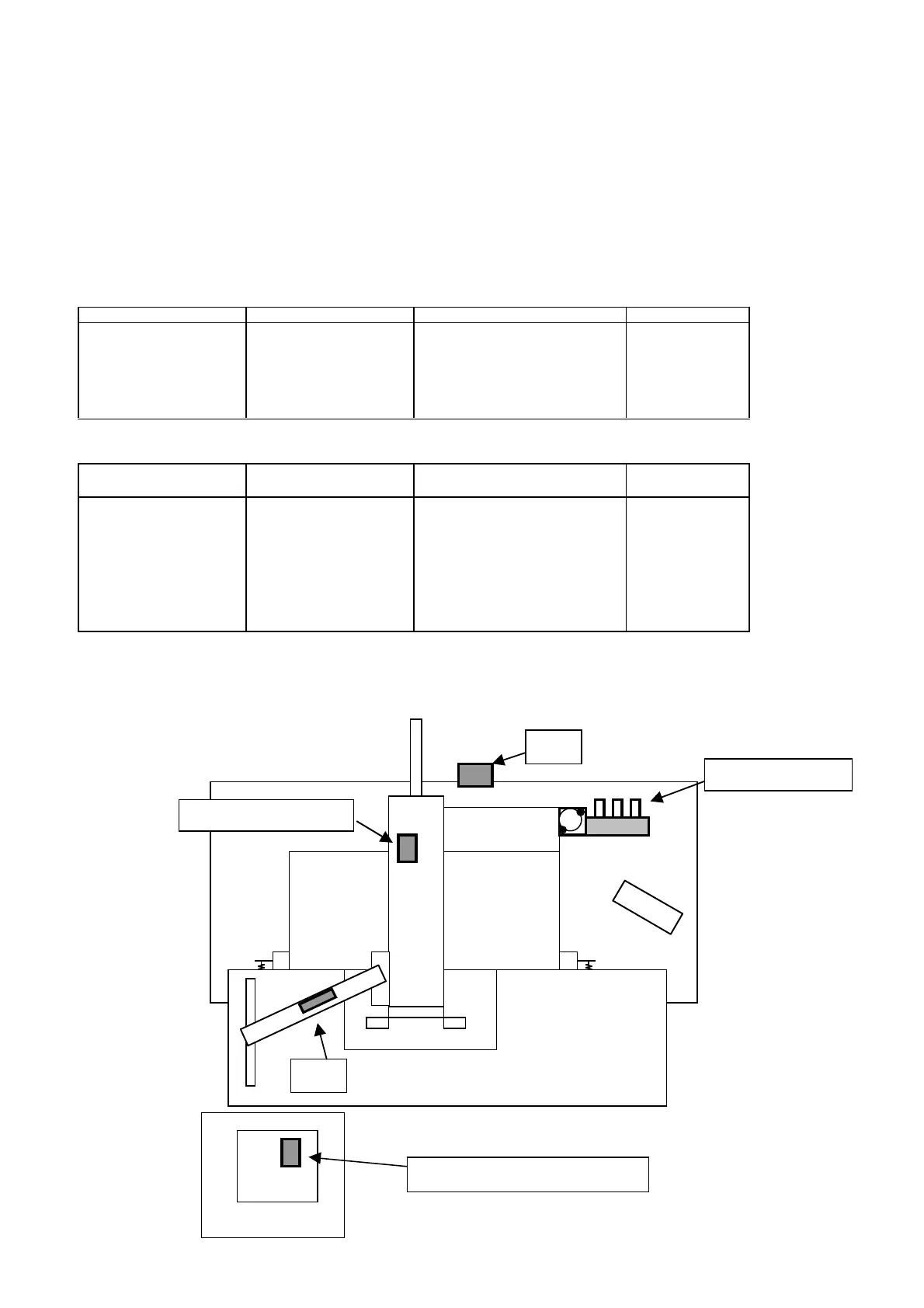

EV1 – EV2 – EV3
EV4
EV5 inside Head
EV6 inside Stacker
EVA
