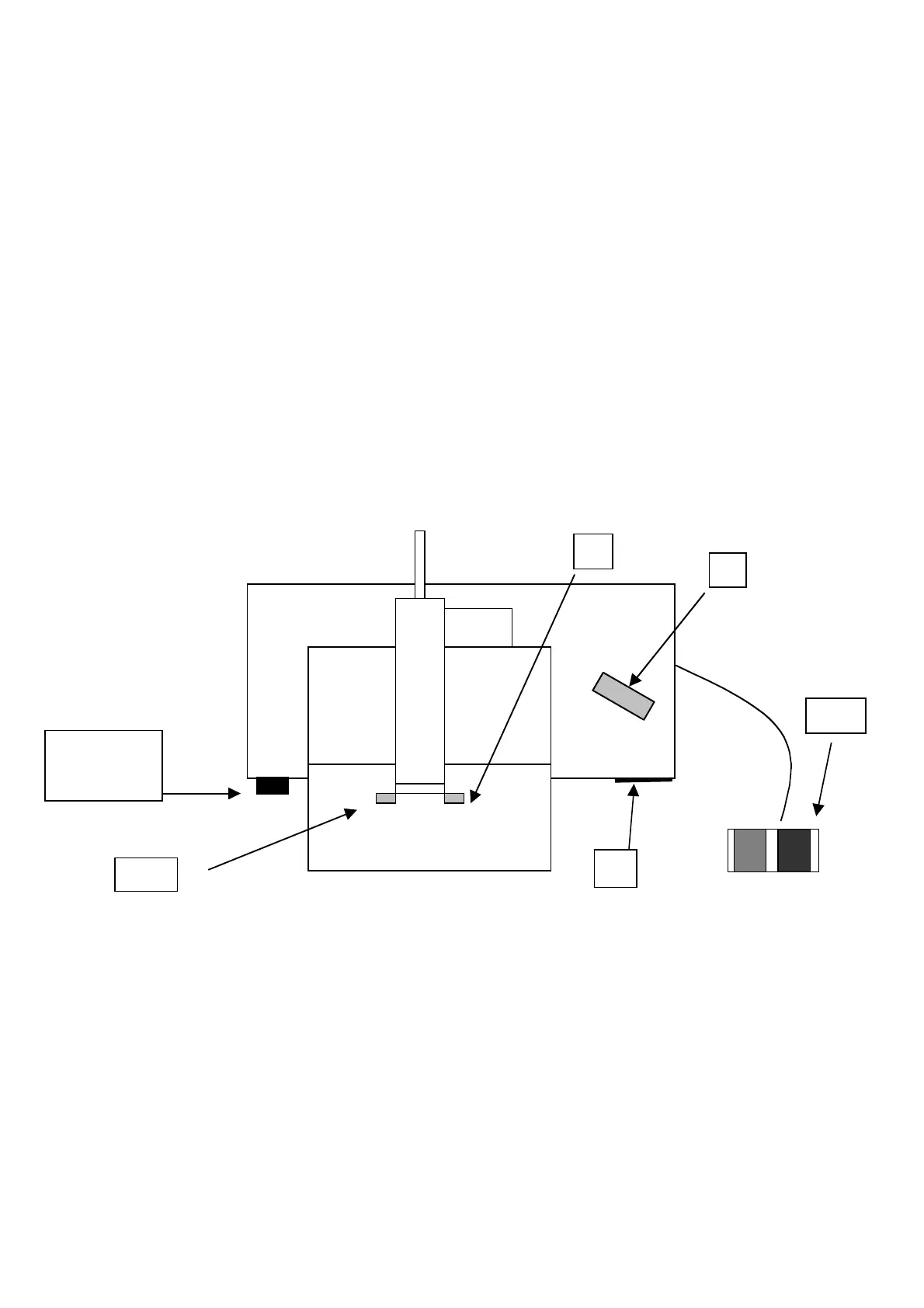

3. WORK STATION
The operator works in a standing position, in front of the sewing machine, with the pocket Loader (optional)
located at its side.
The main current switch is on the left side of the support.
Fixed onto the sewing head, are the following:
1. The right YELLOW button for starting the pocket loader, if present (selecting function Prmb 1).
2. The left YELLOW button for starting the sewing cycle (selecting the function Prmb 1 o 2 o 3 o 4).
3. The RED button for stopping the sewing cycle.
In front:
4. on the table, is the command console of the sewing head.
5. on the cabinet under the table, is the control console for selecting the working pattern with the Floppy
Disk driver.
On the floor, under the loader, is the pedal unit with:
6. The GREY command button
for the internal jig of the equipment (selecting the label function (selecting
the function Prmb 2) - the sewing cycle start (selecting the embroidery function Prmb 5)
7. The BLACK command button for the external jig of the equipment (selecting the label function Prmb 2
or 3 or 4) – the design jig lowering (selecting the embroidery function Prmb 6) - to command the
opening/closing of the loader jig in the loader (selecting the embroidery function with loader Prmb 1).
1E2
4
5
6E
3
Main Current
Switch
