23.4.MODIFYING A CURVE INSERTED IN THE PROGRAMME
Lower the plates
Press the MODIFY key
The display changes to:
PRESS HOME KEY
Press the HOME key
The machine resets to its ORIGINAL POINT
Press the FUNCTION key
The display changes to:
CHANGE RETURN 1Y
FEED 2N
Press the 1 key and ENTER
The display changes to:
1 STITCH 2 SPEED 3 CODE 4MOVE (B)
Press 1 and ENTER
The display changes to:
1 BLOC 2 FEED 3 DEL 4ADD 5MOD
Press 1 and ENTER to select BLOCK
The display changes to:
START POINT JOG+
Use JOG+ to go to the start of the modification (point A)
Press ENTER
The display changes to:
END POINT
Use JOG+ to go to the end of the modification (point B)
Press ENTER
The machine automatically returns to point (A)
The display changes to:
1 BREAK 2 ARC 3 CURVE 4 LINE 5 ZIG

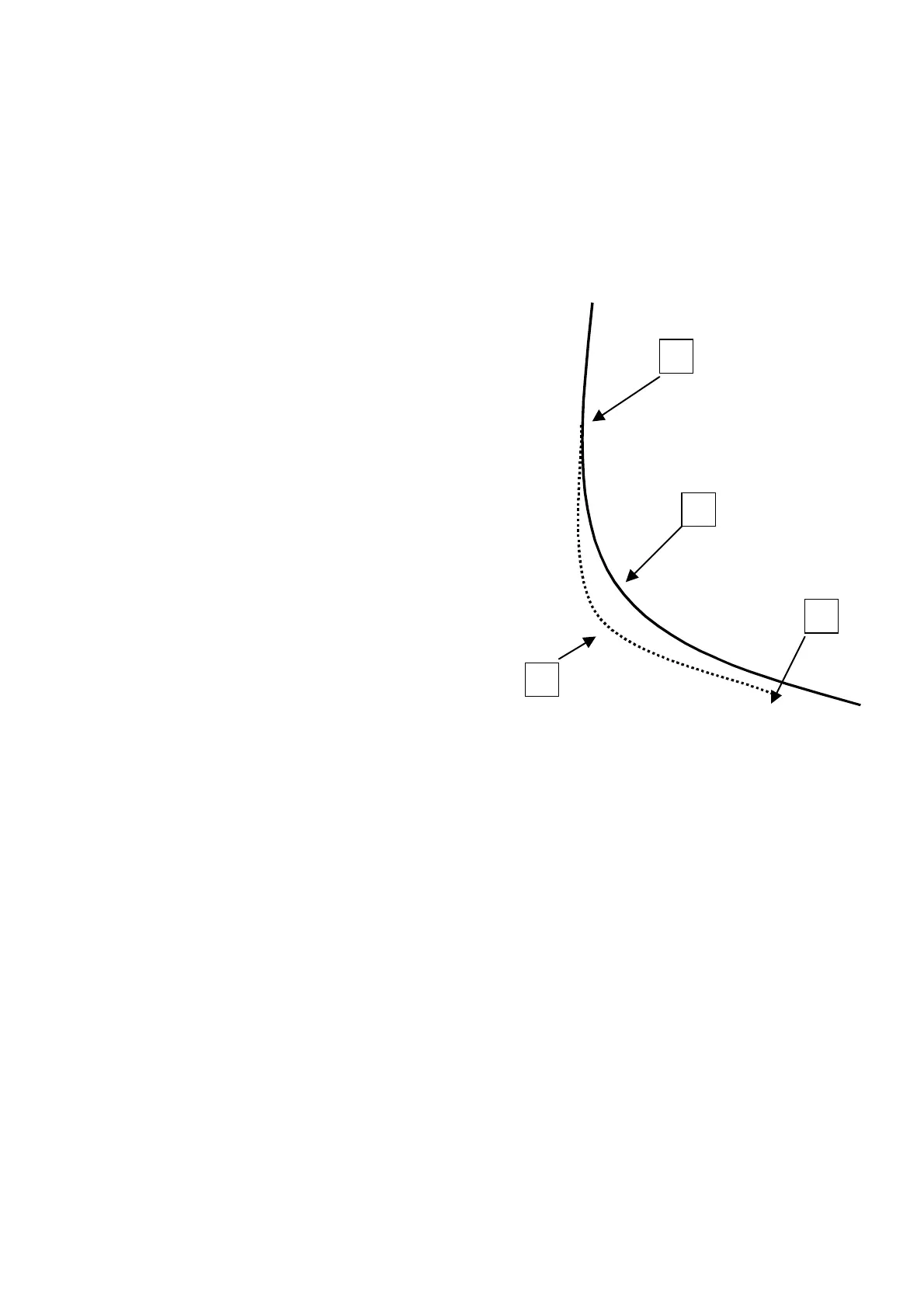

2 ARC = Joins the starting point A to the end point B with an arc
through a NEW point D selected by the operator
Press 2 and ENTER to select ARC
The display changes to:
ARC STITCH LENGTH
3.0mm
Insert the required stitch length. E.g. 3.1 mm insert 3 and 1
Press ENTER
The display changes to:
SPECIFY JOG 1Y
2N
Press 1 and ENTER
The display changes to:
START POINT JOG SEW
X xxxx Y yyyy E
Use JOG+ key to go to the central point C of the arc in the pocket.
Press ENTER
The display changes to:
ARC INPUT POINT
X +000.0 Y +000.0 E
Use the directional arrows to go to the new central point D of the arc.
Press ENTER
The following appears on the display:
B
