Vi.Be.Mac V3L - Original Point Sensors; Pneumatic System

VI.BE.MAC.S.p.A.
pag.22
18. ORIGINAL POINT SENSORS

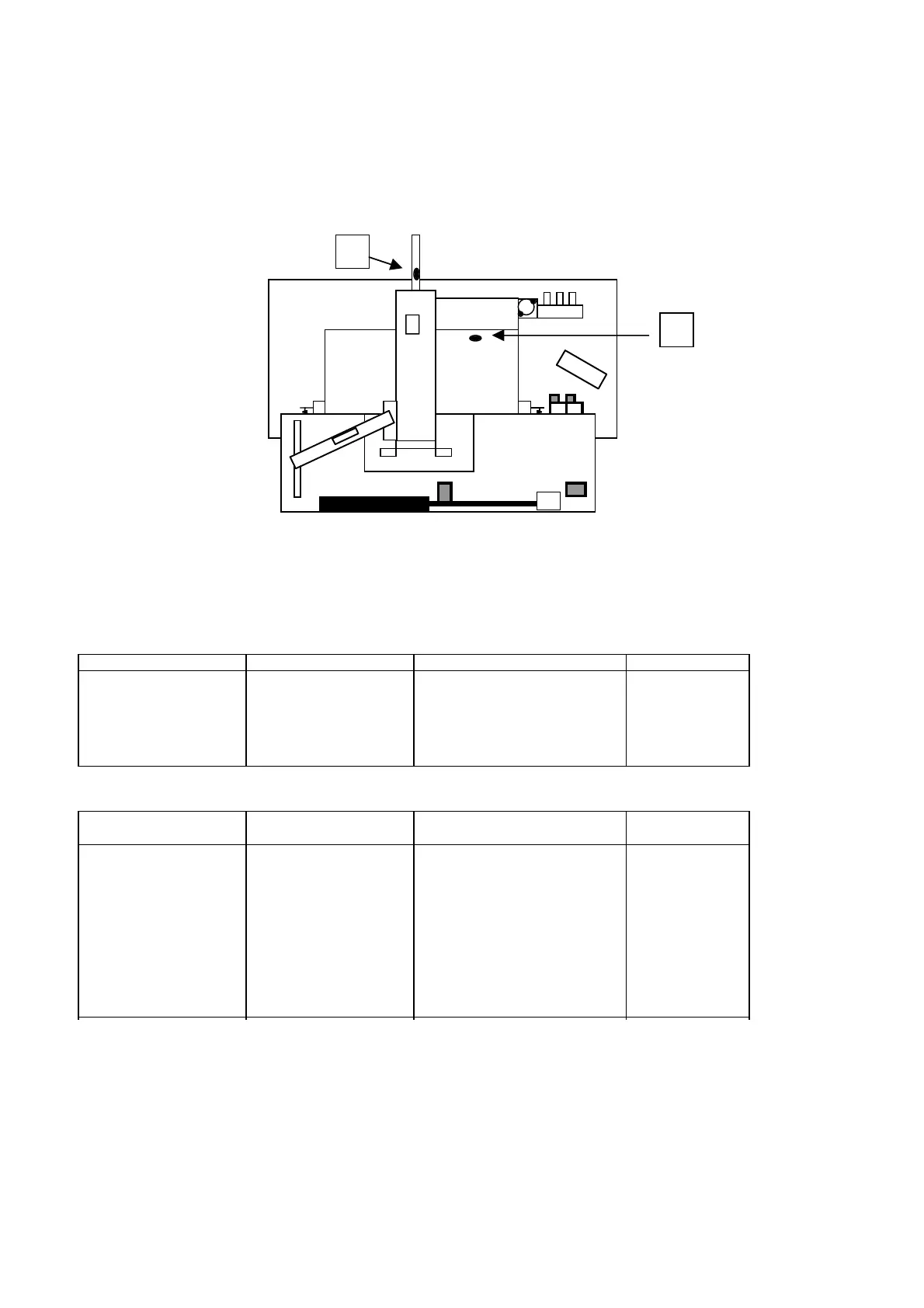

There are two magnetic positioning sensors inside the sewing head.
They are located at the following points:
- inside the Sewing Head near the carriage sliding guides, under the transparent LEXAN cover on the right
(X AXIS).
- inside the back longitudinal arm under the handwheel behind the machine (Y AXIS).
Their function is to position the machine at Zero point (Original Point), when the machine needs to be re-set,
or at the end of each sewing programme.
19. PNEUMATIC SYSTEM
A series of cylinders (some special), controlled by the Solenoid Valves, are used to carry out all the various
functions.
The cylinder connections for the FUNCTION are as follows:
- 1006 V3L LABEL
SOLENOID VALVE FUNCTION CONNECTION NUMBER code
EV1 External Jig n°1 and n°2 18320-C
EV2 Internal Jig n°3 and n°4 18320-C
EV3 Internal Jig Re-entry n°5 and n°6 16X82
EV5 Pressure foot Supply V3LKRIC0054
- 1006 V3DLCS DESIGN + LOADER + UNLOADER + STACKER
SOLENOID VALVE FUNCTION CONNECTION NUMBER code
EV1 Machine Jig n°1 and n°2 18320-C
EV2 Loader Jig n°3 and n°4
EV3 Loader n°5 and n°6 C85N20-300C
EV4 Unloader Supplied by 21215/C
RELIVING R07-100-RNKG
EV5 Pressure foot Supplied by V3LKRIC0054
RELIVING R07-100-RNKG
EV6 Stacker Supplied by Special
RELIVING R07-100-RNKG
X
Y
