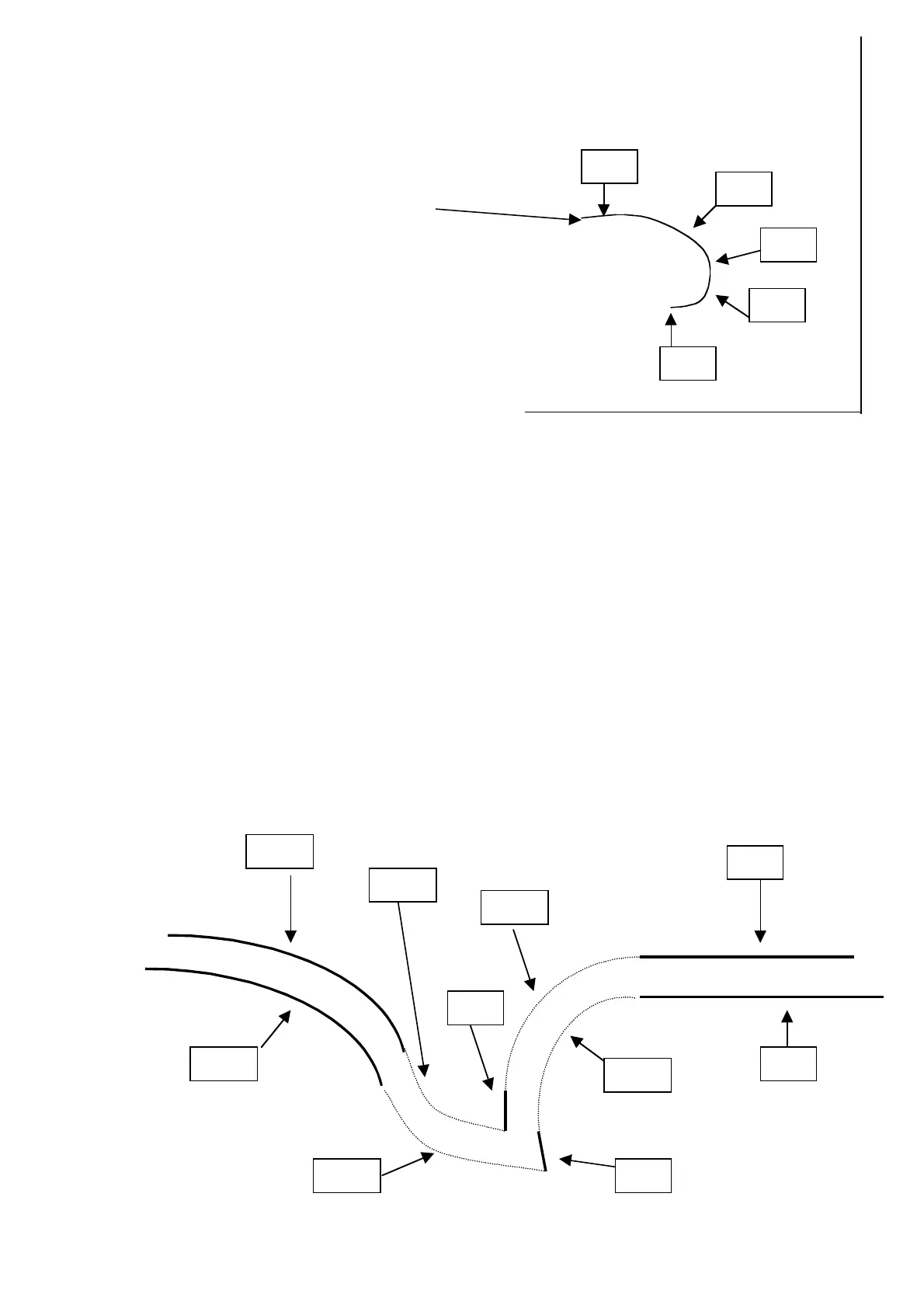

CURVE SEAM (IRREGULAR CURVE)
Press the TEACHING METHOD key and select the S 01 method in the upper right of the display
Move with the directional arrows TO THE VARIOUS POINTS OF THE CURVE.
Press ENTER
Move with the directional arrows to the END of the curve (S 05)
Press ENTER
Press ENTER
The display changes to:
MAKE CURVE 1 Y
DATA 2 N
Press 1 and ENTER
End of the seam
Press CODE
Press 1 and ENTER
Press 1 to select TRIM
Press ENTER
• If there is a second seam start again from point (X)
• If the programme is finished
Press RETURN
The machine moves automatically to the original point
Press END
Press HOME
Lower the jigs and test the programme with the JOG+ key and, if all goes well, press HOME
Try the programme and, if all goes well save it to memory
Try the programme and then save it to memory as follows:
Press WRITE
The display changes to:
WRITE DATA
1.MEMORY 2.FD
Press 1 to save the programme into the internal memory of the machine (Max.47 programmes)
Press 2 to save the programme onto the floppy disk (Max.149 programmes)
Confirm with ENTER
Insert a programme number between 600 and 749 in case of type B programme
Insert a programme number between 400 and 549 in case of type BA programme
Press ENTER
If this number is already in use, to write over the existing programme
Press 1 and ENTER
S 01
S 05
S 02
S 03
S 04
A
P1
A
P1
A
P1
P-P
P-P
P-P
P-P
S 001
A
P 1
S 001
