Victor CUTMASTER Service Manual

INTRODUCTION cutmaster 10MM, 12MM
Manual 0-5230 2T-1 Introduction

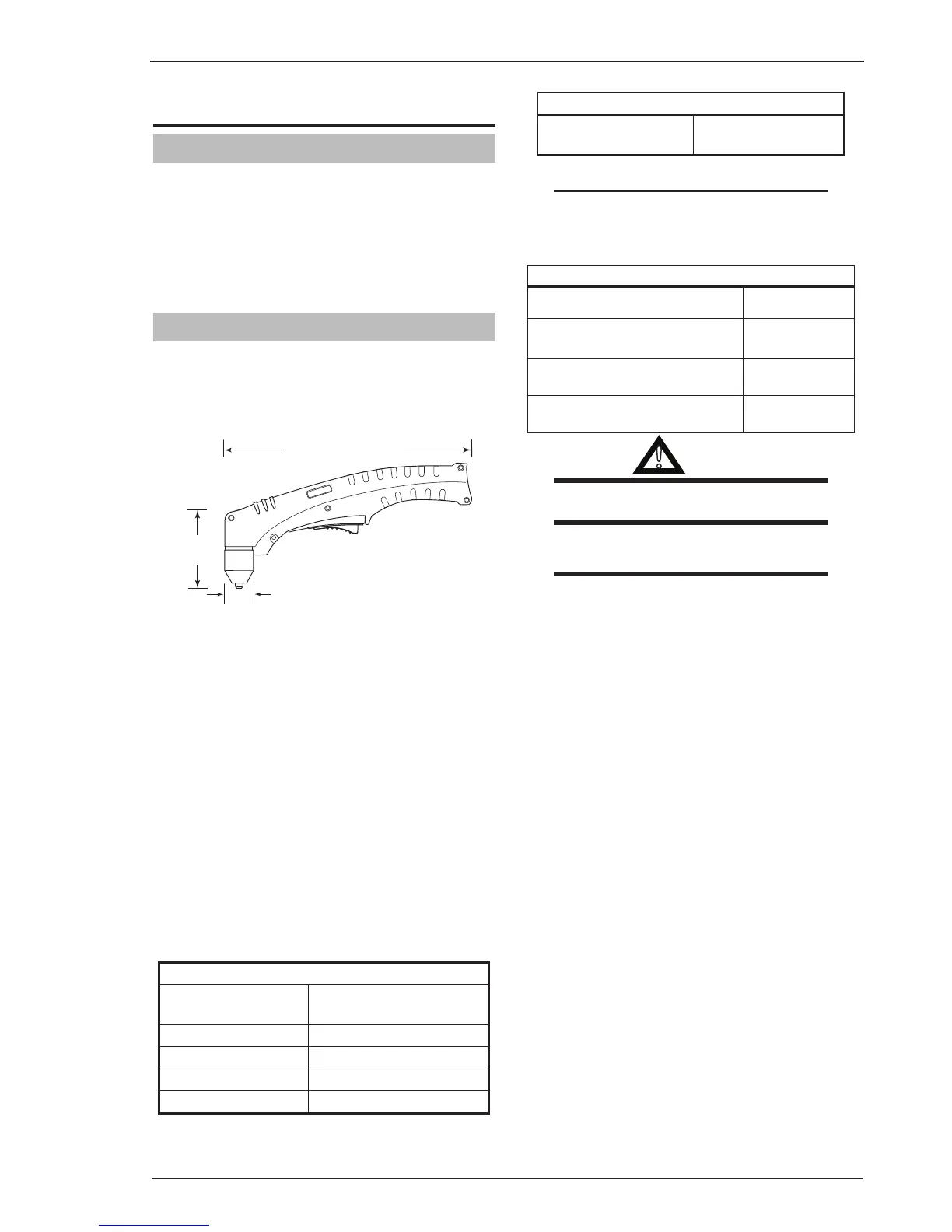

SECTION 2TORCH:
INTRODUCTION
2T.01 Scope of Manual
This manual contains descriptions, operating instructions and main-
tenance procedures for the SL60 Plasma Cutting Torch. Service of
thisequipmentisrestrictedtoproperlytrainedpersonnel;unquali-
fied personnel are strictly cautioned against attempting repairs or
adjustments not covered in this manual, at the risk of voiding the
Warranty. Read this manual thoroughly. A complete understanding
of the characteristics and capabilities of this equipment will assure
the dependable operation for which it was designed.
2T.02 Specifications
A. Torch Configurations
1. Hand Torch, Model SL60
The hand torch head is at 75° to the torch handle. The hand
torches include a torch handle and torch trigger assembly.
10.125" (257 mm)
3.75"
(95 mm)
1.17" (29 mm)
Art # A-03322_AB
Figure 2T-1 - SL60 Torch
B. Torch Leads Lengths
Hand Torches are available as follows:
• 20ft/6.2m.
C. Torch Parts
Starter Cartridge, Electrode, Tip, Shield Cup
(See "Figure 4-3 - SL60 Torch Parts" on page 4-2.)
D. Parts - In - Place (PIP)
Torch has built-in switch.
12 vdc circuit rating
E. Type Cooling
Combination of ambient air and gas stream through torch.
F. Torch Ratings
SL60 Torch Ratings
Ambient
Temperature
104° F
40° C
Duty Cycle 100% @ 60 Amps @ 400 scfh
Maximum Current 60 Amps
Voltage (V
peak
) 500V
Arc Striking Voltage 7kV
G. Current Ratings
SL60 Current Ratings
SL60 Torch & Leads
Up to 60 Amps, DC,
Straight Polarity
NOTE
Power Supply characteristics will determine material
thickness range.
H. Gas Requirements
SL60 Torch Gas Specifications
Gas (Plasma and Secondary) Compressed Air
Operating Pressure
Refer to NOTE
60-75 psi
4.1 - 5.2 bar
Maximum Input Pressure 125 psi / 8.6 bar
Gas Flow
300-500 scfh
142-235 lpm
!
WARNING
This torch is not to be used with oxygen (O
2
). This torch
is not to be use with high frequency starting systems.
NOTE
Operating pressure varies with torch model, operating
amperage, and torch leads length. Refer to gas pres-
sure settings charts for each model.
