CUTMASTER 10MM, 12MM DISASSEMBLY PROCEDURE
Disassembly Procedure 7-2 Manual 0-5230
7.02 Control PCB Removal
!
WARNING
Read and follow safety information in Section 6.02 before proceeding the disassembly.
Remove case (refer to 6.04) before removing control PCB.
Refer to graphics on page 7-3.
1. M4 Screw. Remove 4 screws from Control panel.
2. Disconnect HF/QF harness from HF/QF connector.
3. Disconnect MB harness from MB connector.
4. Disconnect SOURCE&TIP harness from SOURCE&TIP connector.
5. Disconnect DRIVE harness from DRIVE connector.
6. Disconnect U-D harness from U-D connector.
7. Disconnect WA harness from WA connector.
8. Disconnect FAN harness from FAN connector.
9. Disconnect TRANF-IFB harness from TRANF-IFB connector.
10. Disconnect WV harness from WV connector.
11. Disconnect D-PORT harness from D-PORT connector.
12. Disconnect OT harness from OT connector.
13. Disconnect PRESSURE harness from PRESSURE connector.
14. Disconnect GUN&TEST harness from GUN&TEST connector.
Refer to Figure 6-9 in Section 6.12 for control PCB.
6
1
5
4
3
2
14
13
12
11109
8
7
Art # A-10250

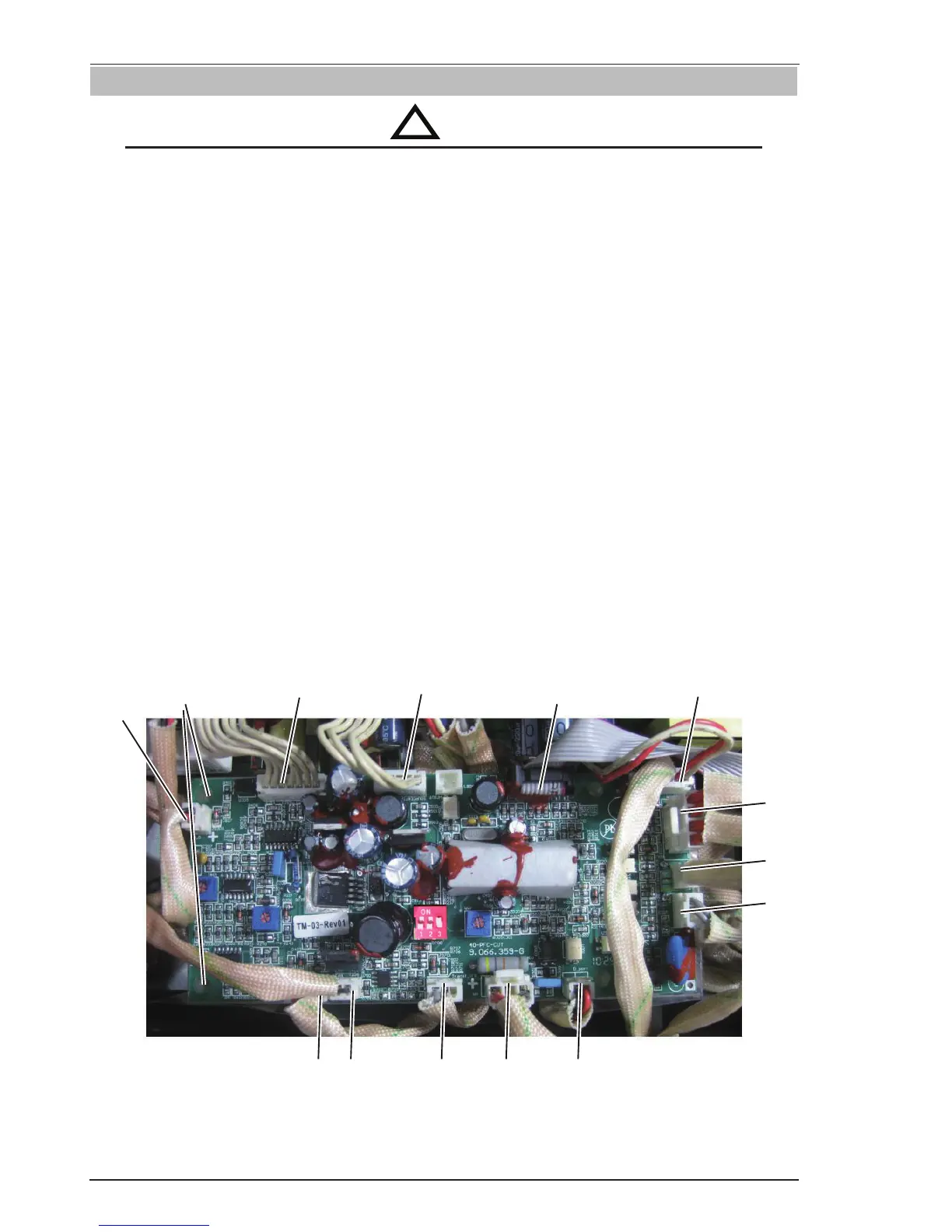

Figure 7-1 Removing Control PCB
