DISASSEMBL
Y PROCEDURE
CUTMASTER 10MM,
12MM

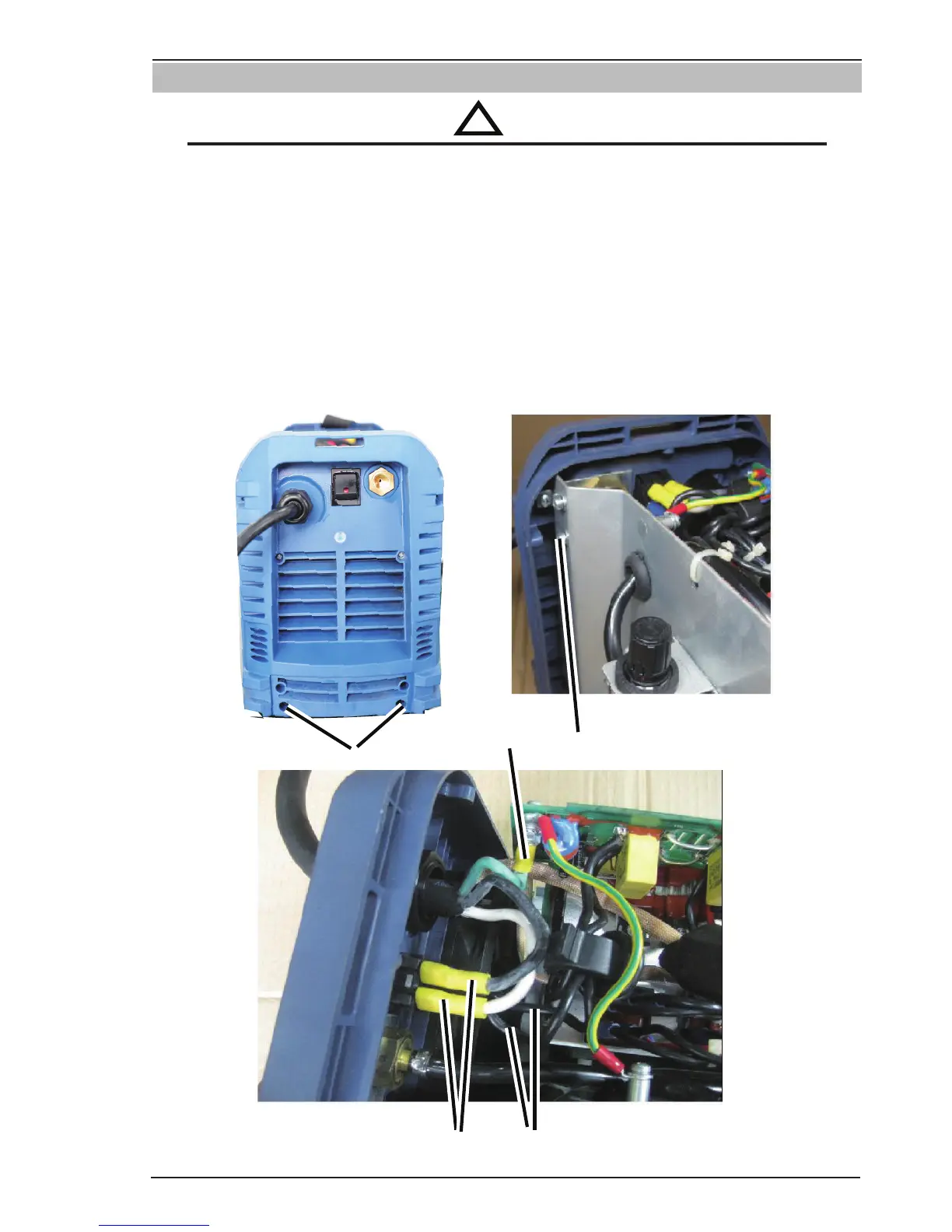

Manual 0-5230 7-5 Disassembly Procedure
7.05
Rear Panel Removal
!
WARNING
Read and follow safety information in Section 6.02 before proceeding the disassembly.
1.
Remove screws on rear panel.
2.
Remove the three screws.
3.
T
erminals from supply cable.
Disconnect two terminals from switch.
4.
Wires from main PCB1.
Disconnect the two terminals from switch.
5.
Goung wire terminal.
Remove the nut.
1
2
3
4
5
Art # A-11641
Figure 7-4 Removing Rear Panel
