DISASSEMBLY PROCEDURE CUTMASTER 10MM, 12MM
Manual 0-5230 7-7 Disassembly Procedure
7.07 Base Panel Removal
!
WARNING
Read and follow safety information in Section 6.02 before proceeding the disassembly.
1. Remove central panel screws.
2. Remove main power PCB assembly screws.
1
2
Art # A-11086

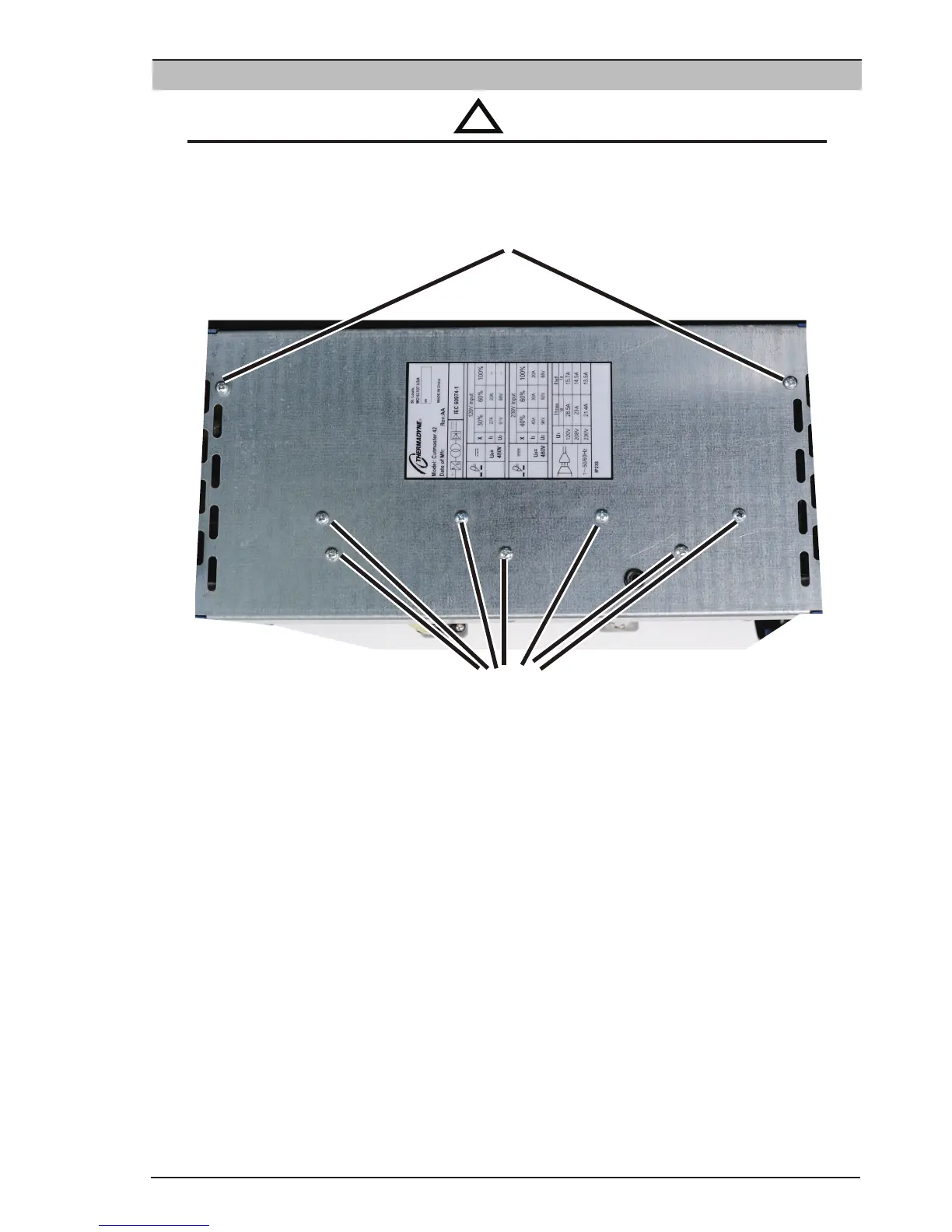

Figure 7-6 Removing Base Panel
