Victor CUTMASTER - Power Switch S1 and Power Cord Removal

CUTMASTER 10MM, 12MM DISASSEMBLY PROCEDURE
Disassembly Procedure 7-6 Manual 0-5230
7.06 Power Switch S1 and Power Cord Removal
!
WARNING
Read and follow safety information in Section 6.02 before proceeding the disassembly.
1. Gas inlet. Remove gas inlet from rear panel.
2. SW locking tabs
Squeeze the locking tabs and push SW out from the rear panel.
3. Loosen the cable anchorage.
4. Remove fan.
5 Pull the Input Power Cord out.
1
2
3
4
5
shi
Art # A-11639

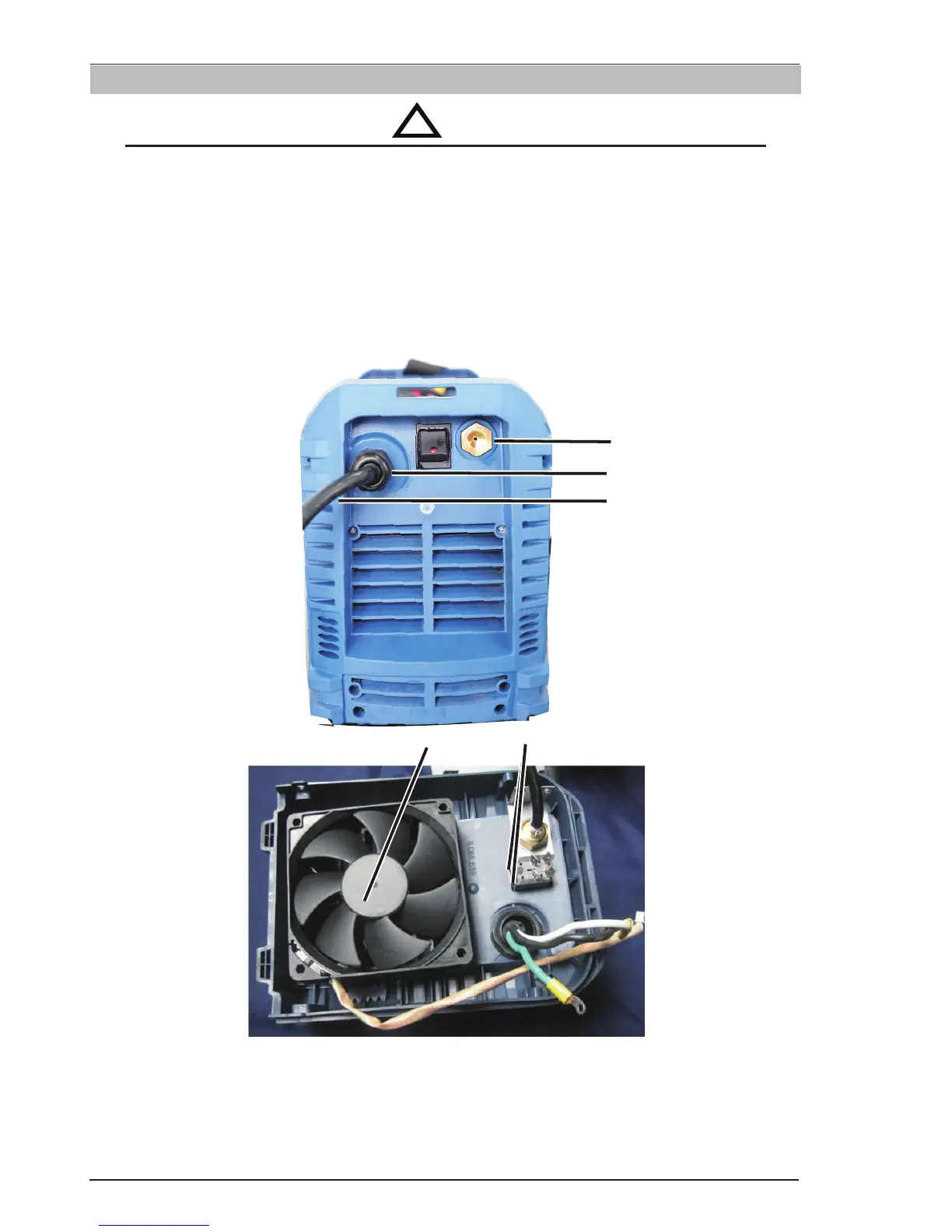

Figure 7-5 Removing Power Switch and Power Cord
