Troubleshooting 6-8 Manual 0-5230
CUTMASTER 10MM, 12MM TROUBLESHOOTING
6.07 Check Main ON/ OFF Switch
!
WARNING
Read and follow safety information in Section 6.02 before proceeding.
Art # A-10245
1
2
3
4

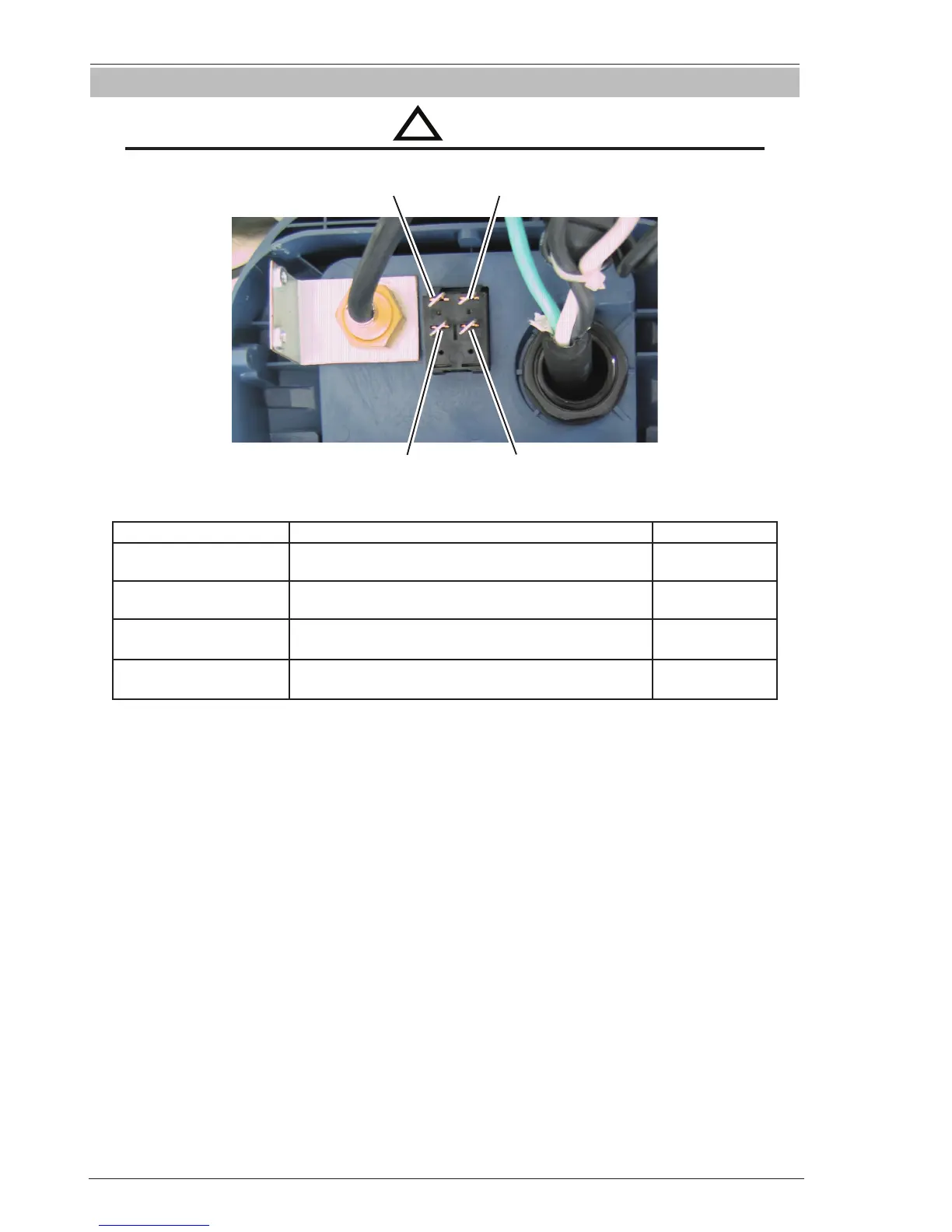

Figure 6-5 Main ON/ OFF Switch View
Power Switch Testing Multimeter Lead Placement Impedance
Switch ON Positive meter lead to TP 1
Negative meter lead to TP 2
0 to 1 Ω
Switch ON Positive meter lead to TP 3
Negative meter lead to TP 4
0 to 1 Ω
Switch OFF Positive meter lead to TP 1
Negative meter lead to TP 2
> 1k Ω
Switch OFF Positive meter lead to TP 3
Negative meter lead to TP 4
> 1k Ω
Table 6-3 Power Switch, Multimeter set to measure ohms (Ω)
