CUTMASTER 10MM, 12MM REPLACEMENT PARTS
Replacement Parts 9-2 Manual 0-5230
9.03 SL60 Replacement Parts
Item # Qty Description Part No
1 1 Electrode, 30-120 Amp OTD9/8215
2 1 Start Cartridge OTD9/8213
3 1 Tip, 40A Drag (fitted) OTD9/8207
1 Tip, 40A Standoff OTD9/8208
4 1 Shield Cup OTD9/8218
N/S 1 SL60 Torch w/20 ft (6,2m) leads (not shown) OTD7/5204
Art# A-09345

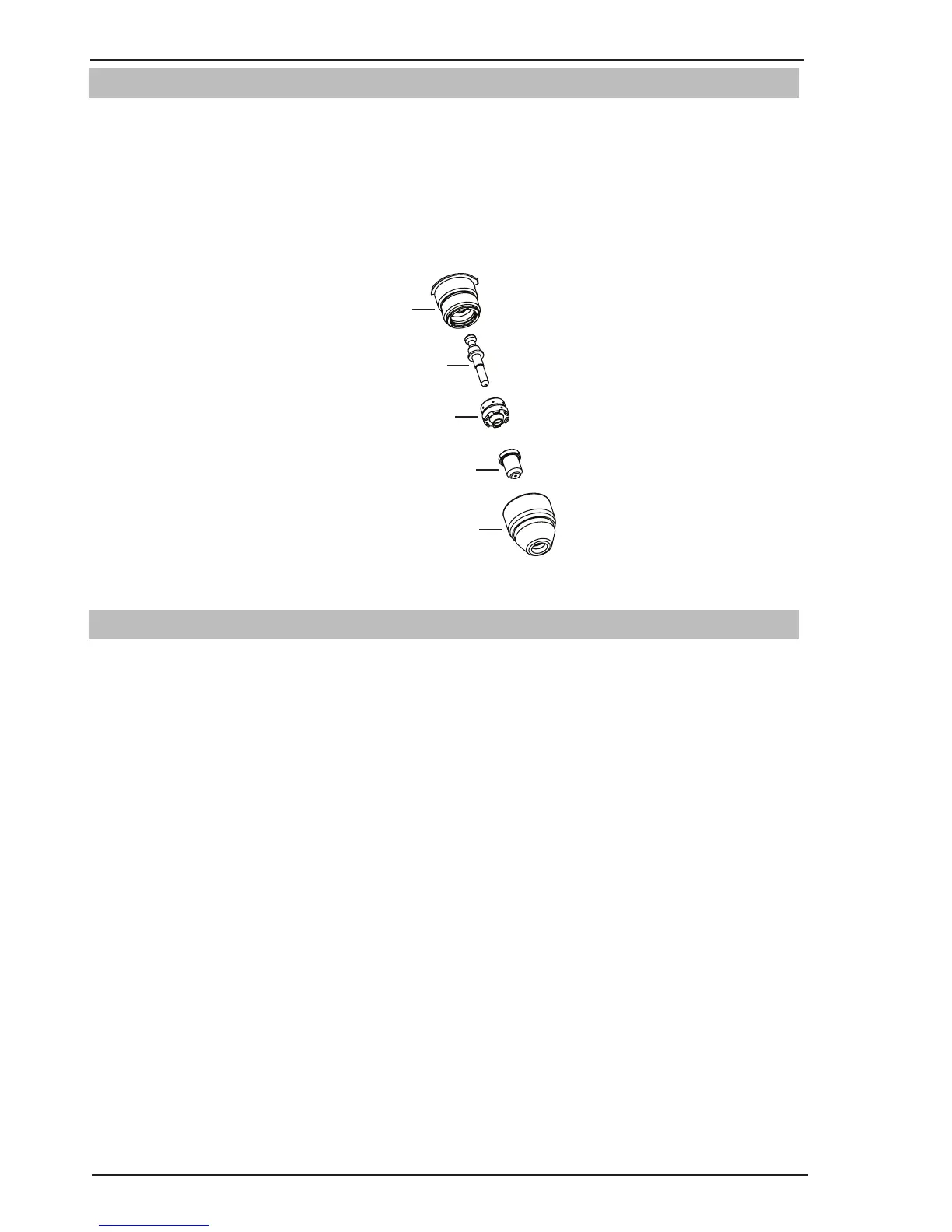

Electrode
Start Cartridge
Tip
Shield Cup
Torch Head
Parts 9-2 - Electrode Parts
9.04 Options and Accessories
Qty Description Part No
1 Single-StageFilterKit 7-7507
1 Circle cutting guide OTD7/3291
1 Roller & radius cutting guide OTD7/7501
1 ATC 7.6m Torch, torch lead extension OTD7/7545
