TROUBLESHOOTING CUTMASTER 10MM, 12MM
Manual 0-5230 6-9 Troubleshooting
6.08 Check Pressure Switch
2
Art # A-10292

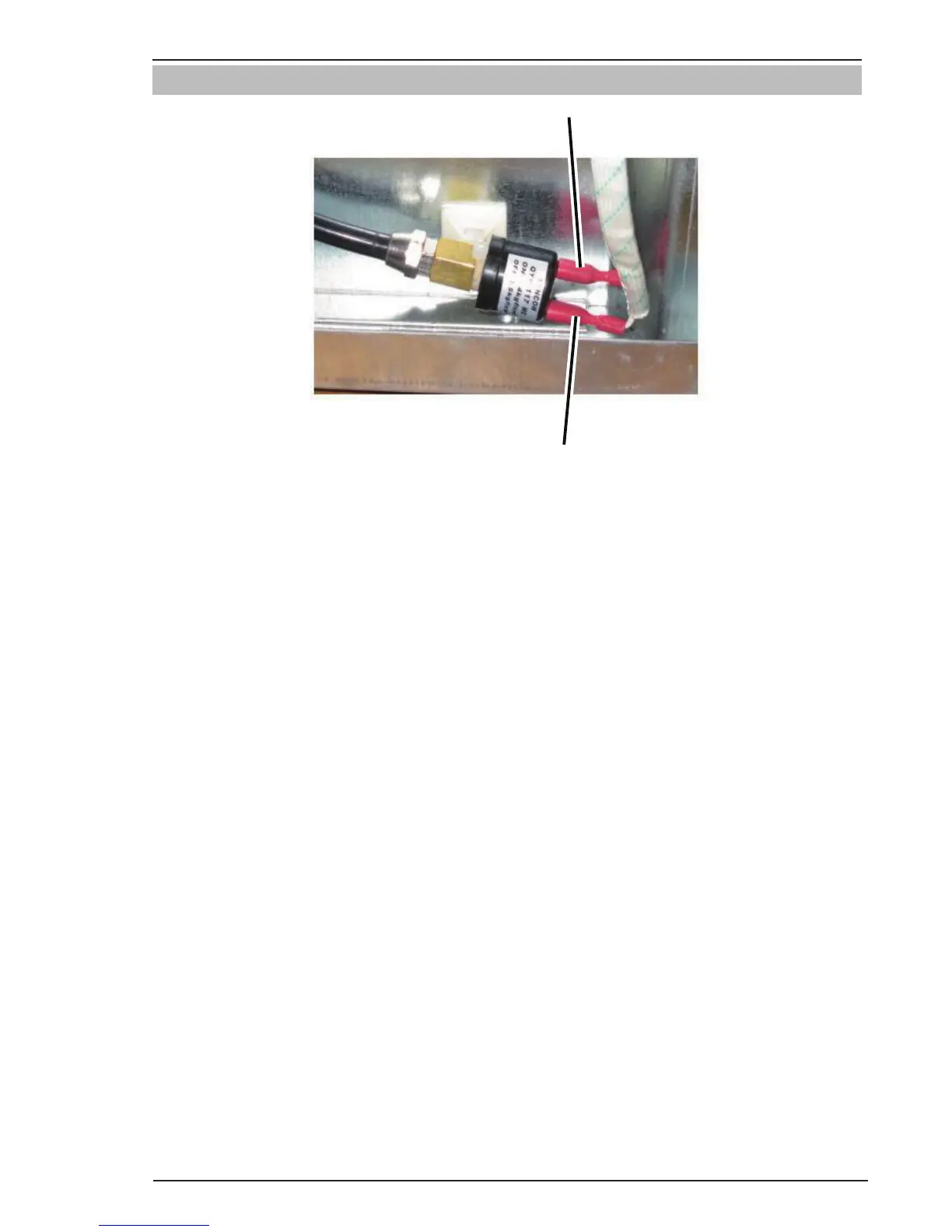

Figure 6-6 Pressure Switch View
Turn ON the power switch, disconnect the contact of the pressure switch and start the test as below:
1. Pressure switch open
When the pressure is up to 3.5kgf/cm
2
(49.78 PSI), the pressure switch turns OFF.
2. Pressure switch closed
When the pressure is less than 2.4kgf/cm
2
(34.13 PSI), the pressure switch turns ON and the resistance between
1 and 2 is about 0.1Ω.
