THEORY OF OPERATION CUTMASTER 10MM, 12MM
5.01 Inverter Design
What does the word inverter mean?
The term inverter refers to the ability to change DC power into AC. Inverter power supplies immediately rectify
the incoming AC to DC, and then the transistors create a higher frequency AC. The higher frequency AC then
goes on to a much smaller main transformer than in a conventional power supply. The AC is then rectified to
extremely smooth DC. The diagram to the below shows the basic electrical wiring of a DC output inverter power
supply.
AC-High Frequency AC-High Frequency
Art # A-09846_AB
High Amperage High Amperage High Amperage Low Amperage Low Amperage Low Amperage Low Amperage
High Vo ltageHigh VoltageHigh Vo ltage Low Vo ltageLow Vo ltageLow Vo ltageHigh Vo ltage
DC-SmoothDC- RippledDC- RippledDC-Smooth
AC- 50/60Hz
Inverter Technology-Summary
RectifierFilterIGBTTransformer Rectifie rInductor

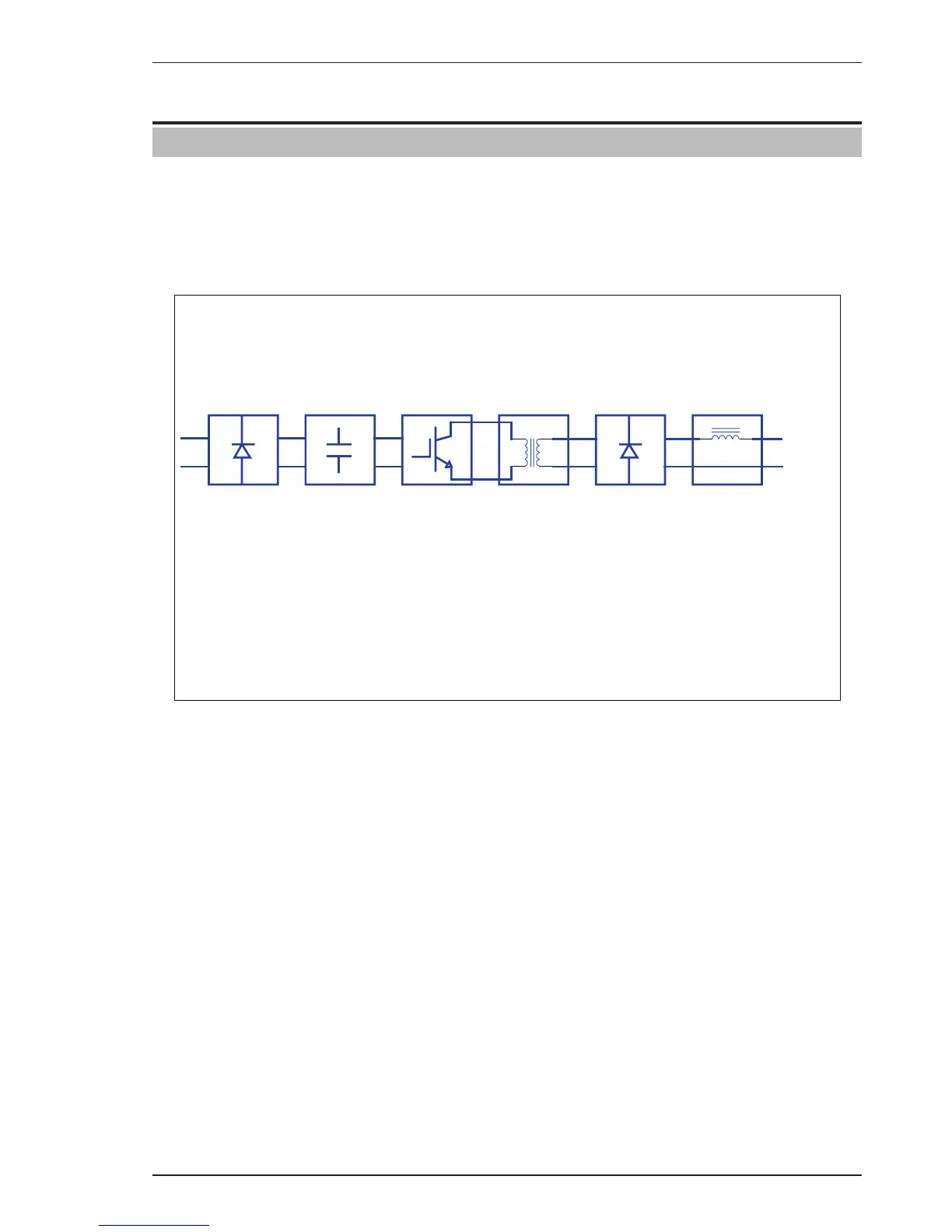

Figure 5-1- Inverter Technology
