TROUBLESHOOTING CUTMASTER 10MM, 12MM
Manual 0-5230 6-5 Troubleshooting
6.05 Visually Inspect
WARNING
Read and follow safety information in Section 6.02 before proceeding.
1. Take out clear protective sheet over main inverter board.
1
Art # A-10243

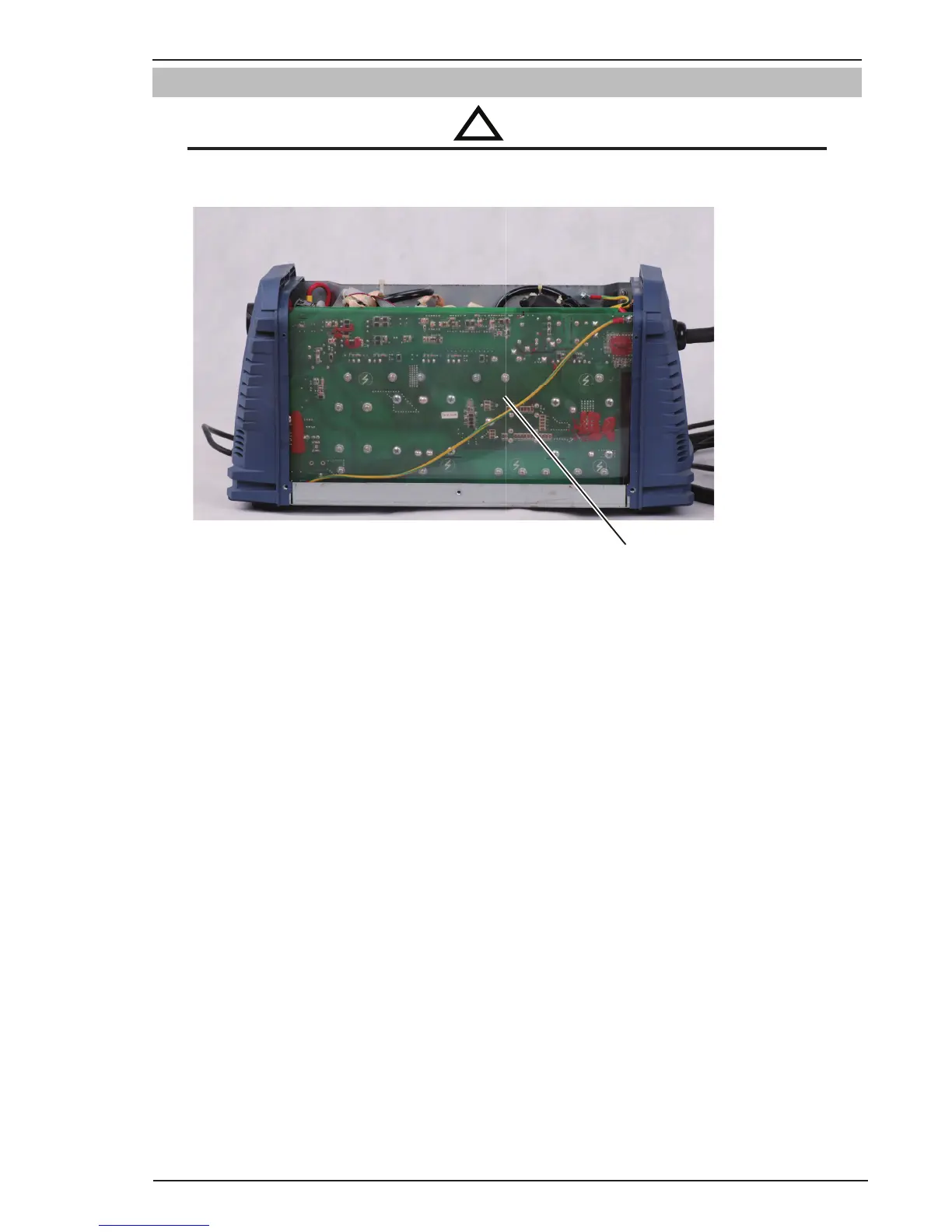

Figure 6-3 Clear Protective Sheet Removal View
2. Visually inspect the inside of the Power Source. The levels of current present in these units can cause
burning or arcing of PCB, transformers, switches, or rectifier when a failure occurs. Carefully inspect all
components within these units. Look in particular for the following:
a) Loose or broken wires or connectors.
b) Burned or scorched parts or wires or evidence of arcing.
c) Any accumulation of metal dust or filings that may have caused shorting or arcing.
If any parts are damaged, they must be replaced. Refer to the Spare Parts section for a complete list of components
used in the Power Source, as well as how to access and remove the failed parts.
Locate the faulty component(s) then repair or replace where necessary.
