Victor CUTMASTER Service Manual

CUTMASTER 10MM, 12MM
TORCH SERVICE 6T-2 Manual 0-5230

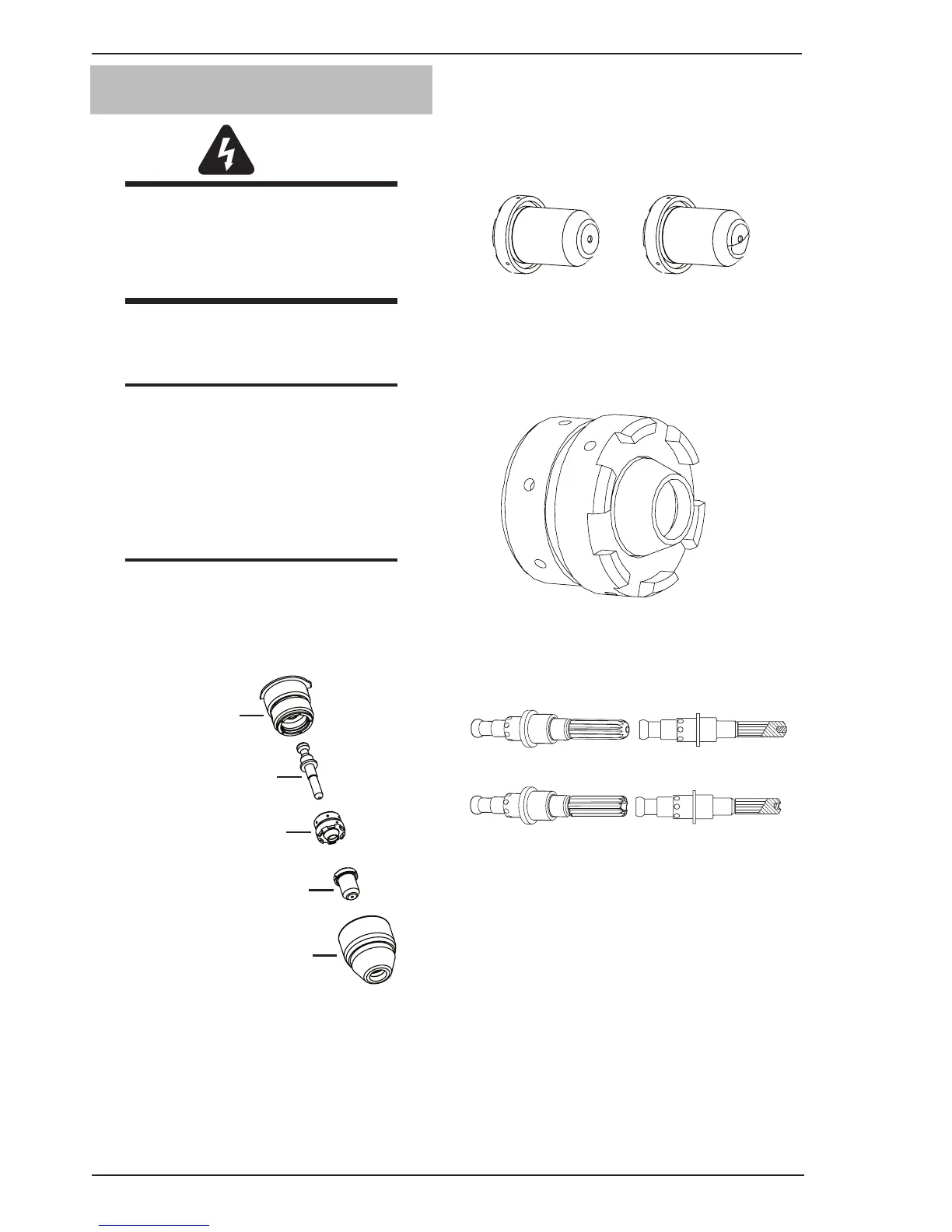

6T.02 Inspection and Replacement
of Consumable Torch Parts
WARNING
Disconnect primary power to the system be
-
fore disassembling the torch or torch leads.
DO NOT touch any internal torch parts while
the AC indicator light of the Power Source
is ON.
Remove the consumable torch parts as follows:
NOTE
The shield cup holds the tip and starter
cartridge shield cup in place. Position the
torch with the shield cup facing upward to
prevent these parts from falling out when
the cup is removed.
1. Unscrew and remove the shield cup from the
torch.
NOTE
Slag built up on the shield cup that cannot
be removed may effect the performance of
the system.
2. Inspect the cup for damage. Wipe it clean or
replace if damaged.
Art# A-09345
Electrode
Start Cartridge
Tip
Shield Cup
Torch Head
Figure 6T-3 - Consumable Parts
3. Remove the tip. Check for excessive wear (in-
dicated by an elongated or oversized orifice).
Clean or replace the tip if necessary.
Good Tip
Worn Tip
A-09791
Figure 6T-4 - Tip Wear
4. Remove the starter cartridge. Check for
excessive wear, plugged gas holes, or discol-
oration. Check the lower end fitting for free
motion. Replace if necessary.
Art A-09792
Figure 6T-5 - Start Cartridge
5. Pull the electrode straight out of the torch
head. Check the face of the electrode for
excessive wear. Refer to Figure 5-6.
Worn Electrode
New Electrode
Art # A-03284
Figure 6T-6 - Electrode Wear
6. Reinstall the electrode by pushing it straight
into the torch head until it clicks.
7. Reinstall the desired starter cartridge and tip
into the torch head.
8. Hand tighten the shield cup until it is seated
on the torch head. If resistance is felt when
installing the cup, check the threads before
proceeding.
