CUTMASTER 10MM, 12MM OPERATION
Operation 4-2 Manual 0-5230
4.02 Preparations for Operating
At the start of each operating session:
WARNING
Disconnect primary power at the source before assembling or disassembling Power Source, torch
parts, or torch and leads assemblies.
NOTE
All consumables must be correctly installed and maintained to ensure correct operation.
A. Torch Parts Selection
Check the torch for proper assembly and appropriate torch parts. The torch parts must correspond with the
type of operation, and with the amperage output of this Power Source (40 amps maximum). Use only genuine
Thermal Dynamics parts with this torch.

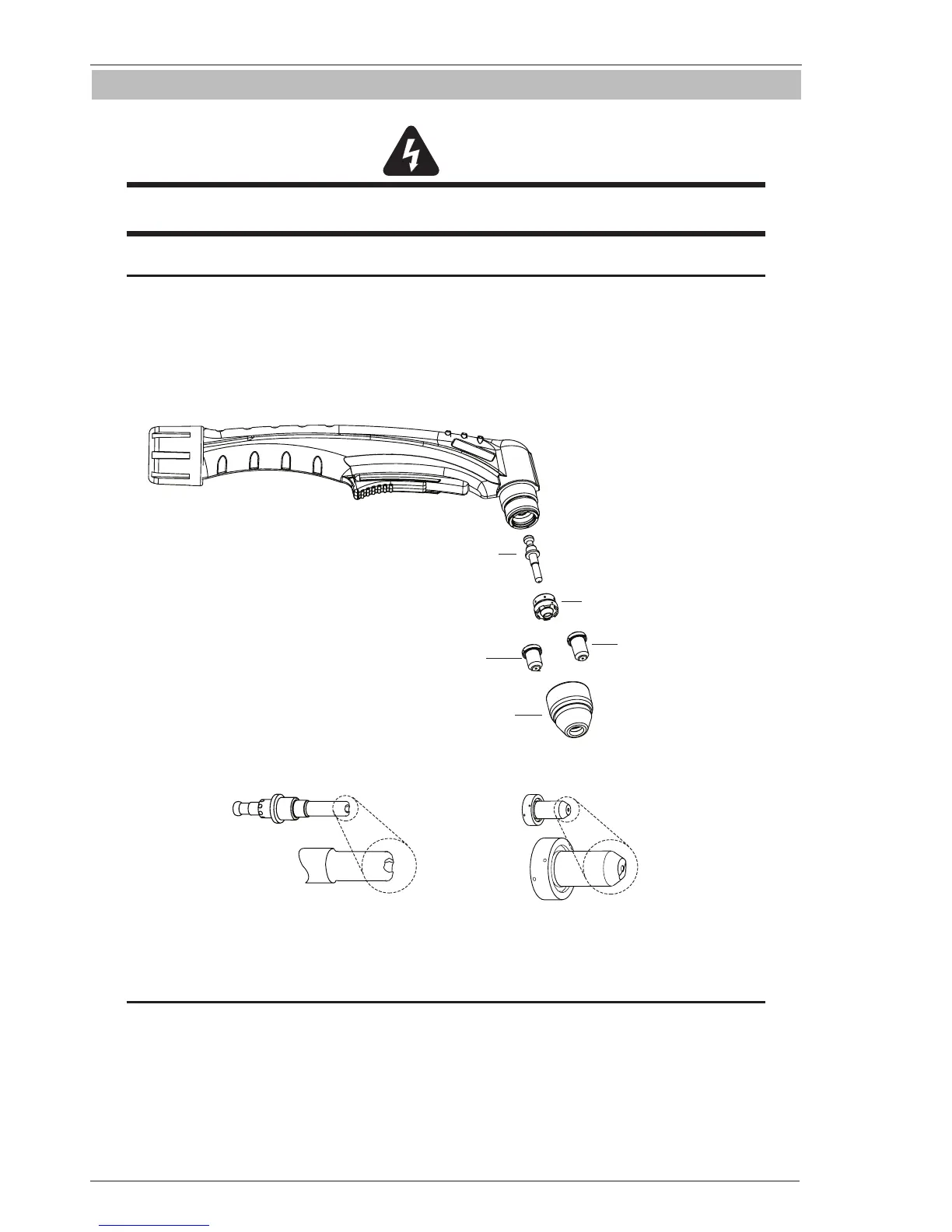

Art # A-10224
Start Cartridge,
Part No. OTD9/8213
Electrode, OTD9/8215
Worn Electrode
Worn Tip
40 Amp Drag Tip,
Part No. OTD9/8207 (fitted)
Shield Cup, Part No. OTD9/8218
40 Amp
Standoff Tip,
Part No. OTD9/8208
Figure 4-3 - SL60 Torch Parts
NOTE
When operating the torch in a normal condition, some gas vents through the gap between the shield
cup and torch handle. DO NOT attempt to over tighten the shield cup as irreparable damage to internal
components may result.
