WAGNER Prima Sprint Airfluid User Manual

111
Prima Sprint.
P_00932
1
2
4
3
P_00931
P_00930
1
2
OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835

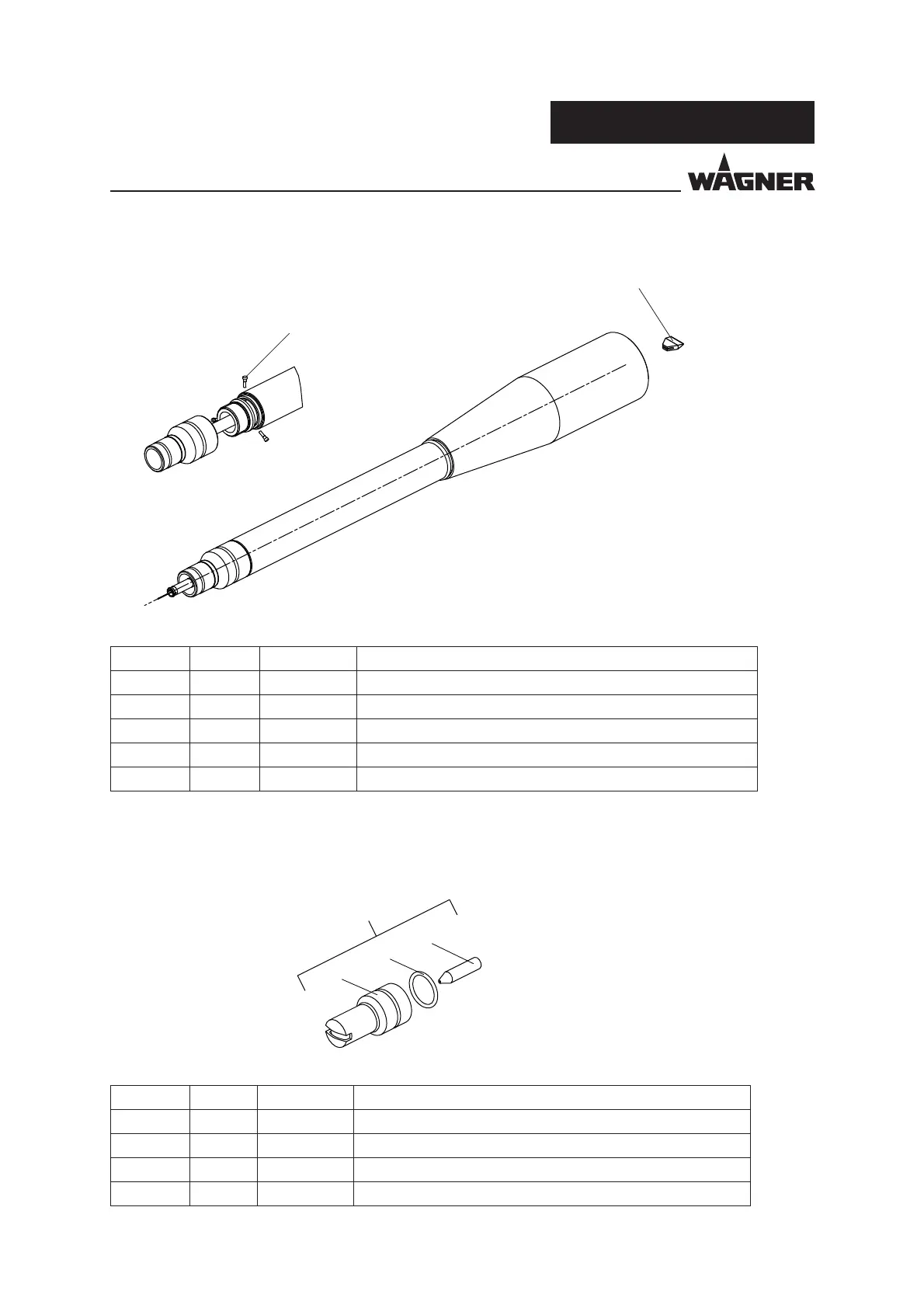

10.12 C4-VL 150/300/500 S CORONA GUN EXTENSION
not FM approved
10.13 C4-VL FAN SPRAY NOZZLE
Item K Quantity Order No. Description
1 1 390978 C4-VL fan spray nozzle (complete)
2 1 390116 C4-VL fan spray nozzle
3 1 390448 Atomizer sleeve
4 1 9971018 O ring
Item K Quantity Order No. Description
1 2308703 C4-VL 150 S gun extension(150 mm; 5.91 inches)
1 390977 C4-VL 300 S gun extension (300 mm; 11.81 inches)
1 2301006 C4-VL 500 S gun extension (500 mm; 19.86 inches)
1
◆
3 2305164 C4 VL centring pin
2
◆
1 390310 Protective wedge
◆ Wearing part
