OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835
6.2 STARTING UP THE MANUAL SYSTEM
To turn the power supply of the manual powder system on, set the mains switch on the
rear A of the control unit to position “I“.
● After dew seconds the control unit is operational.
● The system switches to program 1 “surface parts“ after every restart.
● To switch the manual system off or on, actuate the “standby“ push button 2.
Hint:
● The fluid air must be adjusted using the throttle 3, when commissioning the manual
system.
● The control unit automatically recognizes the type of gun connected.
● There are 50 programs available for the spray gun.
● When a Tribo gun is connected, the Tribo current scale is activated, while the
high-voltage supply and control unit are deactivated.
● All airs are only switched on once the trigger has been operated.

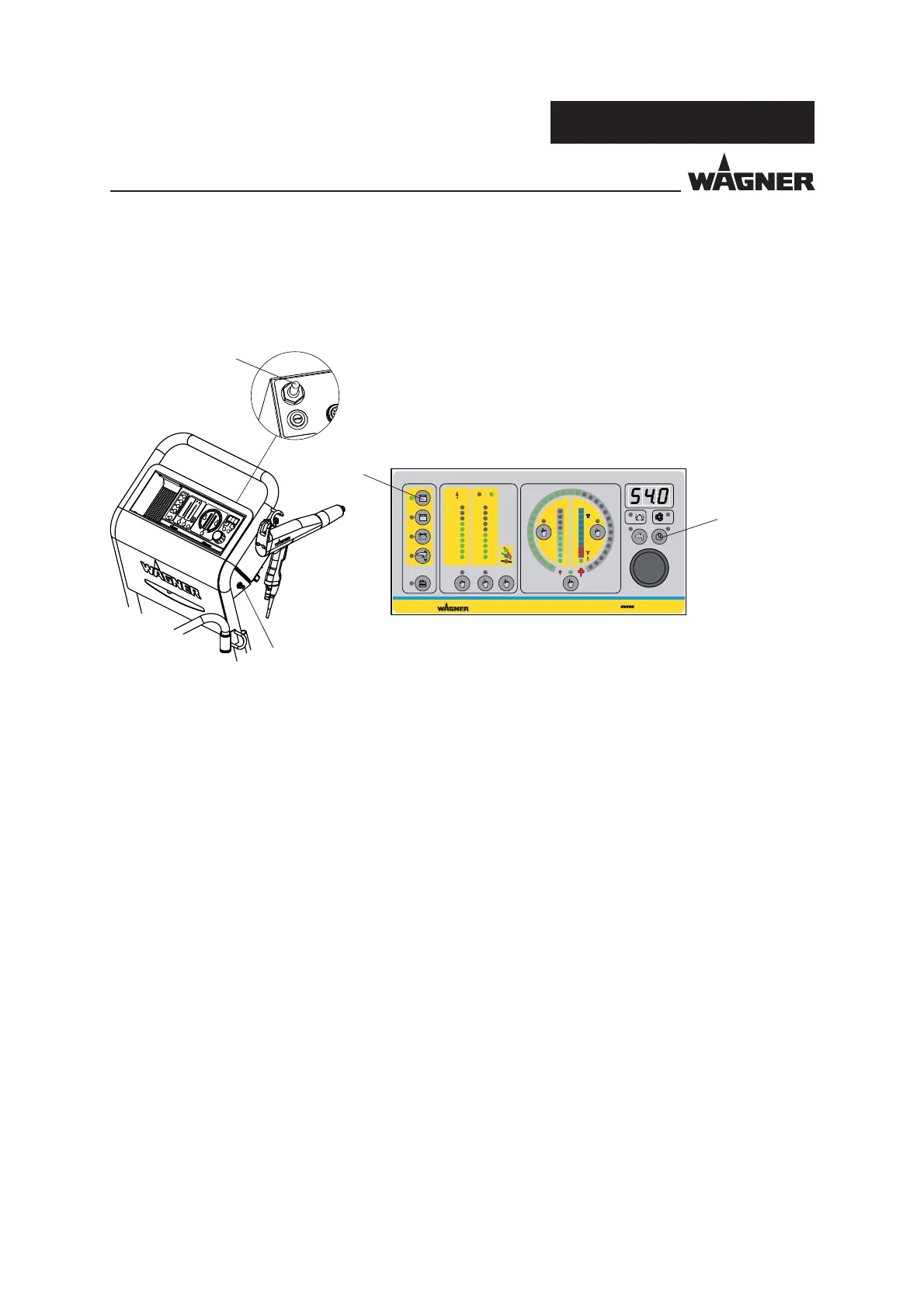

6.2.1 SWITCHING ON THE MANUAL SYSTEM
3
2
1
A
