70
Prima Sprint.
1
2
3
5
P_00591
P_00592
P_00593
OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835

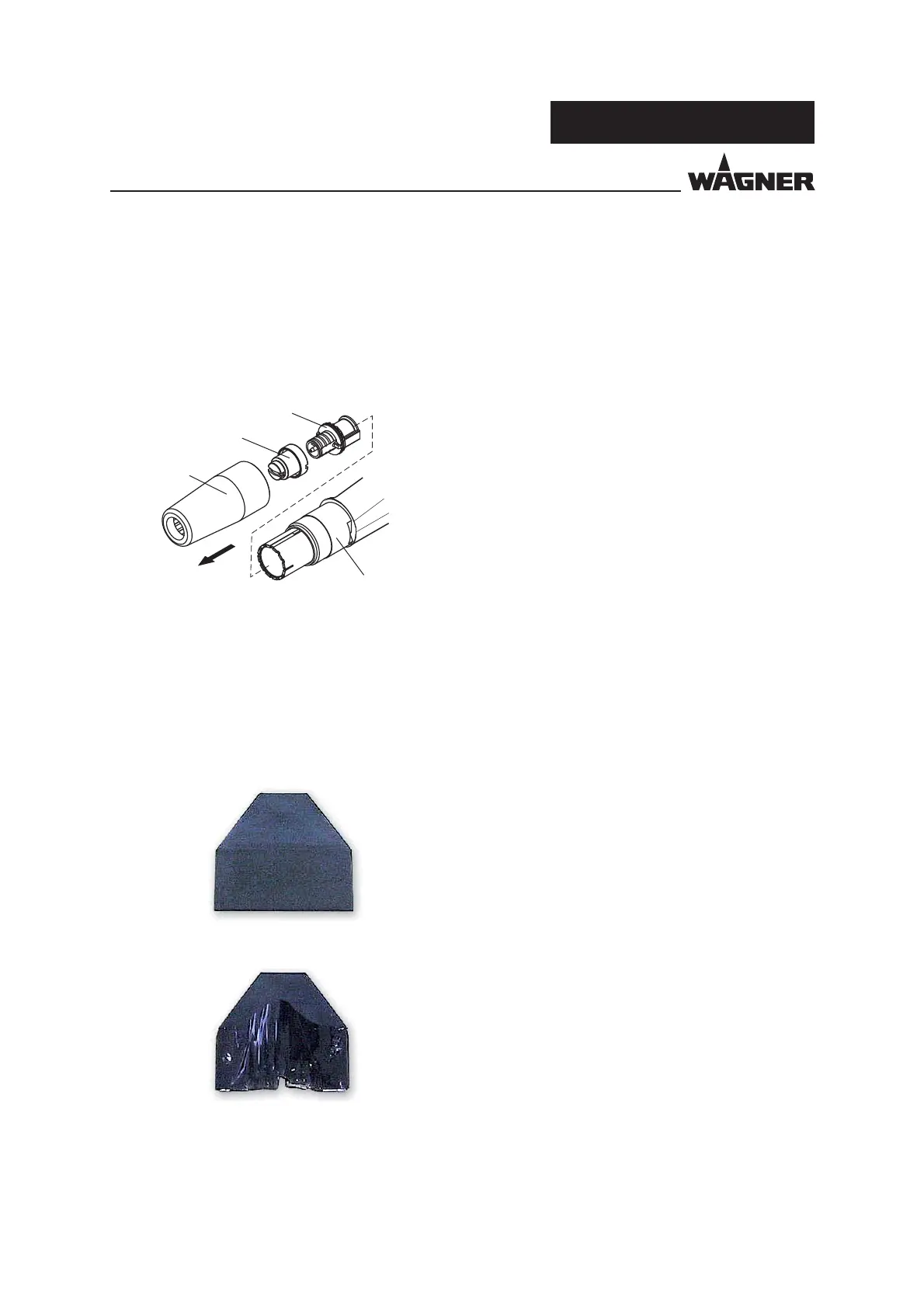

7.2.2 CLEANING THE SPRAY GUN AND DISMANTLING THE FAN SPRAY NOZZLE
Procedure:
1. Unscrew the outer nut 1 from the spray gun
housing 5.
2. Pull the fan spray nozzle 2 off the electrode
holder 3.
3. Carefully pull the electrode holder 3 out of the
spray gun housing 5.
Hint:
Do not damage the electrode holder, when pulling
out and inserting.
4. Remove powder residue from the parts removed
and from the spray gun.
Hint:
Never place the spray gun or parts of the spray gun in
cleaning agent.
As a rule you only need to check the protective wedge
for wear and replace it as necessary.
New protective wedge
Worn protective wedge
We recommended replacing the protective wedge.
In the next section it is described how the protective wedge is to be dismantled and
inserted.
