Prima Sprint.
2
6
8
1
P_01148
3
4
7
5
9
P_01149
10
17
%
0
10
20
30
40
50
60
70
80
90
100
Ø
12
10
11
9
8
m /h
5.0
4.0
3.0
2.0
6.0
3
5.5
4.5
3.5
2.5
2.2
m
/h
4.0
3.0
2.0
1.0
0.5
0.4
0.3
0.2
0.1
1.5
P_01137
E
P
G
SPRIN
T
OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835

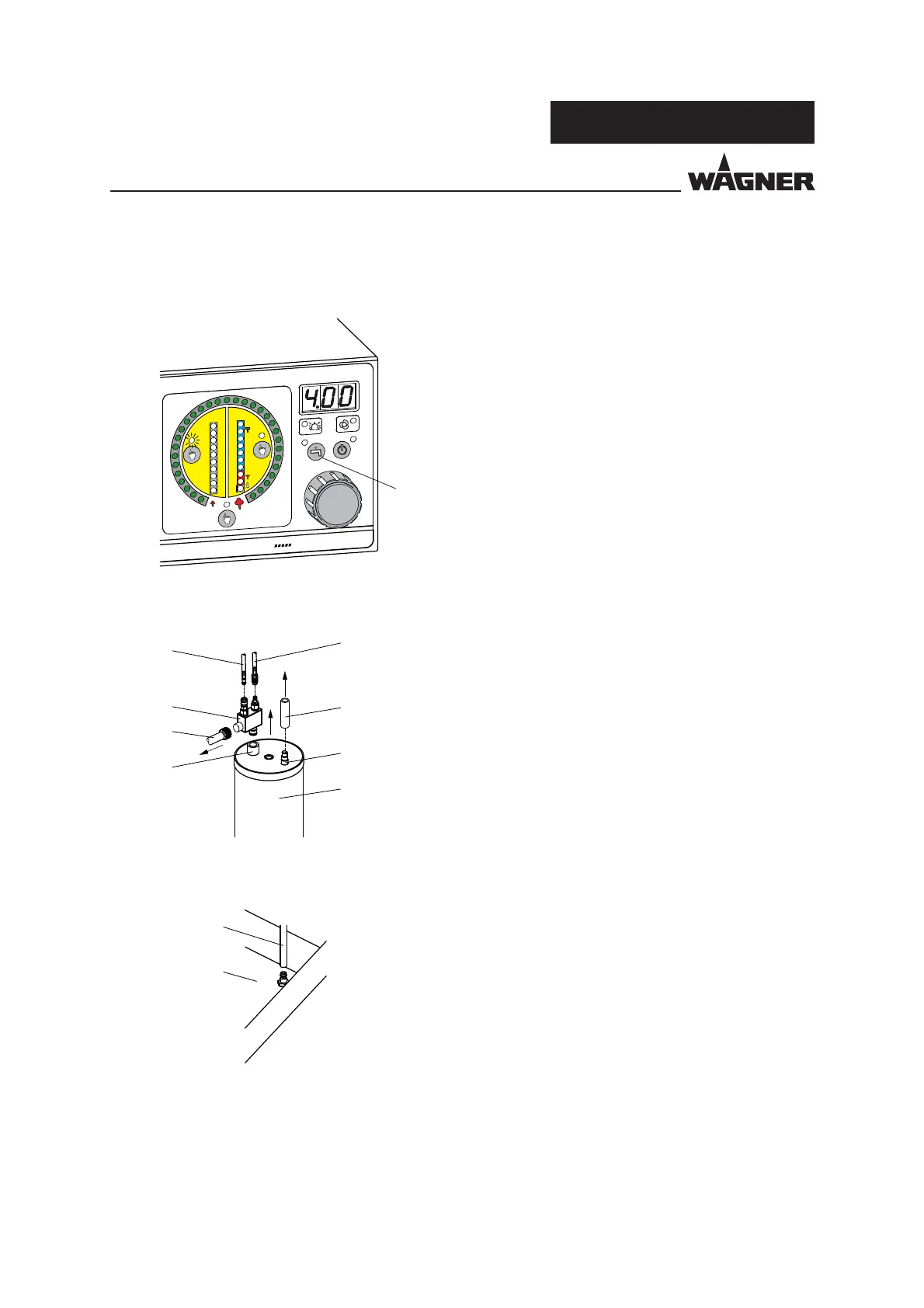

Procedure:
1. Release the trigger on the spray gun.
● The high-voltage and the powder feed are
deactivated.
2. Remove the injector 1 from the holder 2.
3. Guide the gun into the spray booth and start the
purge function by pressing the “rinse“ button 17.
The injector and hoses are purged.
4. Switch off the control unit.
5. Release the outer nut on powder feed hose 3 and
disconnect powder feed hose 3 from injector 1.
6. Disconnect the red feed air hose 4 from the injector
1.
7. Disconnect the blue dosage air hose 5 from the
injector 1.
8. Check the injector for wear and replace worn parts.
The wear and spare parts can be found in the
Operating manual of the powder injector.
9. Loosen the exhaust air hose 6 from the connection
7 of the powder container 8.
10. Pull the black fl uid air hose 9 off the vibrator table
10.
11. Release the fi xing screw on the powder container 8
and remove powder container 8 from the vibrator
table.
12. Open the lid of the powder container to empty the
powder container and thoroughly blow out the
powder container.
13. Completely remove all residual powder from the
suction system.
14. Pay special attention when cleaning the fl uid base,
check it for blockage or damage and replace it if
necessary. The wear and spare parts can be found in
Chapter “Spare parts“ of this Operating manual.
7.1.3 3L CONTAINER VERSION
