WAGNER Prima Sprint Airfluid - Preparations for Starting Up; Assembling the Equipment Trolley

20
Prima Sprint.
2
1
P_01153
25Nm;
18.44lb ft
OPERATING MANUAL
VERSION 07/2009
ORDER NUMBER DOC 2305835
5 PREPARATIONS FOR STARTING UP
WARNING
Incorrect installation/operation!
Risk of injury and damage to equipment
 When putting into operation and for all work, read and follow
the operating instructions and safety regulations for the addi-
tionally required system components.
SIHI_0050_GB

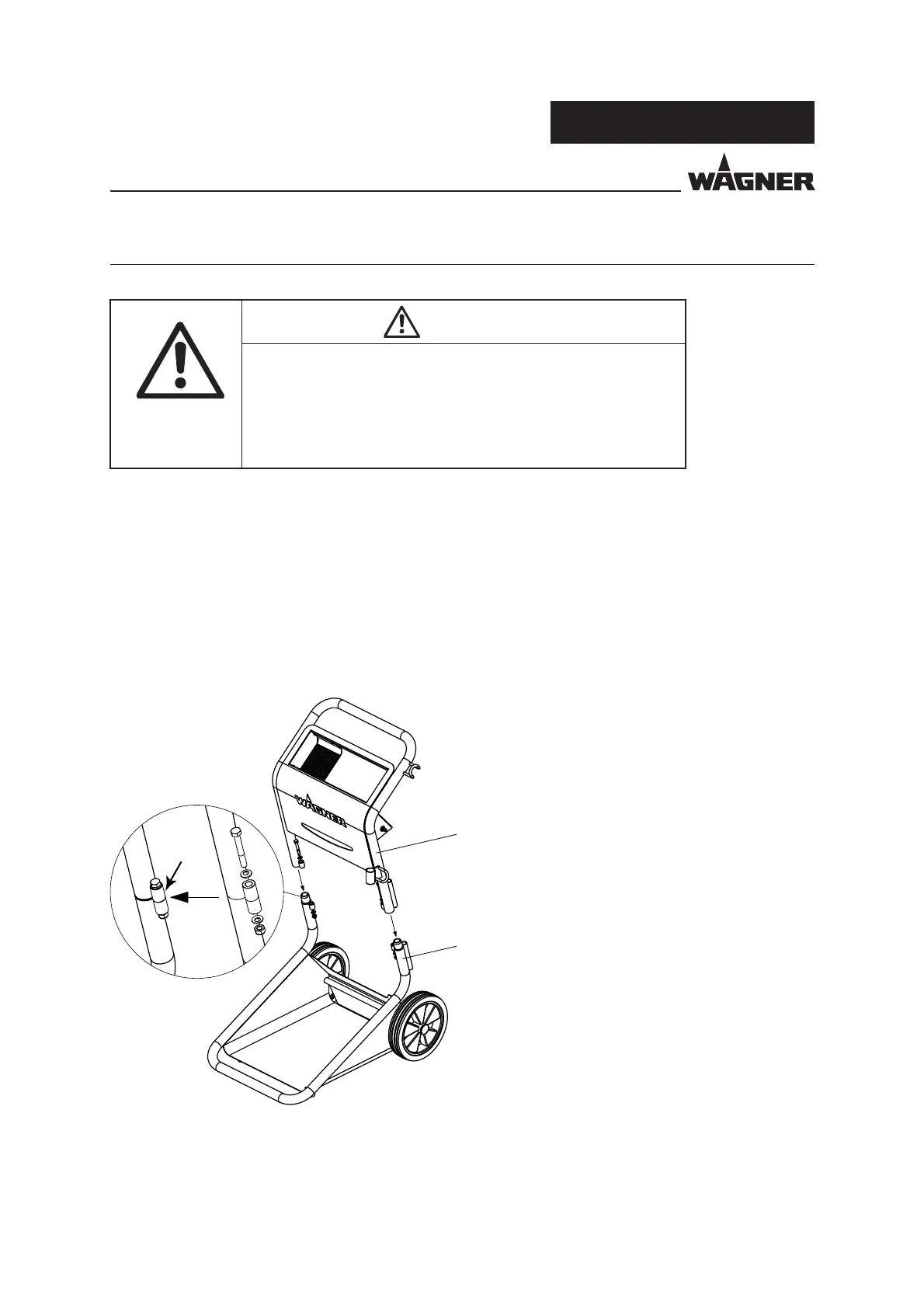

5.1 ASSEMBLING THE EQUIPMENT TROLLEY
The manual system‘s trolley is supplied unassembled for reasons associated with transport.
It must be assembled as described below.
Procedure:
1. Open transport packaging with care and
carefully take all single parts out of
packaging.
2. Place lower trolley section 1 on a clean, level
surface.
3. Place upper trolley section 2 on the two
guide sleeves on lower trolley section 1,
press down gently until stop is reached and
use nuts and bolts (see details) to screw to
lower trolley section (tightening torque
25 Nm; 18.44 lb ft).
