78
Prima Sprint.
P_00926
1
4
2
3
4
4
6
5
P_01100
OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835
7.2.7 REPLACING THE PROTECTIVE WEDGE IN THE SPRAY GUN EXTENSION
Hint:
To ensure that the protective wedge is not damaged when dismantling and inserting them,
a wedge tool is available for assembly.
The necessary wear and spare parts are in chapter 10 of this Operating manual.
Procedure:

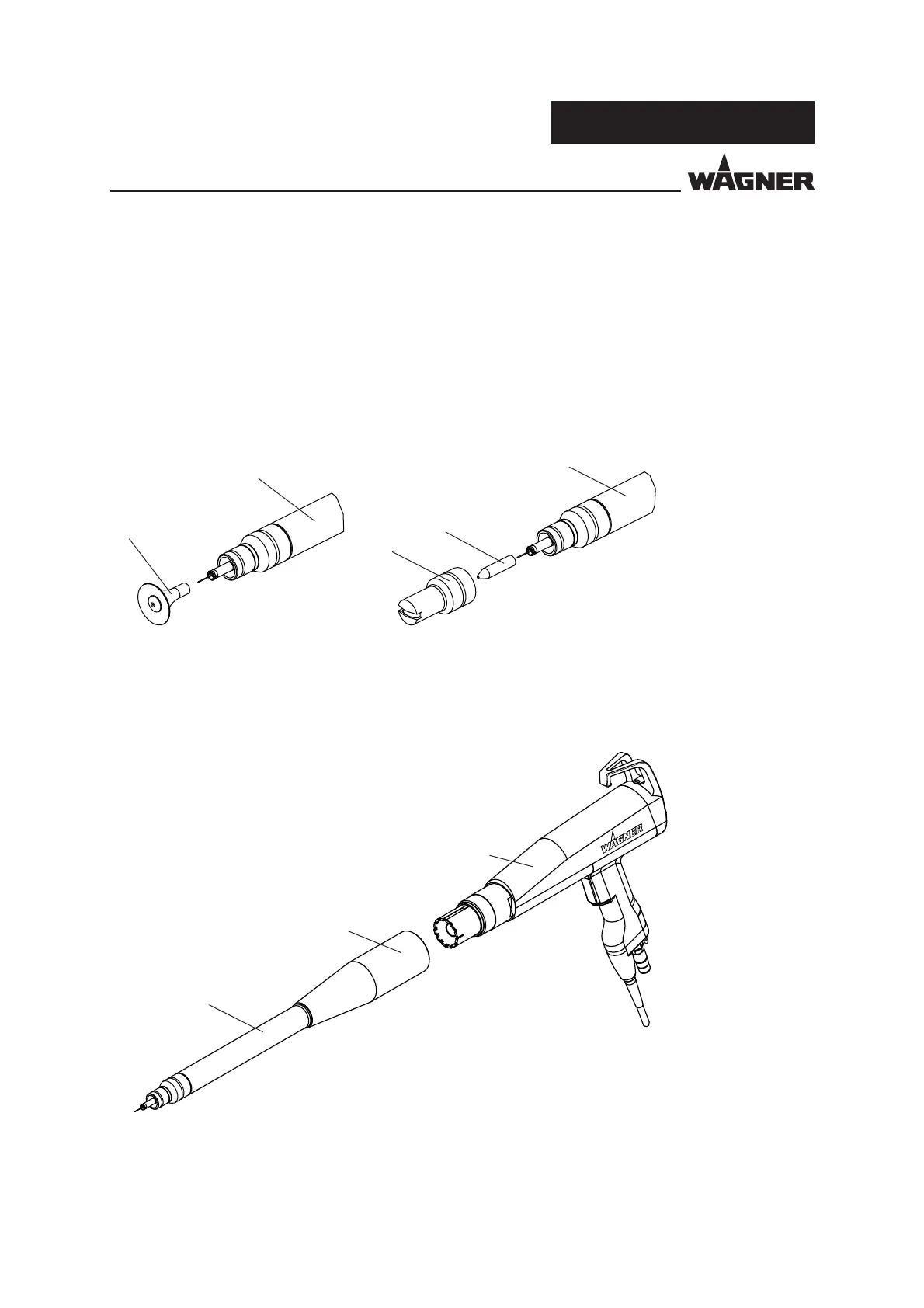

1. Withdraw defl ector cone 1 or fan spray nozzle 2 and atomizer sleeve 3 from the gun
extension 4.
2. Loosen outer nut 5 and pull gun extension 4 off gun housing 6.
