17
OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835
6.9.2 CLEANING PROCESS WHEN USING MULTIPLE POWDER CONTAINERS (60L CONTAINER)
Procedure:
1. Release the trigger on the spray gun.
● The high-voltage and the powder feed are
deactivated.
2. Remove the injector from the holder to stop powder
feed.
3. Guide the gun into the spray booth and start the

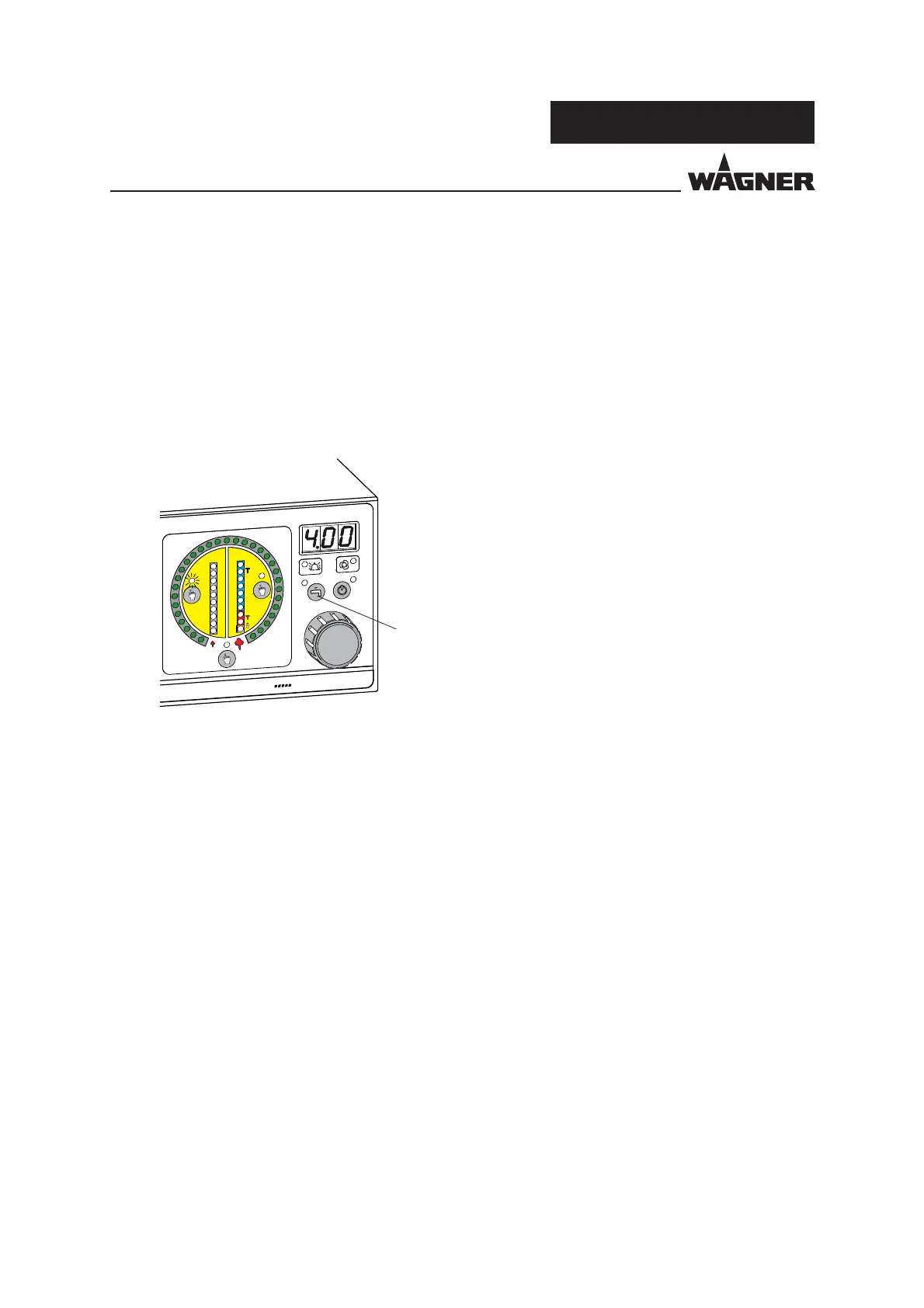

purge function by pressing the “rinse“ button 17.
The injector and hoses are purged.
4. Switch off the control unit.
5. Loosen the powder feed hose from the powder
injector and clean the spray gun and the powder
feed hose thoroughly.
6. Loosen the blue dosage air hose and the red feed
air hose from the powder injector.
7. Disconnect the black fl uid air hose from the powder
container.
8. Loosen the grounding cable from the powder
container.
9. Replace the powder container.
10. Reconnect all the hoses and ground the powder
container by connecting to the grounding cable.
Hint:
Proper fl uidization is not possible with a damaged
and/or clogged fl uid base.
