Prima Sprint.
%
Tribo
Corona
5
4
3
2
1
120
100
80
60
40
30
20
15
10
5
μA
μA
0
10
20
30
40
50
60
70
80
90
100
Ø
12
10
11
9
8
m /h
5.0
4.0
3.0
2.0
6.0
3
5.5
4.5
3.5
2.5
2.2
2x
kV
90
80
70
60
50
40
30
20
10
100
m /h
4.0
3.0
2.0
1.0
0.5
0.4
0.3
0.2
0.1
1.5
EPG
S
PRIN
T
P_01111
OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835

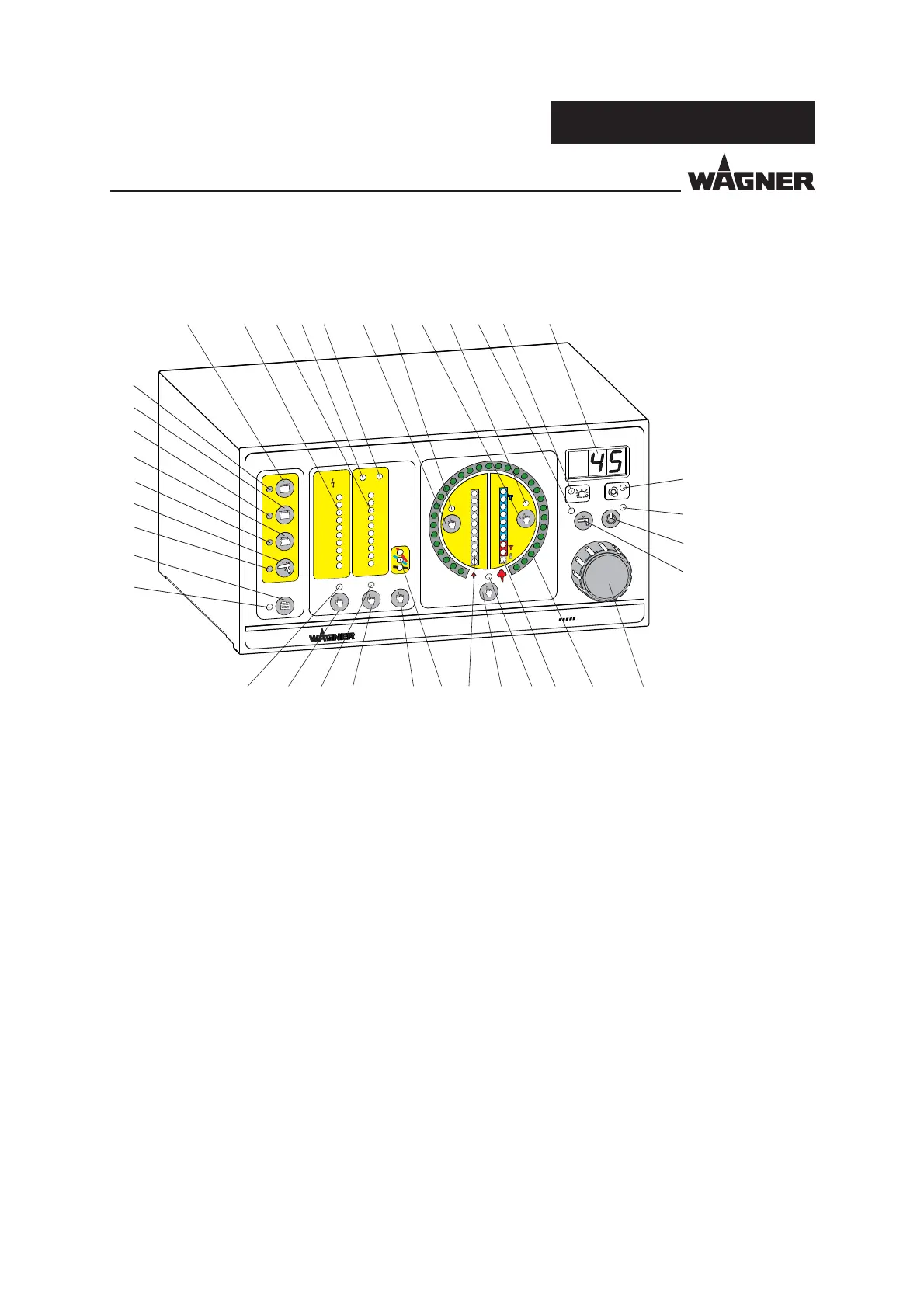

6.1 CONTROL FUNCTIONS AT THE CONTROL UNIT
28 27 30 29 31 32 37 35 2434 36 33
1 2 3 4 20 22 23 18 13 1921
12
8
11
7
10
6
9
25
26
16
17
15
14
5
1 Illuminated display: High-voltage
● Lights up green.
● Display range: 0-100 kV.
Resolution 10 kV.
● Single LED display: Preset value of high-voltage.
● Bar graph LED: Set voltage.
2 Illuminated display: Corona or Tribo current
● Lights up green.
Tribo scale:
● When a Tribo gun is connected and selected.
● Bar graph LED: when powder feed is activated.
● Display range: 0-5 µA
Resolution 0.5 µA
Corona scale:
● When a Corona gun is connected and selected.
● Display and adjusting range: 0 [5]-120 µA,
0 [5]-20 µA, resolution 5 µA
20-40 µA, resolution 10 µA
40-120 µA, resolution 20 µA
● Single LED display: Application point of current limiting.
● Bar graph LED: Corona current.
