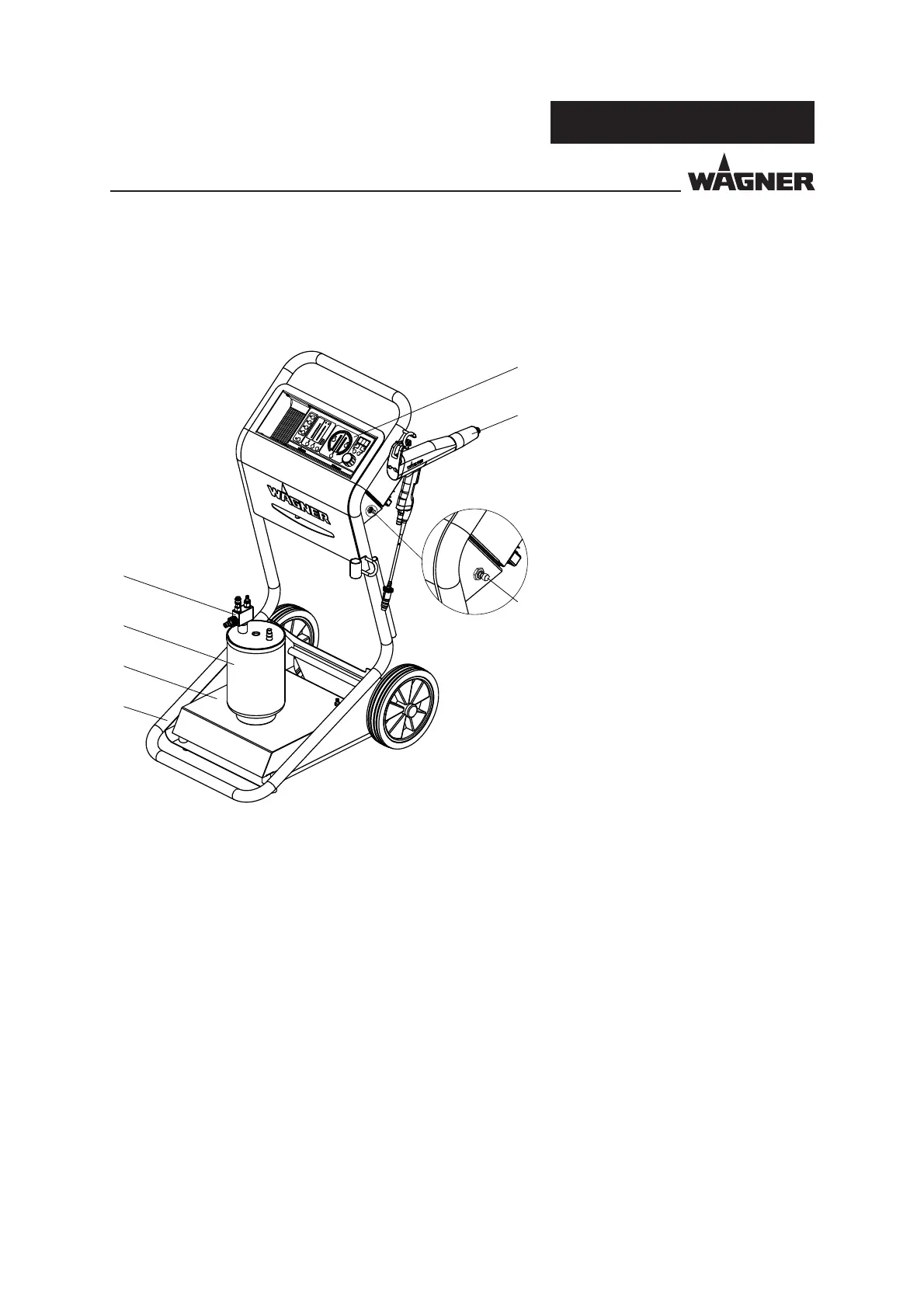

4.5.6 DESCRIPTION OF PRIMA SPRINT 3L CONTAINER
1 Equipment trolley
2 EPG Sprint control unit
3 PEM-C4-Ergo manual gun
4 3L container
5 HiCoat ED Pump-F powder injector
6 Fluid air throttle
7 Vibrator table
Functioning:
Through the powder injector 5 the powder is transported from the container 4 to the spray
gun 3. By feeding fl uid air into the fl uid base of the powder container 4 and the vibration
f the vibrator table 7, a homogeneous powder/air mixture is generated and maintained
during the entire process of the powder feed from the container.
The powder quantity and the electrostatic charge of the colour powder are regulated by
the control unit 2. The fl uid air setting is done using the throttle 6.
Hint:
With this variant, the set values in program nos. 1-4 must be adjusted.
