OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835
7.3 CHECKING THE PEM-T3 TRIBO MANUAL GUN
7.3.1 REPLACING THE SPRAY GUN
Before you commence the replacement of the spray gun any powder residue must be
removed thoroughly.
The wearing parts in the spray gun, marked in the spare parts list, must be regularly
checked and, if necessary replaced.
Procedure:

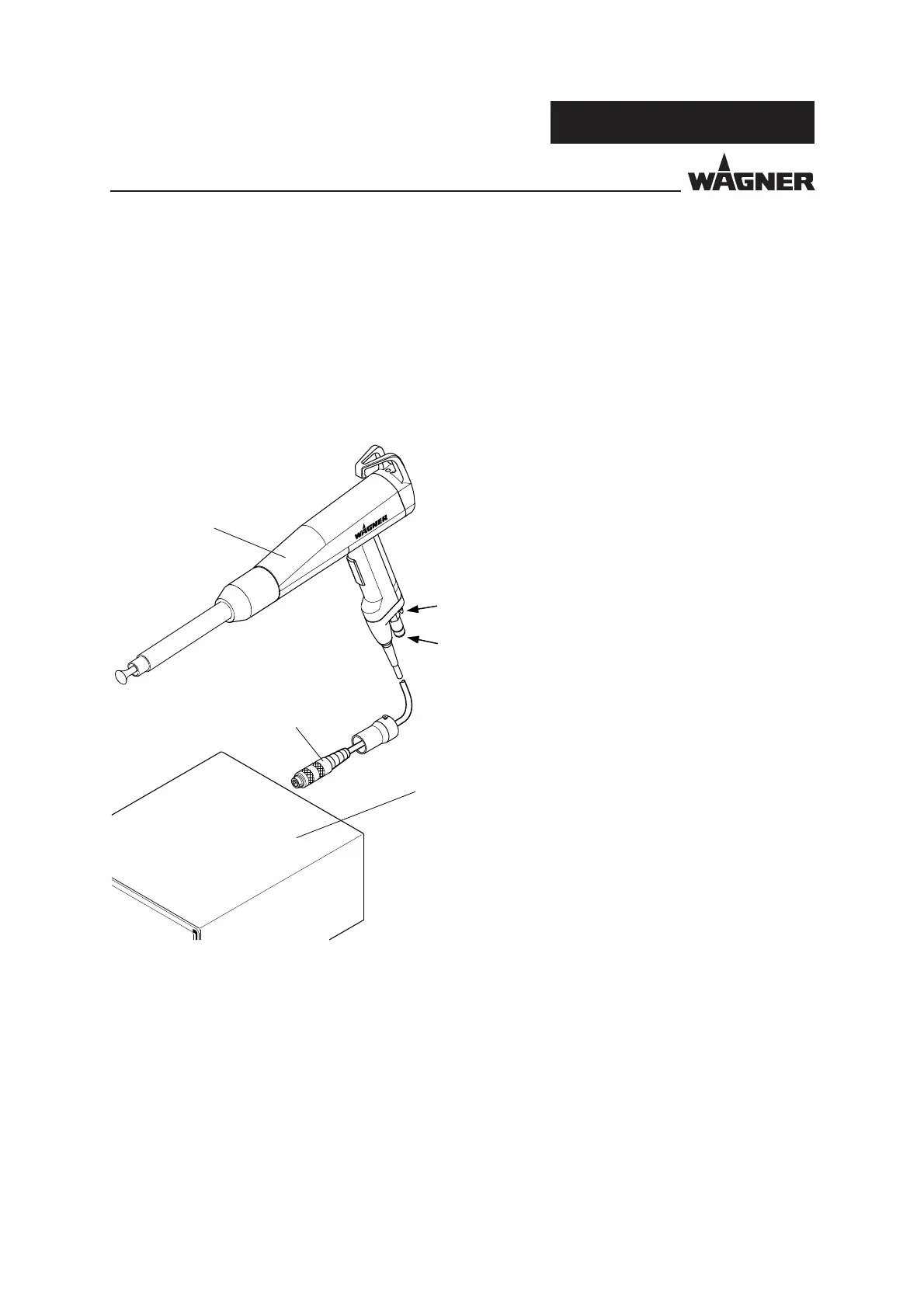

1. Switch off the control unit and/or the
high-voltage generator.
2. Disconnect the electrical cable H from the
control unit J.
3. Disconnect the hoses for powder feed G and
Tribo air F from the spray gun D.
4. Replace the spray gun to be repaired with a
new one and mount it in the reverse order.
