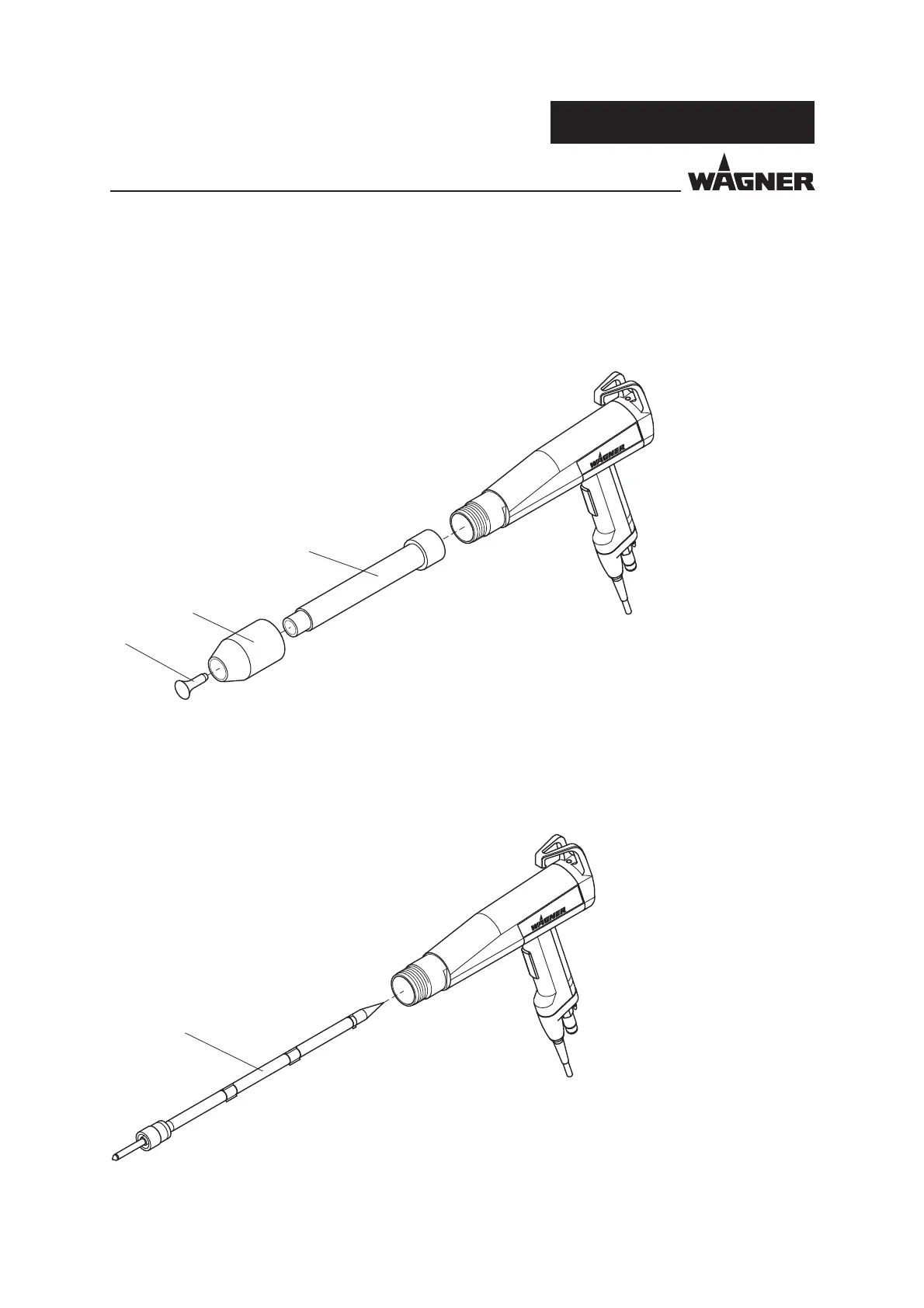

7.3.3 ASSEMBLY OF THE TRIBO GUN EXTENSION
Hint:
Always select a spray gun, which has been thoroughly cleaned when mounting a gun
extension.
We recommend to use a new spray gun.
Procedure:
1. Pull the defl ector cone/fan spray nozzle 1 off the nozzle body 3.
2. Unscrew the outer nut 2 from the gun housing.
3. Pull the nozzle body 3 off the gun housing.
4. Pull the charging body 4 out of the gun housing.
