Prima Sprint.
5
2
P_00717
6
7
1
5
P_00718
OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835

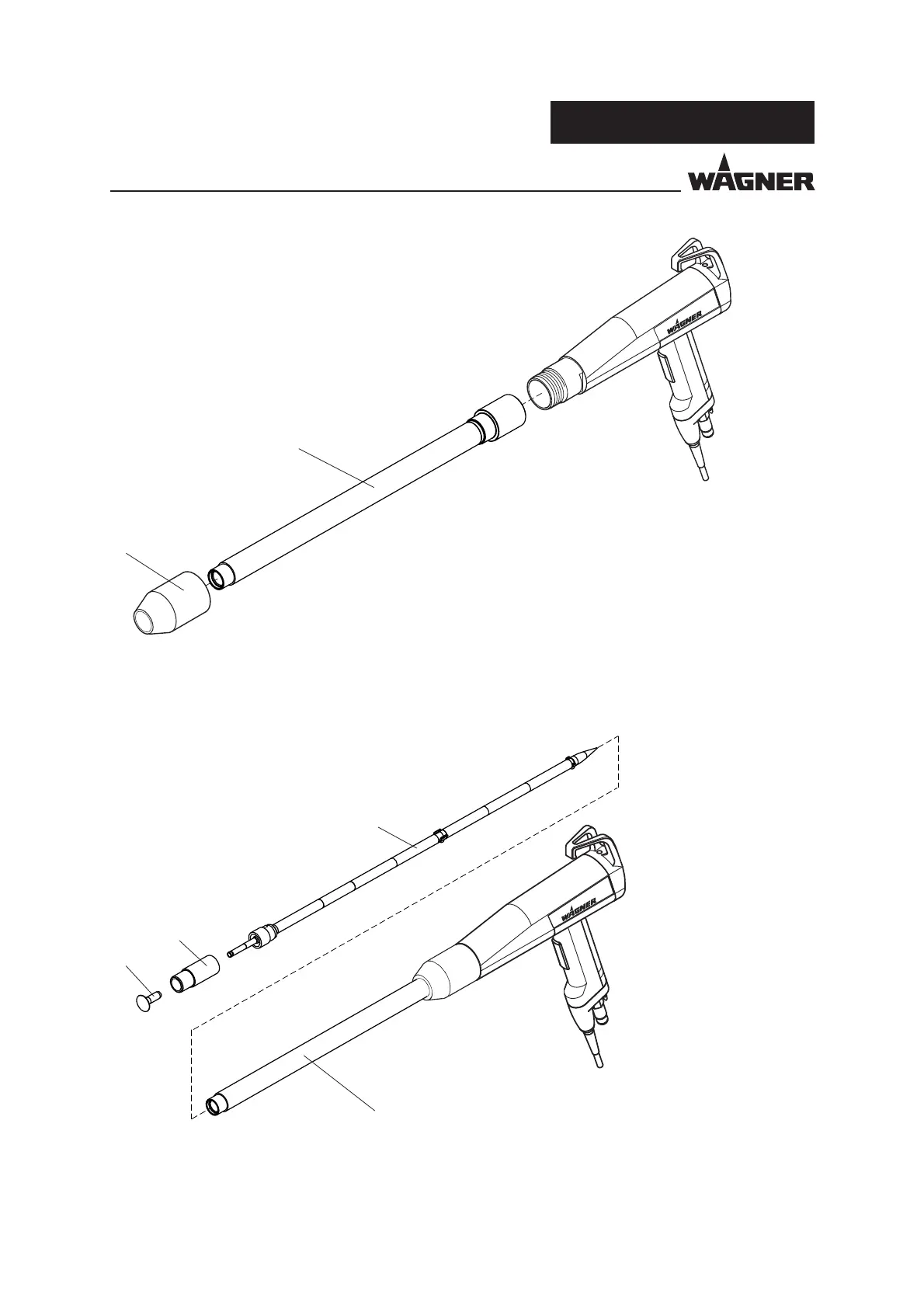

5. Insert outer tube 5 into the gun housing and secure it with outer nut 2.
6. Insert charging body 6 into the outer tube 5 and push it in as far as it will go.
7. Push adapter 7 onto outer tube 5 as far as it will go.
8. Locate defl ector cone / fan spray nozzle 1 onto adapter 7.
