OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835
Functioning:
The feed unit 4 is inserted directly into the original bundle. The powder is fed through
powder injector 5 to powder spray gun 3. Due to the special arrangement of the suction
crown and the vibration of the drum, a homogeneous powder/air mixture is generated
and maintained during the entire duration of the powder feed. The powder quantity and
the electrostatic charge of the colour powder are regulated by the control unit 2. The fl uid
air setting is done using the throttle 6.

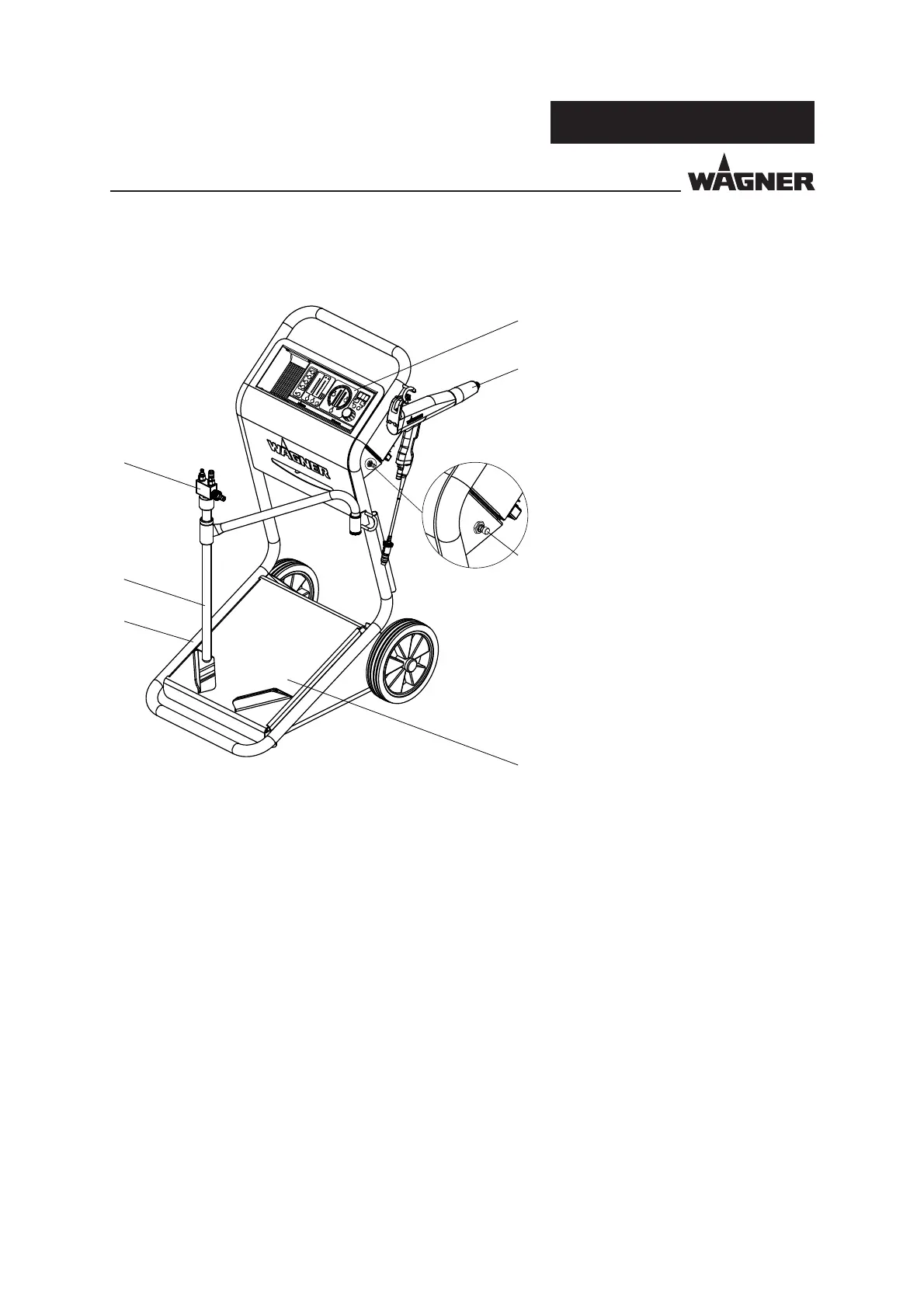

4.5.3 DESCRIPTION OF PRIMA SPRINT AIRFLUID
1 Equipment trolley
2 EPG Sprint control unit
3 PEM-C4-Ergo manual gun
4 ST 550/10 suction tube
5 PI-F1 powder injector
6 Fluid air throttle
7 Vibrator table
