P_00701
OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835
SIHI_05032_ENG

CAUTION
Electrode tip!
Risk of injury.
Take care when fitting the C4 R electrode holder.

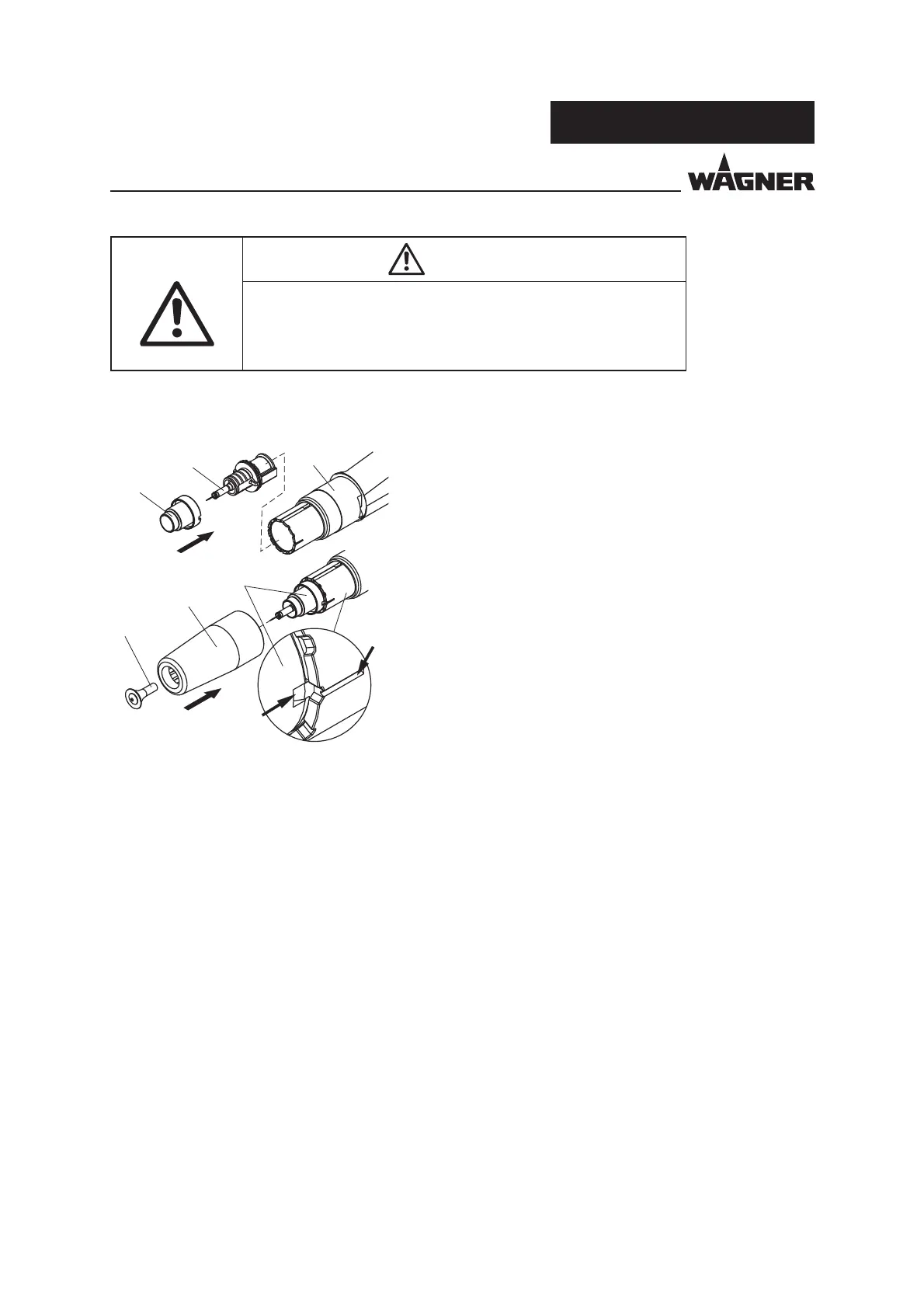

5. Carefully fi t the new C4 R electrode holder 6 into
the spray gun housing 5.
6. Slide the defl ector cone sleeve 7 onto the
electrode holder 6.
7. Align the marks X and Y.
8. Fasten the outer nut 1.
9. Slide the defl ector cone 8 back over the defl ector
cone sleeve 7.
The spray gun is ready for use again.
