OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835

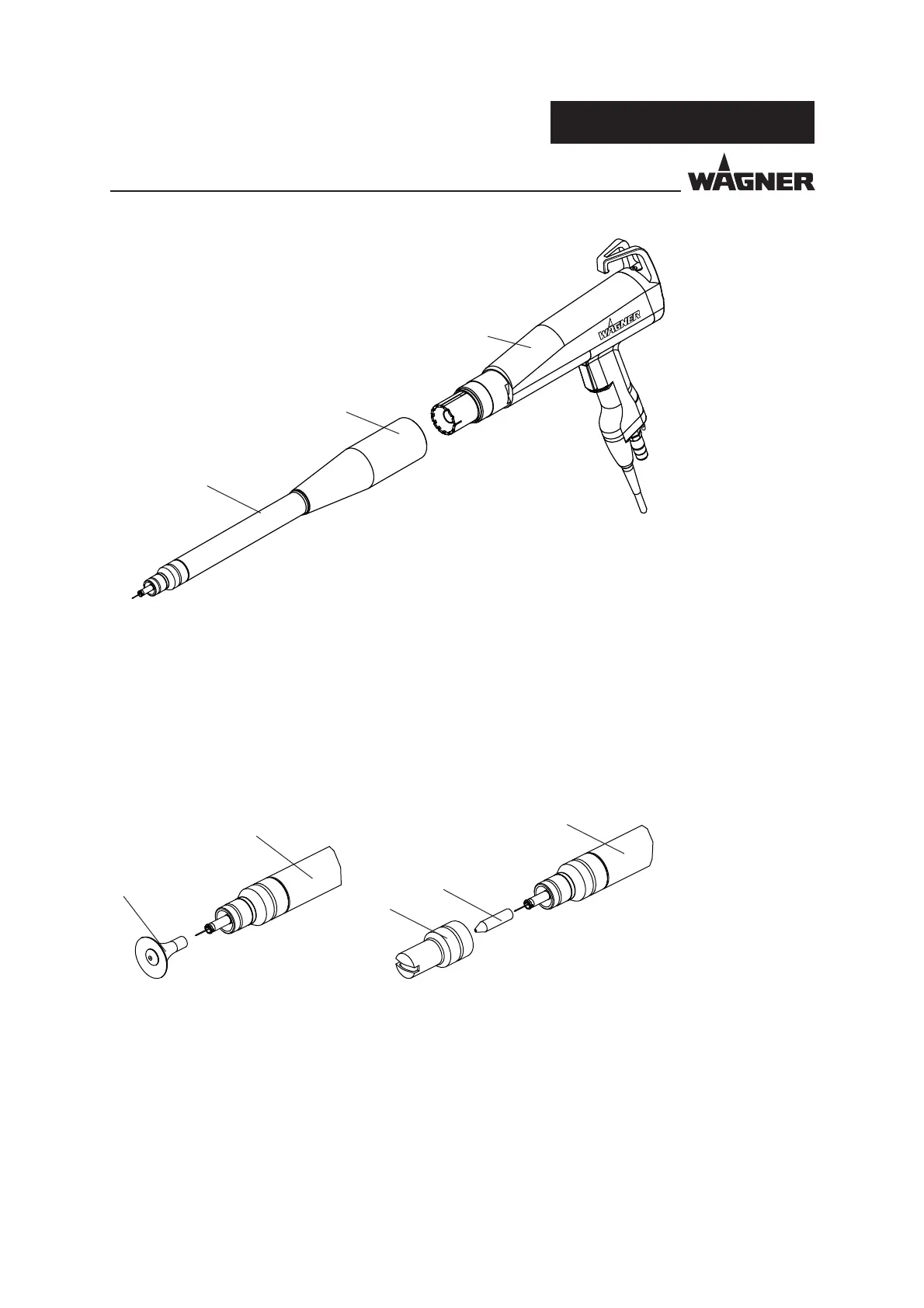

12. Locate gun extension 4 onto the gun housing 6 and tighten the outer nut 5.
13. Secure outer nut 5 again with the O ring. To do this, press the O ring into the groove
again.
14. Depending on the planned usage, either locate defl ector cone 1 or atomizer sleeve 3
and fan spray nozzle 2 carefully on the gun extension 4.
The spray gun is ready for use again.
