93
Prima Sprint.
4
P_01183
P_01184
A
B
C
OPERATING MANUAL
VERSION 07/2009 ORDER NUMBER DOC 2305835

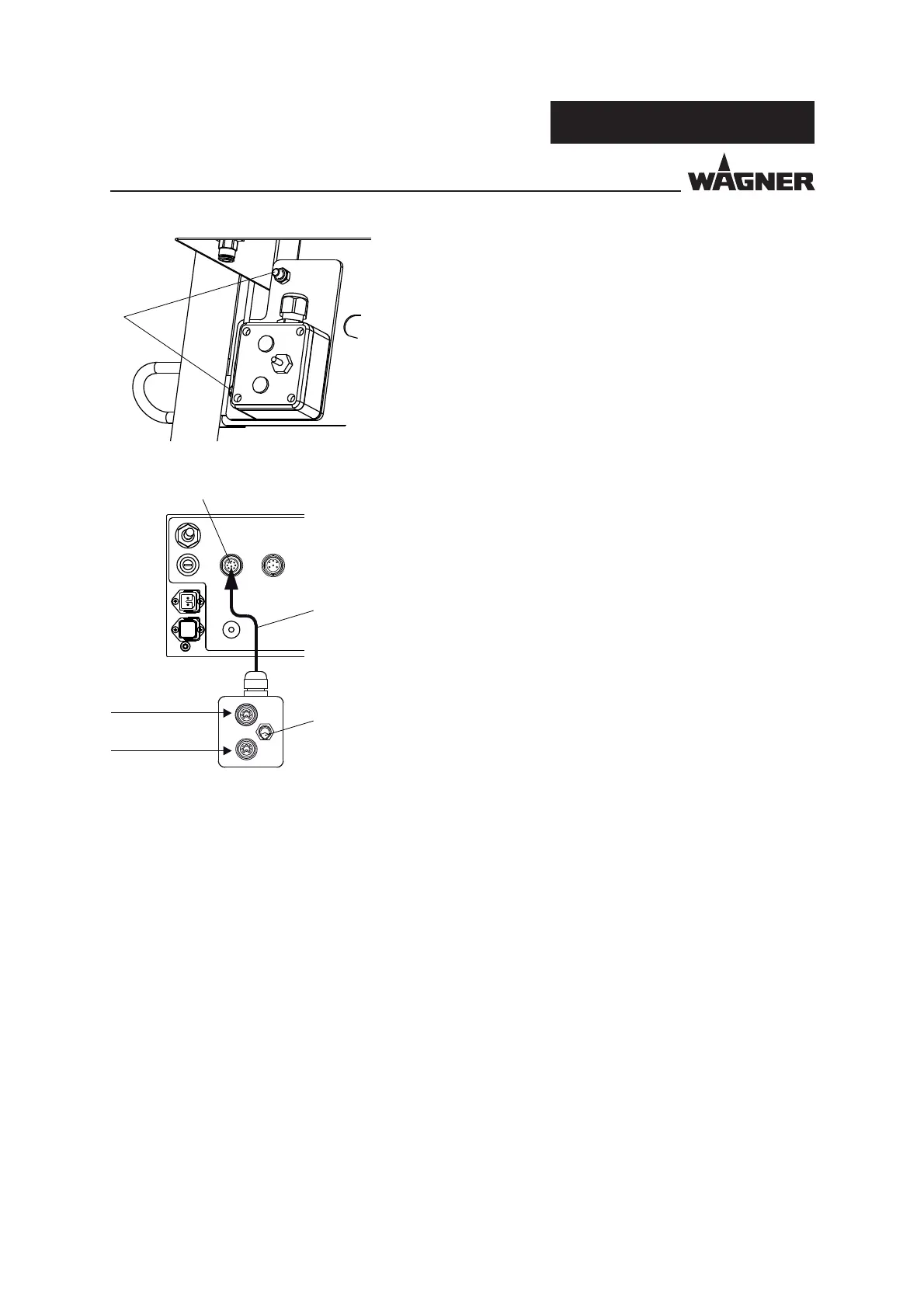

2. Use screws 4 to screw adapter plate
with fi tted switchbox onto rear of
trolley‘s front plate.
Connection for
Corona spray guns
Connection for
Tribo spray guns
3. Pull the spray gun cable out from
socket A on the control unit
4. Put the electrical cable B of the
switchbox into socket A on the
control unit and secure it with the
protective sleeve.
5. Connect the spray gun to the
appropriate connection on the
switchbox and secure it with the
protective sleeve of the spray gun
cable.
6. Set the switch C on the switchbox
to the desired spray gun type.
