5-76 Maintenance Procedures

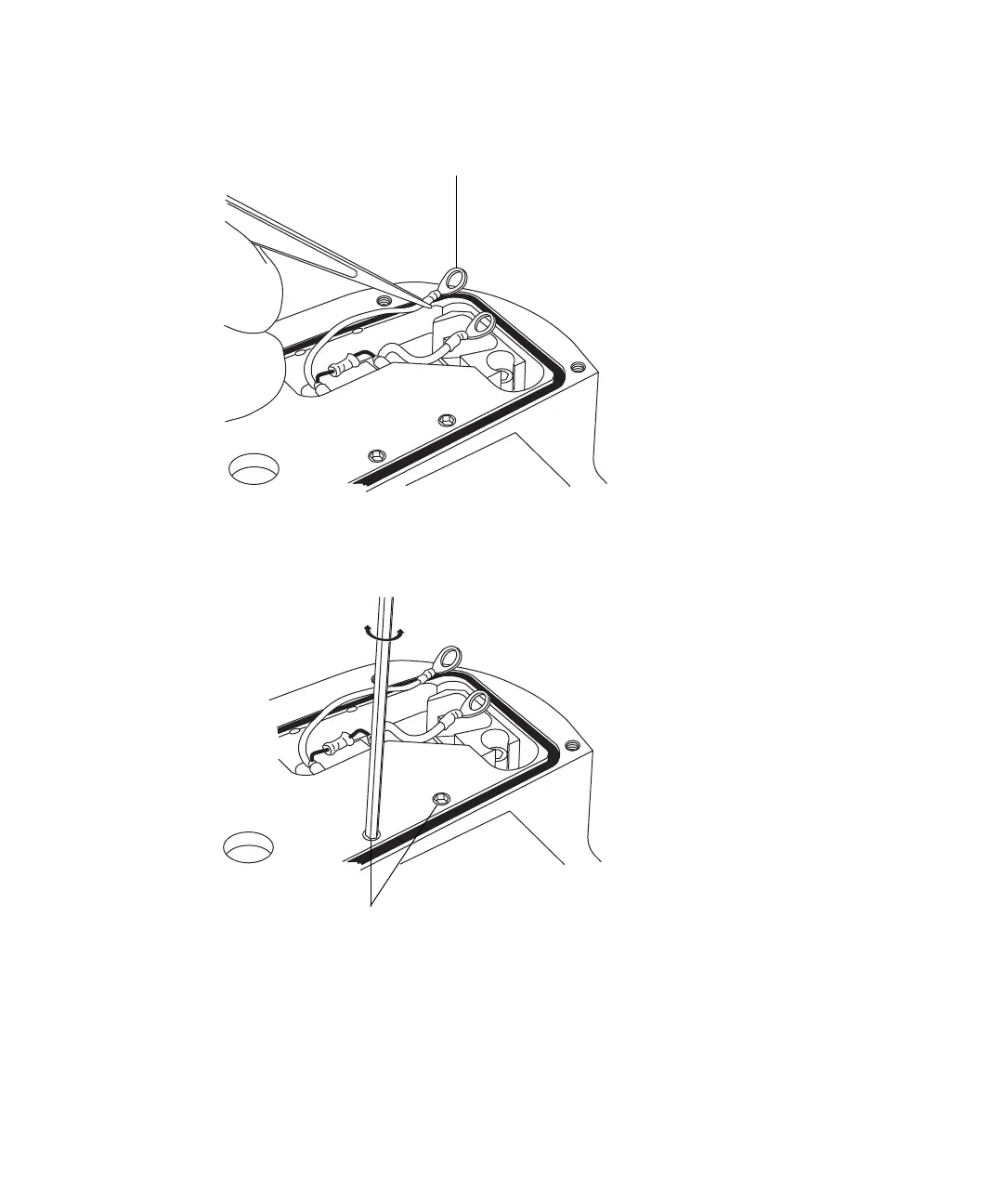

6. Use the needle-nose pliers to carefully swing the ring terminal tags out

of the terminal block.

7. If the 2 set screws securing the heater cartridge to the PEEK terminal

block are fitted, use the 1.5-mm Allen wrench to loosen them.

TP02617

Ring terminal tag

TP02617

Heater cartridge securing set screws
