Waters TQ Detector User Manual

Installing the ESI probe 3-5
5. Secure the ESI probe by tightening the 2 thumbscrews.

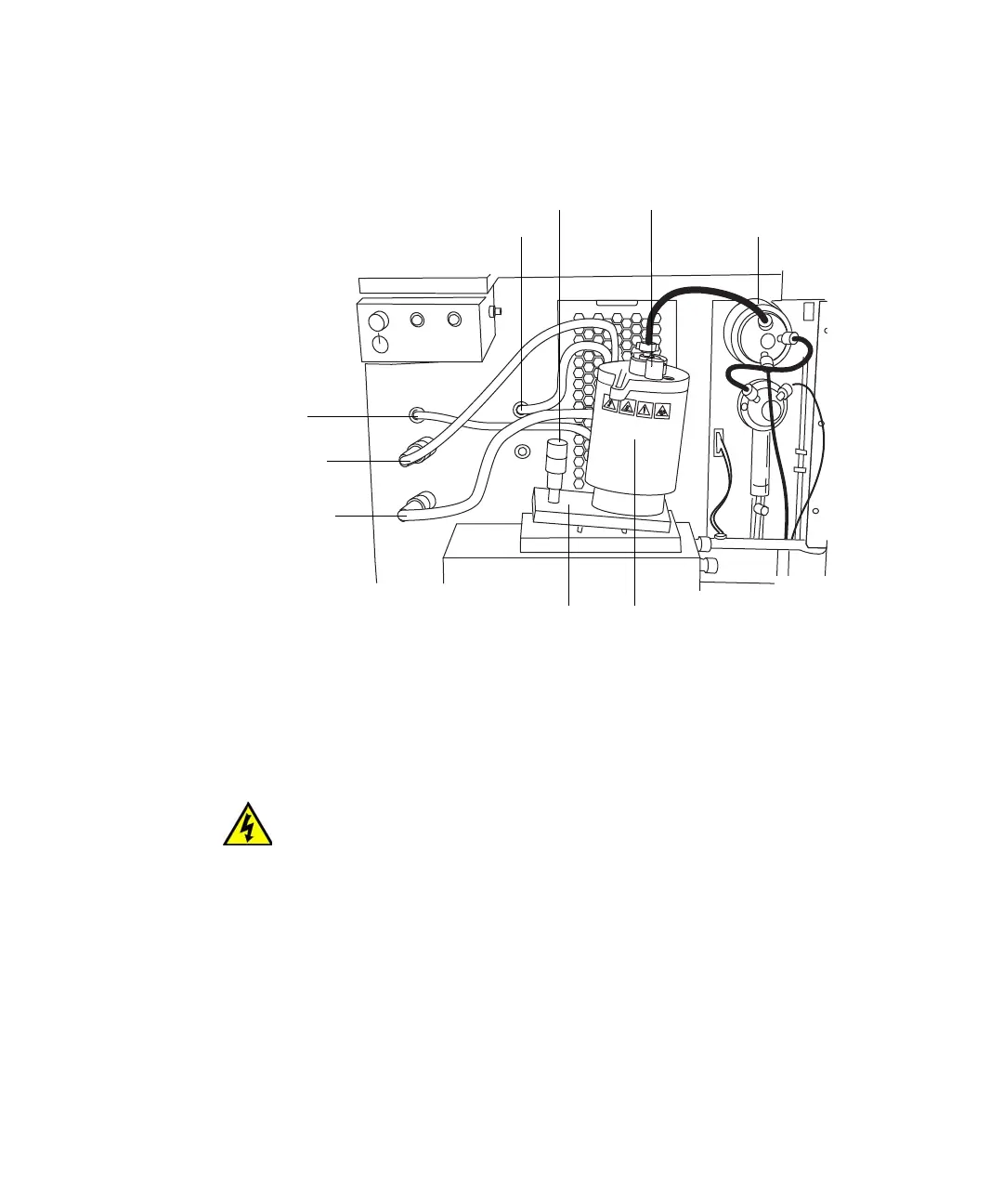

ESI probe mounted on the source enclosure, showing the connections
6. Connect the ESI probe’s PTFE tube to the nebulizer gas connection.
7. Ensure that the probe adjuster assembly’s electrical lead is connected to
the instrument’s probe connection.
8. Connect the ESI probe’s electrical lead to the instrument’s HV
connection.
Warning: To avoid electric shock, do not use stainless steel
tubing to connect the diverter valve to the ESI probe; use the
PEEK™ tubing supplied with the instrument.
POWER
OPERATE
NEBULIZER
HV
APPI
PROBE
DESOLVATION
Thumbscrew
ESI probe
Nebulizer gas connection
Desolvation gas
connection
Probe adjuster assembly
ESI probe
electrical lead
Probe adjuster
assembly
electrical lead
Vernier probe adjuster
Diverter valve
