Cleaning the ion block, isolation valve, and extraction cone 5-31

4. Close the source isolation valve (see “Operating the source isolation

valve” on page 5-8).

5. Disconnect the PTFE tube from the cone gas assembly connection tube.

6. Use the 6-mm Allen wrench to unscrew and remove the 2 ion block

assembly securing screws and associated washers.

7. Remove the ion block assembly from the PEEK ion block support.

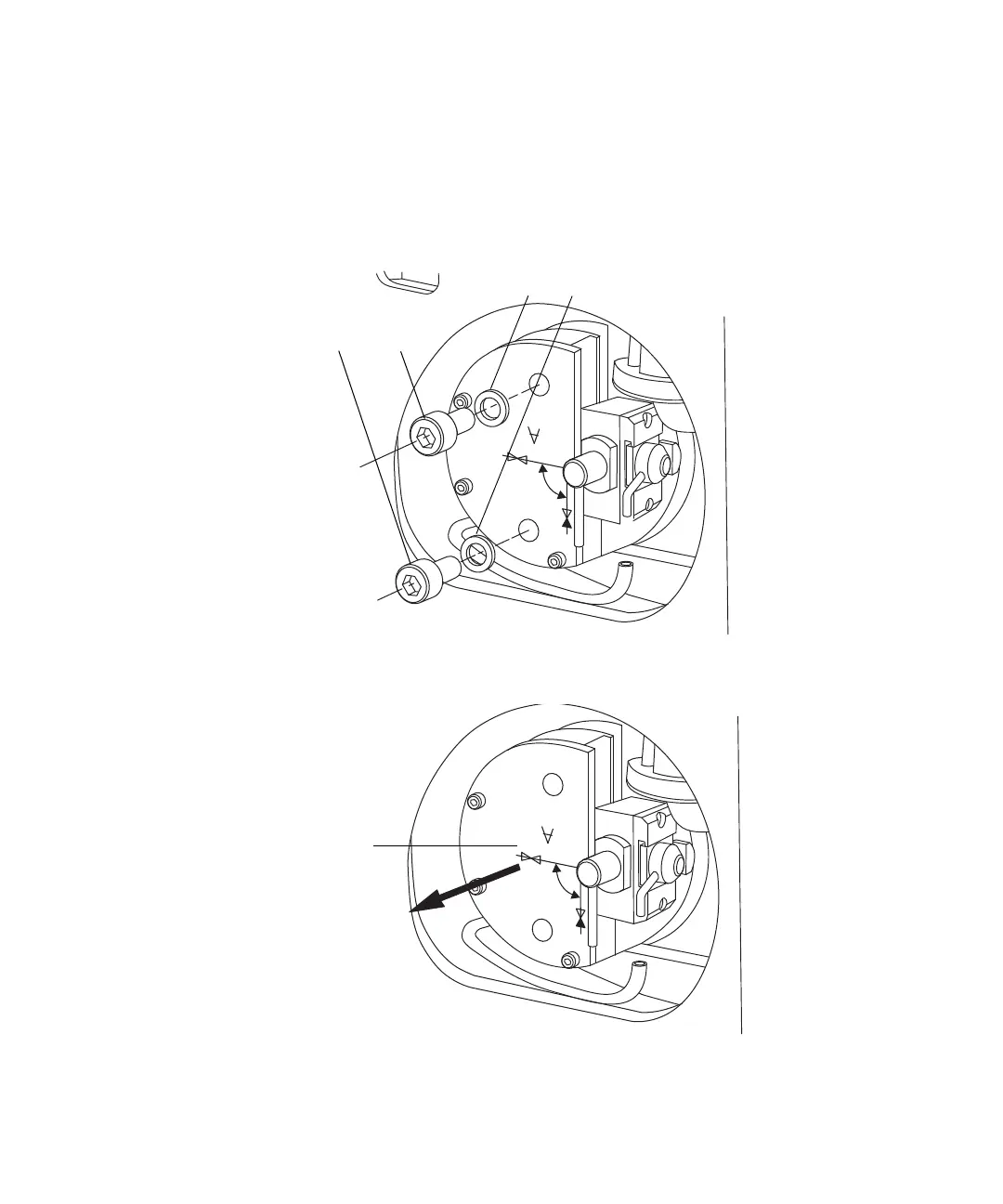

RP000010

Ion block securing screws

Washers

RP00011

Ion block assembly
