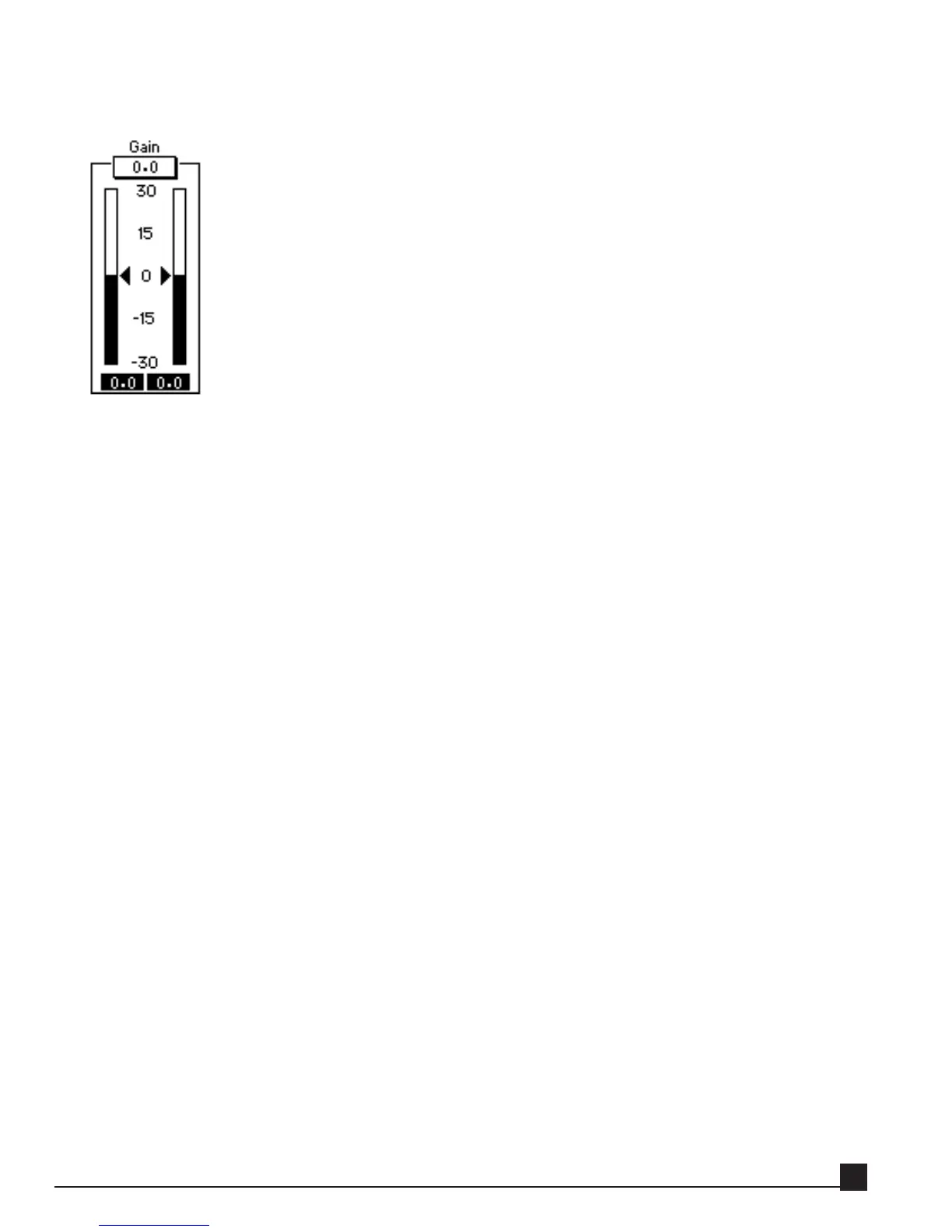

Gain
The Gain parameter adjusts the compressor’s output gain from +30 to -3 dB in 0.1 dB increments. Output
meters use a logarithmic scale from 0 to -60 dBFS. Click the Peak Hold values at the bottom to reset them.
Limiter Section
The Renaissance Compressor has an L1-style limiter at the output stage and works well in compression or
expansion modes. The Threshold and Output Ceiling values are set to 0 dBFS and the limiter activates only
when the level exceeds 0 dBFS. The limiter functions in addition to the compression and the total gain
reduction is shown in the attenuation meter.
Y56K User Guide
45
