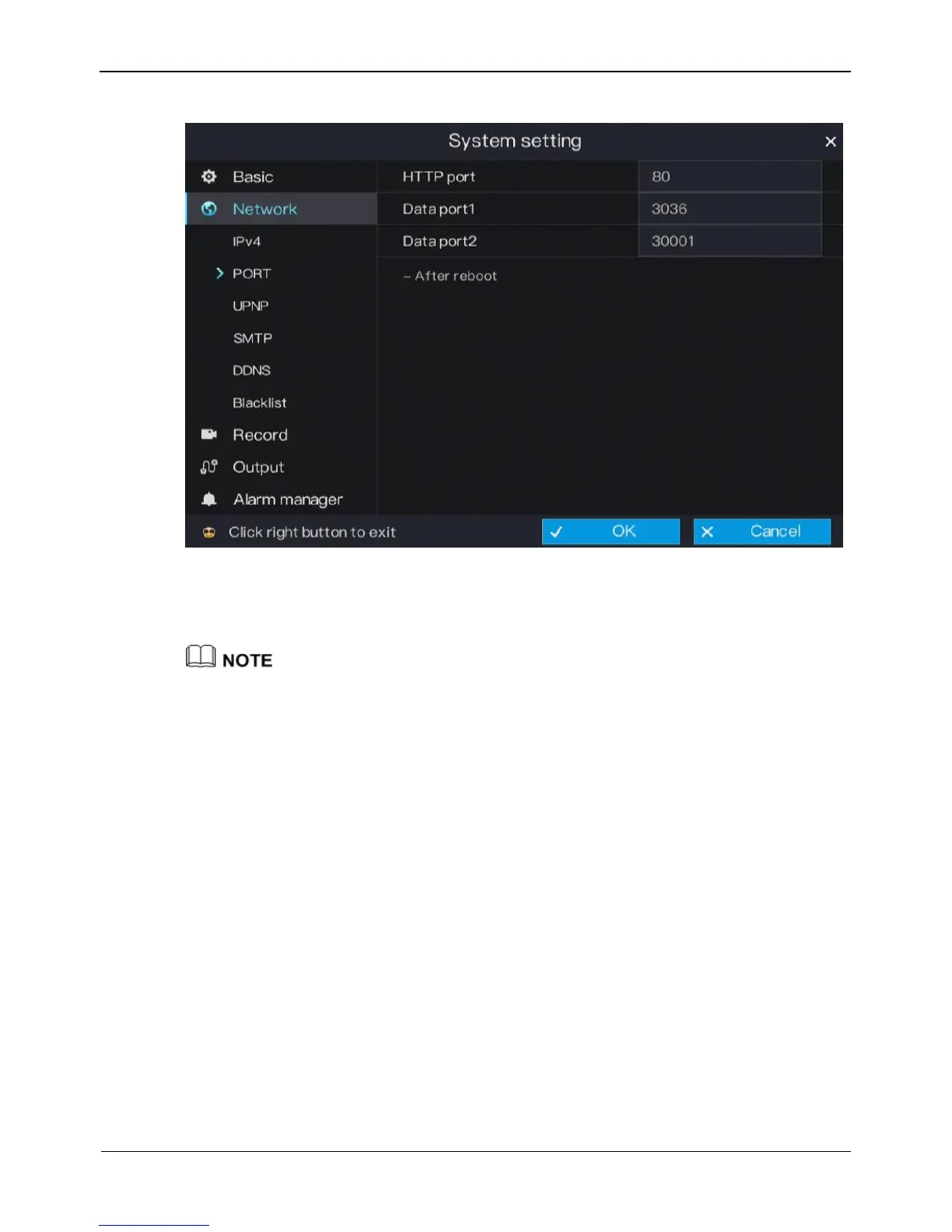

Figure 6-8 Port setting screen
Step 2 Set HTTP port, Data port1 and Data port2 respectively.
Step 3 Click OK to save settings or click Cancel to cancel settings.
Data Port1 used as RTSP port
Data Port2 used as video control port
After Ports is set and saved ,please click OK and Reboot. the port is set successfully.
----End
6.2.3 UPNP
Operation Steps
Step 1 On the System setting screen, choose Network > UPNP to access the port mapping
setting screen, as shown in Figure 6-9.
