CHAPTER 2 - GENERAL INFORMATION
Power
Suplly
L/L1
Analog
Input
(AI1)
Digital
Inputs
(DI1 to DI4)
POWER
CONTROL
POWER SUPPLY FOR
ELETRONICS
AND INTERFACE BETWEEN
POWERAND CONTROL.
"CCP10"
CONTROL
BOARD
WITH DSP
Relay
Output
(RL1)
Motor
U
V
W
Rsh
NTC
PE
PE
RFI Filter
N/L2

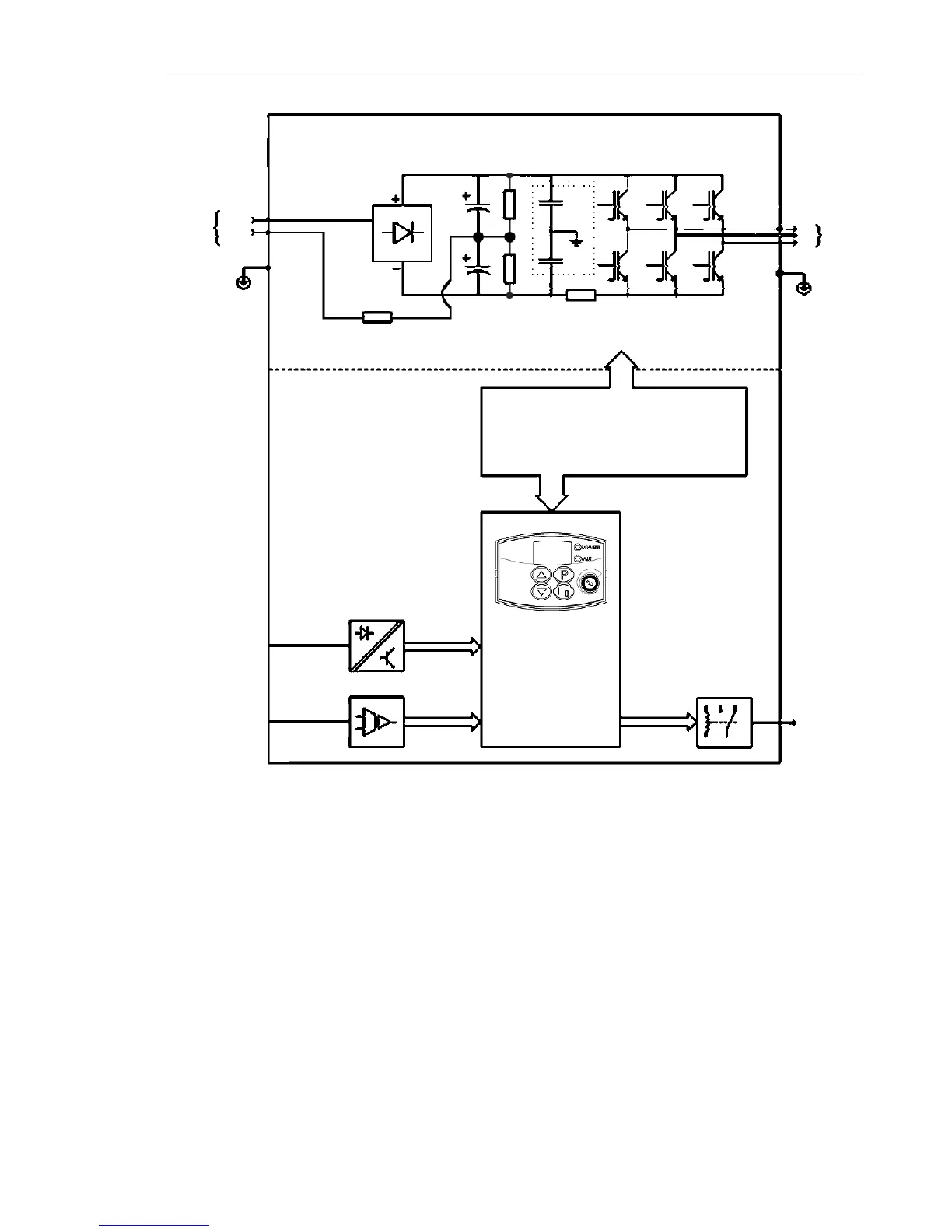

Figure 2.3 - CFW-10 Block Diagram for model 1.6 A and 2.6 A/110-127 V
