58

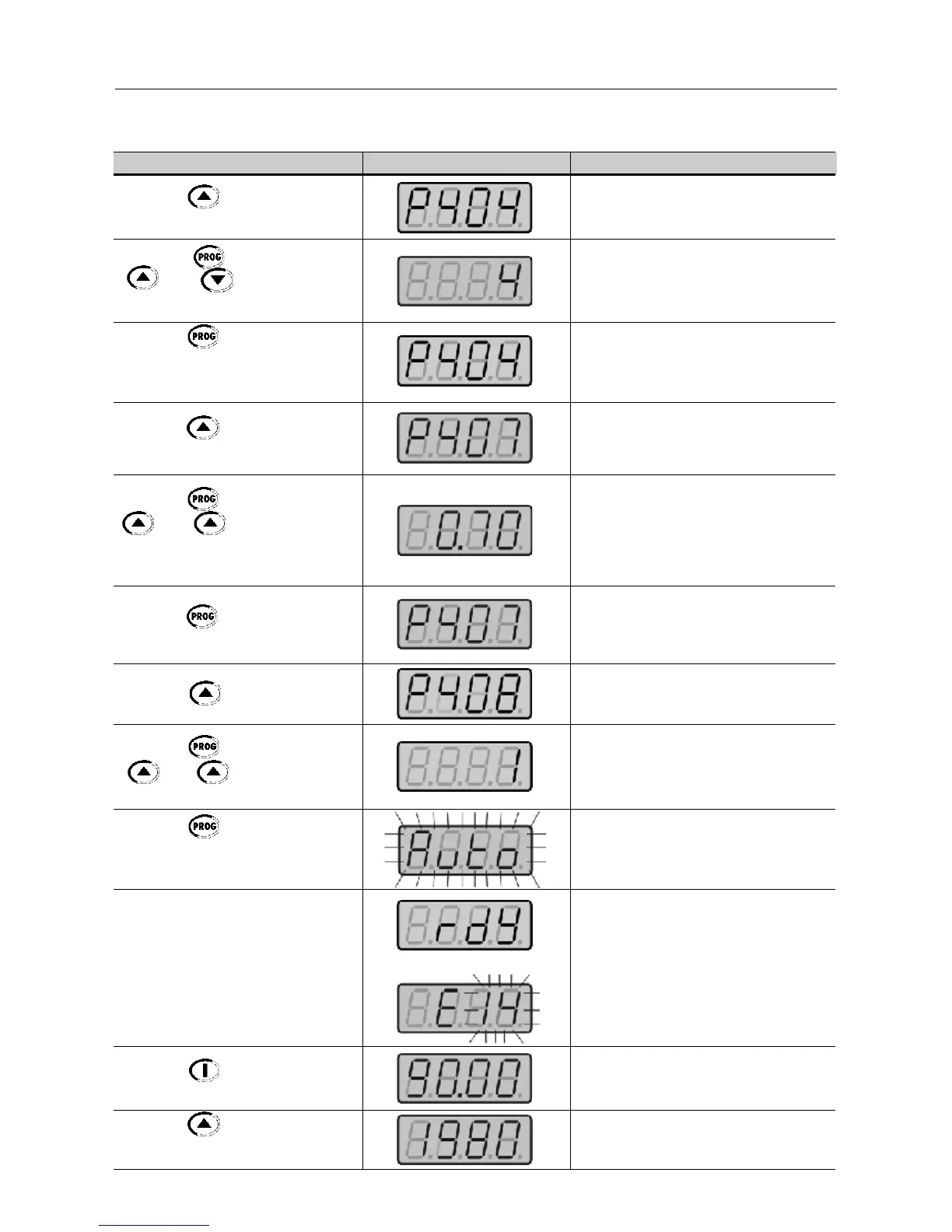

START-UP
ACTION HMI DISPLAY DESCRIPTION
Press the key to go to the next
parameter
Press the key and use the key s
and to set the the correct
motor power.
Press the key to save the
selected option and exit the
programming mode
Press the key to got to the next
parameter
Press the key and use the keys
and to set the correct
motor power factor (in this case 0.70)
Press the key to save the
selected option and exit the
programming mode
Press the key to go to the next
parameter
Press the key and use the keys
and to authorize or not
the start of the parameter estimate
Press the key to start the self-
tuning routine. While the self-tuning routine
is running, the display shows "Auto”.
The running of the Self-Tuning Routine
can last until 2 minutes and after
ending display will show “rdy” (ready),
when the motor parameter were
acquired with success. Otherwise the
fault “E14” is shown. In this case refer
to Note
(1)
below.
Press the key
Press the key and hold it
depressed until the speed of 1980rpm
is reached
Rated motor power range:
0 ... 15 (each value represents a
power value)
Selected rated motor power:
4 = 0.75HP / 0.55kW
Exit the programming mode
Motor power factor range:
0.5 ... 0.99
Set motor power factor:
0.70
Exit the programming mode
Parameter estimation?
0 = No
1 = Yes
1 = Yes
Self-tuning is running
Inverter finished the self-tuning routine
and is ready for operation
or
Running of self-tuning routine has not
been realized with success
(1)
Motor accelerates up to 90rpm (for IV
pole motor - minimum speed) in CW
direction of rotation
(3)
Motor accelerates up to 1980rpm (for IV
pole motor - maximum speed)
OR
