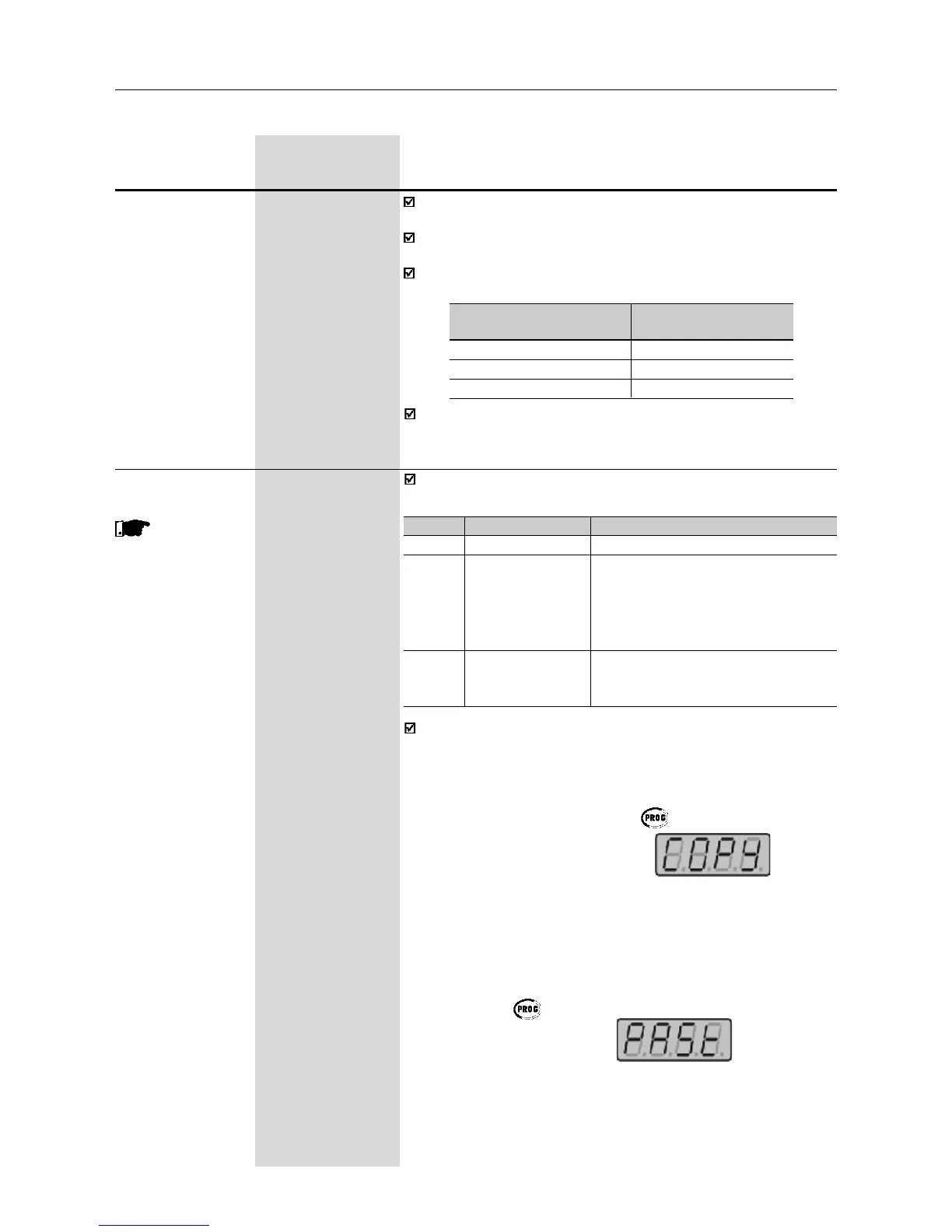

DETAILED PARAMETER DESCRIPTION
Range
[Factory Setting]
Parameter Unit Description / Notes
Motor Pole Number
II poles
IV poles
VI poles
P208 to P002 indicate the
speed in rpm
60
30
20
Always when programmed to vector mode (P202=2), the parameter
P208 is set according to the value of P402 (motor speed) to indicate
the speed in rpm, in P002.
P215
(1)
0...2
Copy Function [ 0 - No function ]
-
This
parameter is only
available via
HMI-CFW08-RS
keypad
The keypad Copy function is used to transfer the content of the
parameters from one inverter to another.
P215
0
1
2
Notes
-
Transfers the current parameter values
of the inverter to non volatile memory
(EEPROM) of the HMI-CFW08-RS keypad.
The current inverter parameters are not
changed.
Transfers the content of the non volatile
memory of the keypad (EEPROM) to the
current inverter parameters.
Action
Off
(1)
This parameter can be changed only with the inverter disabled (motor stopped).
Procedure is as follows:
1. Connect the keypad (HMI-CFW08-RS) to the inverter from which
the parameters willl be copied (Inverter A - source inverter).
2. Set P215=1 (copy) to transfer the parameter values from the
inverter A to the keypad. Press key. During running of the
Copy Function, display will show .
P215 resets automatically to 0 (Off) after transfer has been
completed.
3. Disconnect the keypad from the inverter (A).
4. Concect the same keypad to the inverter to which the
parameters will be transferred (Inverter B - target inverter).
5. Set P215=2 (paste) to transfer the content of the of the keypad
(EEPROM has the inverter A parameters) to inverter B.
Press the key. While the keypad is running the paste
function, the display shows , an abbreviation
for paste.
When P215 returns to 0, the parameter transfer has been
concluded. Now inveters A and B will have the same parameter
values.
It allows that the read-only parameter P002 indicates the motor
speed in value, for instance, rpm.
The indication of P002 is equal to the output frequency value (P005)
multiplied by the value of P208, i.e., P002 = P208 x P005.
If desired, the conversion from Hz to rpm is made as a function of
the pole number:
P208 0.00...99.9
Reference Scale [ 1.00 ]
Factor 0.01 (<10.0)
0.1 (>9.99)
Copy
(inverter→ keypad)
Paste
(keypad → inverter)
