7.4.3.2
Operating the automatic trailer coupling
WARNING
Danger of crushing due to unintentional actuation of the trailer
coupling!
When the trailer coupling lock is actuated, the trailer pin closes abruptly.
Limbs within the range of the trailer pin can be crushed and severely in-
jured.
► Keep all parts of the body away from the range of action of the auto-
matic trailer coupling.
► Alway keep the trailer coupling closed when it is not in use.
To ensure the prescribed swivel angle when coupled, the trailer coupling
may only be used in conjunction with drawbar lugs in accordance with
DIN 11026 (ISO 5692), DIN 74053 (ISO 1102) or DIN 74054 (ISO 8755).
Observe the maximum permissible drawbar load and trailer load: see
Trailer loads and drawbar load on page 236.
The permissible lugs are listed on the type label on the trailer coupling.

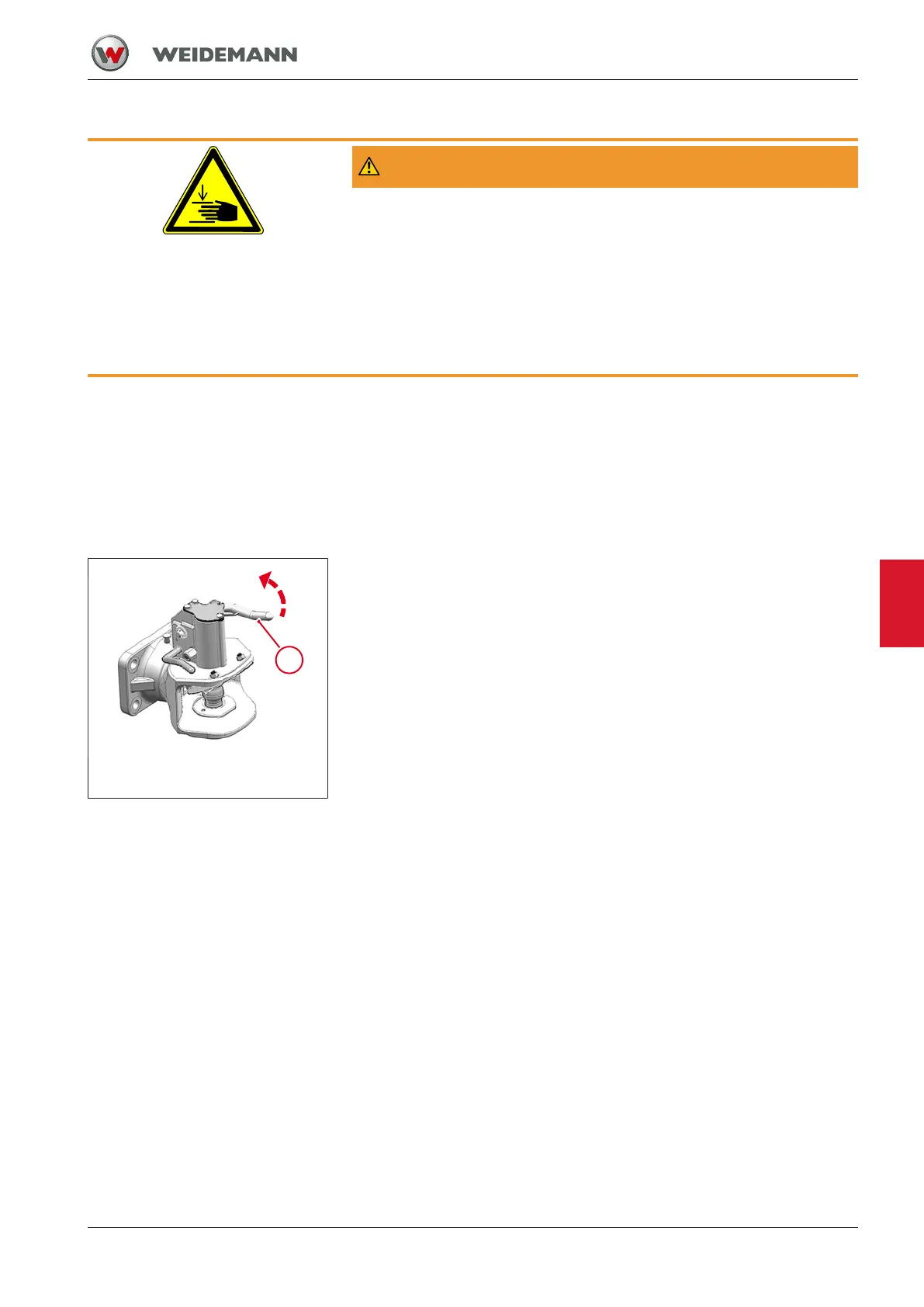

Fig.91: Automatic trailer coupling
Couple the trailer to the vehicle
1. Press lever 1 all the way up.
2. Adjust the trailer drawbar to the correct height.
3. Slowly reverse the vehicle toward the trailer drawbar until the draw-
bar eye touches and sets off the trigger mechanism.
ð When the trigger is touched by the drawbar lug, the coupling pin
quickly moves downwards.
ð The trailer is locked in the coupling jaw.
4. Check the correct locking.
5. Connect the trailer supply lines to the vehicle.
6. Remove the equipment (e.g. chocks, support wheel) used for secur-
ing the trailer.
ð The trailer is coupled and connected.
Uncoupling the trailer from the vehicle
1. Park the trailer on a stable, level and dry surface.
2. Apply parking brake and secure trailer (e.g. with chocks, support
wheel, etc.).
3. Remove the trailer supply lines from the vehicle.
4. Press lever1 all the way upward until the coupling pin audibly en-
gages in the open position.
5. Slowly move the vehicle away from the trailer.
6. Close the trailer coupling by hand.
ð The trailer is uncoupled. The automatic trailer coupling is secured.
