7.8 Working with the vehicle
124
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]
Falling objects
WARNING
Risk of injury from falling load when the loader unit is raised and ex-
tended!
Falling load (e.g. large bales or bale stacks) can lead to serious injury or
death.
► Never lift or transport several large bales or crates at the same time.
► The stacking of general cargo with vehicles without a driver's protect-
ive roof or cab is prohibited.
► Do not step under the raised loader unit.
► Only carry out work with the loader unit raised and extended with ex-
treme caution.
► Do not tilt the attachment up to the stop when the loader unit is
raised and extended.
7.8.2 Operating the loader unit with a joystick

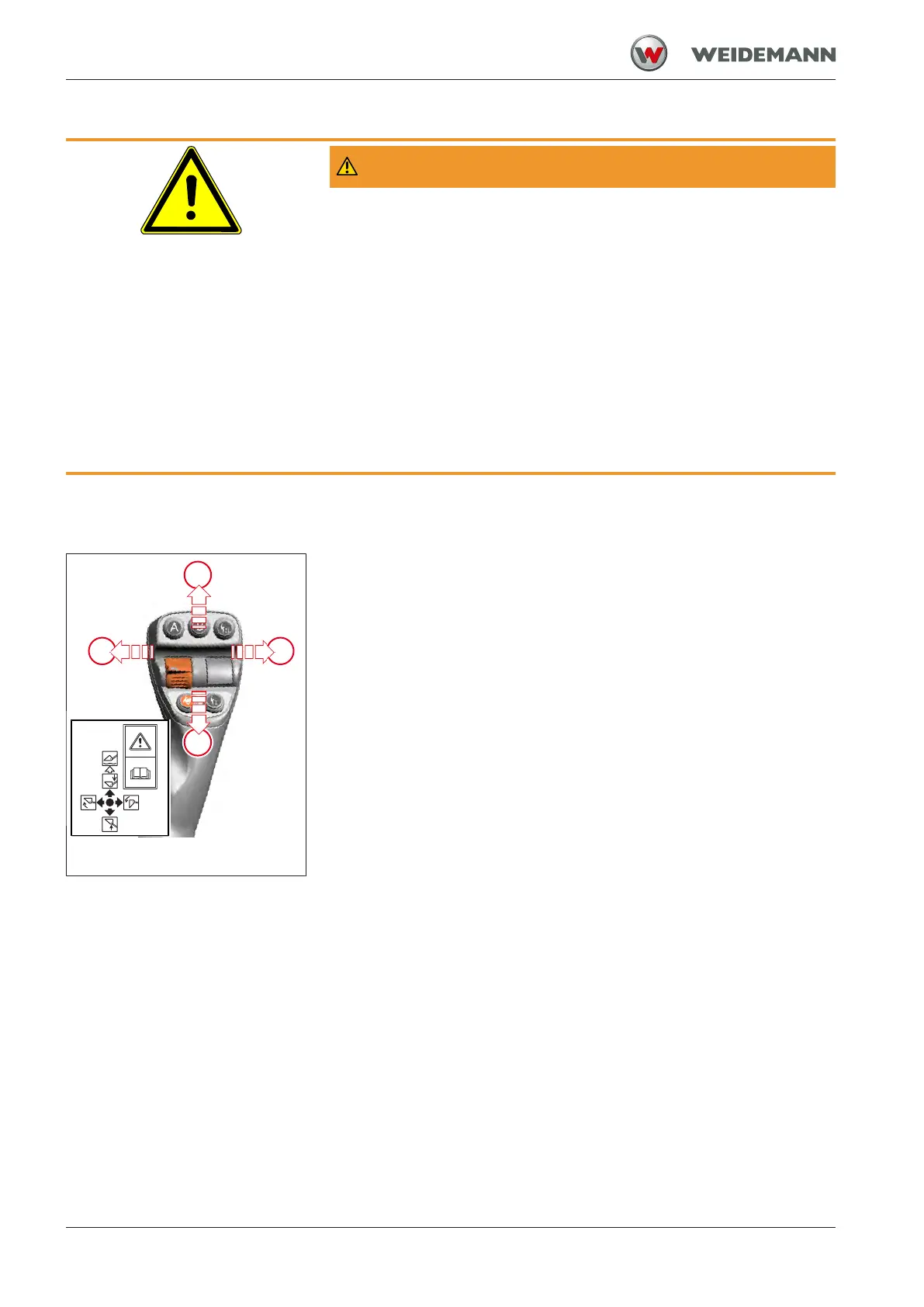

Fig.110: Operating the loader unit
with a joystick
The joystick controls the working movements of the loader unit. The joy-
stick is located to the right of the seat. The control lever automatically re-
turns to the middle position as soon as it is released (with the exception
of the floating position).
▪ Move the lever in direction I.
ð The loader unit lowers itself.
▪ Move the lever in direction II.
ð The loader unit is raised.
▪ Move the lever in direction III.
ð Attachment tilts out.
▪ Move the lever in direction IV.
ð Attachment tilts in.
