7.12 Working with attachments
150
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]
7.12.3
Level indicator for buckets

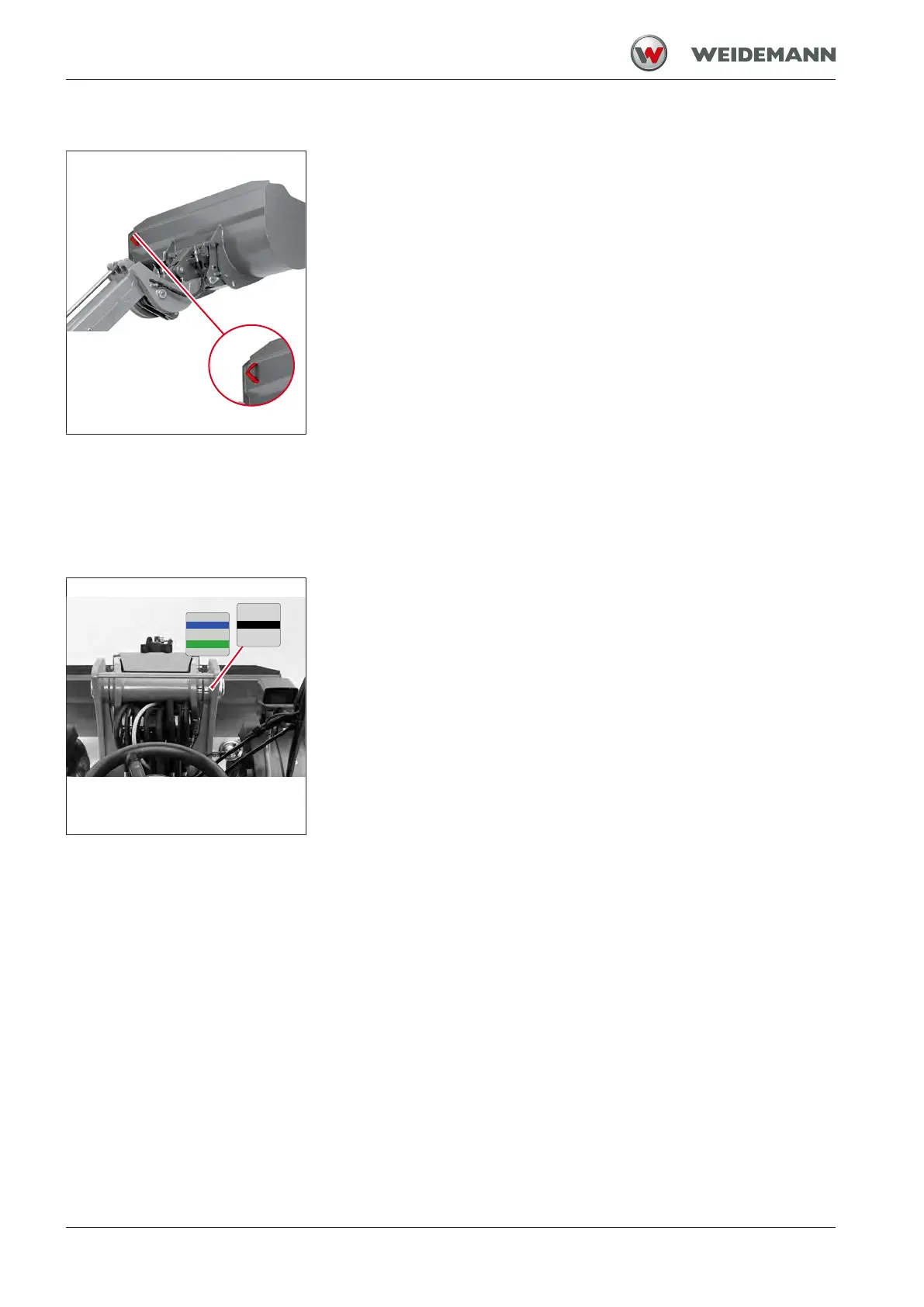

Fig.142: Display of bucket position
The level indicator for attachments allows you to better estimate the tilt
position of the attachment. Observe the angle attached to the attachment
to better estimate the tilt position of the attachment.
7.12.4
Indicator for the position of the loader unit
Adjusting the loader unit to the indicated height prevents the attachment
from touching the ground while driving and the headlights from being con-
cealed.
Fig.143: Indicator for the position of
the loader unit
The display of the position for the loader unit is located on the top right of
the loader unit.
• Blue mark: Attachment pallet fork
• Green mark: Attachment standard bucket
▪ Tilt the attachment and lift the mast until the black strip on the right
sticker is aligned with the corresponding strip on the left label.
ð The height is set.
7.12.5
Using the lightweight material bucket and earth bucket
Use the lightweight material bucket for lightweight materials such as
grain, maize and concentrated feed.
Use the earth bucket for heavy materials such as gravel, sand, soil and
rock.
Designated use
The designated use of the attachments lightweight material/earth bucket
is loosening, picking up, transporting and dumping material.
Transporting persons in the lightweight material/earth bucket is not in
compliance with the designated use.
