Operation
Working with attachments 7.12
151
[en] | 05/2019 | 1000408123 | 4080T Basic Line | Operator’s Manual
Working with the lightweight material or earth bucket
The bucket can be used for loading or excavation work. Practice working
with the bucket on free and safe terrain before starting work for the first
time.

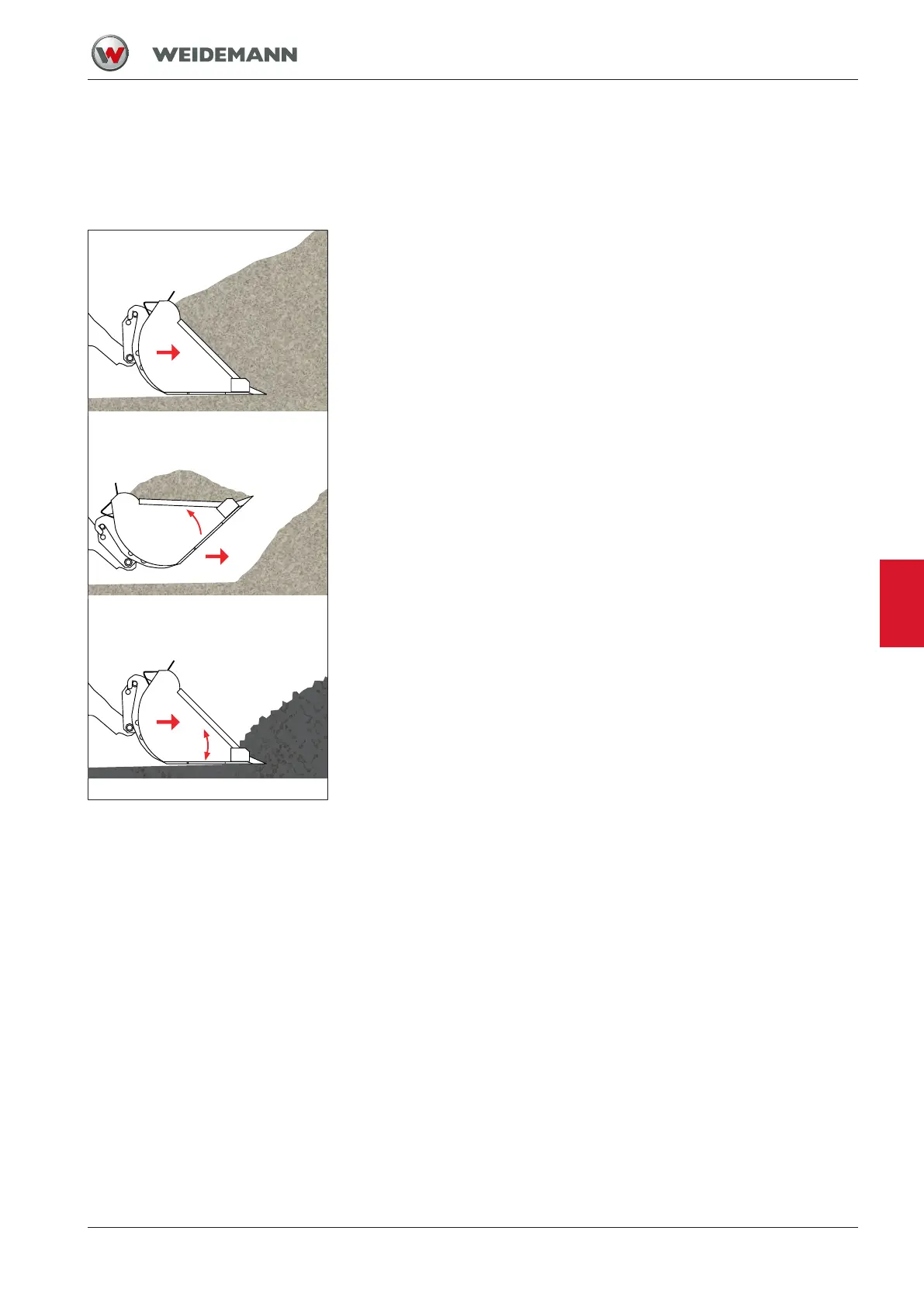

Fig.144: Loading work
Loading work
Pick up material:
1. Lower the attachment and align it parallel to the ground.
2. Drive into the material to be loaded.
ð Pay attention to the travel speed.
3. Raise the loader unit a little to load the front axle of the vehicle.
ð The wheel slip can be reduced manually by inching.
4. Tilt the attachment when it fills.
ð Attachment is filled.
If material is to be loaded into which the cutting edge of the bucket can
only penetrate with difficulty, the joystick can be used to generate an up
and down movement of the cutting edge. This facilitates the penetration
of the cutting edge into the material.
Unload Material:
1. Drive to unloading position with filled attachment.
ð Keep the loader unit as close to the ground as possible
2. Travel to the unloading position in a straight line.
3. Lift the attachment to the required height just before the unloading
position.
4. Drive forward as far as necessary.
5. Empty attachment.
ð The material falls out.
