Maintenance
Maintenance accesses on the vehicle 9.3
181
[en] | 05/2019 | 1000408123 | 4080T Basic Line | Operator’s Manual

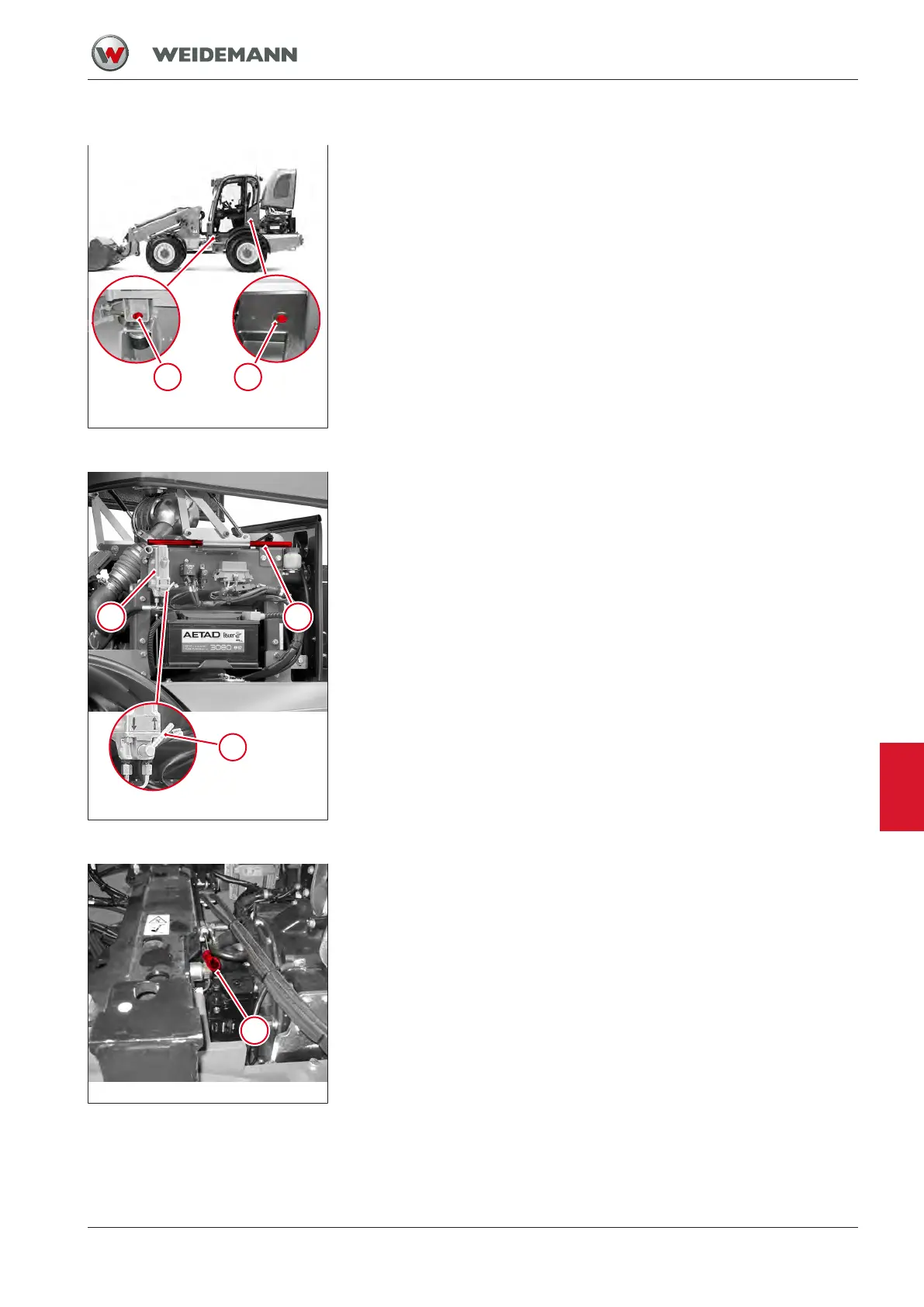

Fig.173: Cab fastening screws
Preparing to tilt cab
1. Remove loose objects from the cab.
2. Ensure that there is enough space to the right of the vehicle.
3. Loosen and unscrew fastening screws 1 and 2.
4. Close or unhinge cab doors.
5. Open the engine cover.
Fig.174: Lever and pump
Tilting the cab
The cab can be tilted to the side with the lever 1 and the pump 2. Lever 3
controls the tilting direction of the cab.
1. Remove the lever from the holder.
2. Insert the lever into the opening on the pump.
3. Turn the lever on the pump to the right.
4. Tilt the cab by pumping until the lock audibly engages.
Fig.175: Unlocking the lock
Tilt back cab
1. Move lever 3 on the pump to the left.
2. Insert the lever into the opening on the pump.
3. Pull shackle 1 to release the lock and pump at the same time until
the shackle can no longer engage.
4. Tilt the cab back by pumping until the cab bearings are in contact.
5. Reinstall the fastening screws immediately.
