Maintenance
9.7 Lubricating the vehicle and attachment
196
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]
1 2 3 4 5 6 7 98 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24 25 26 27

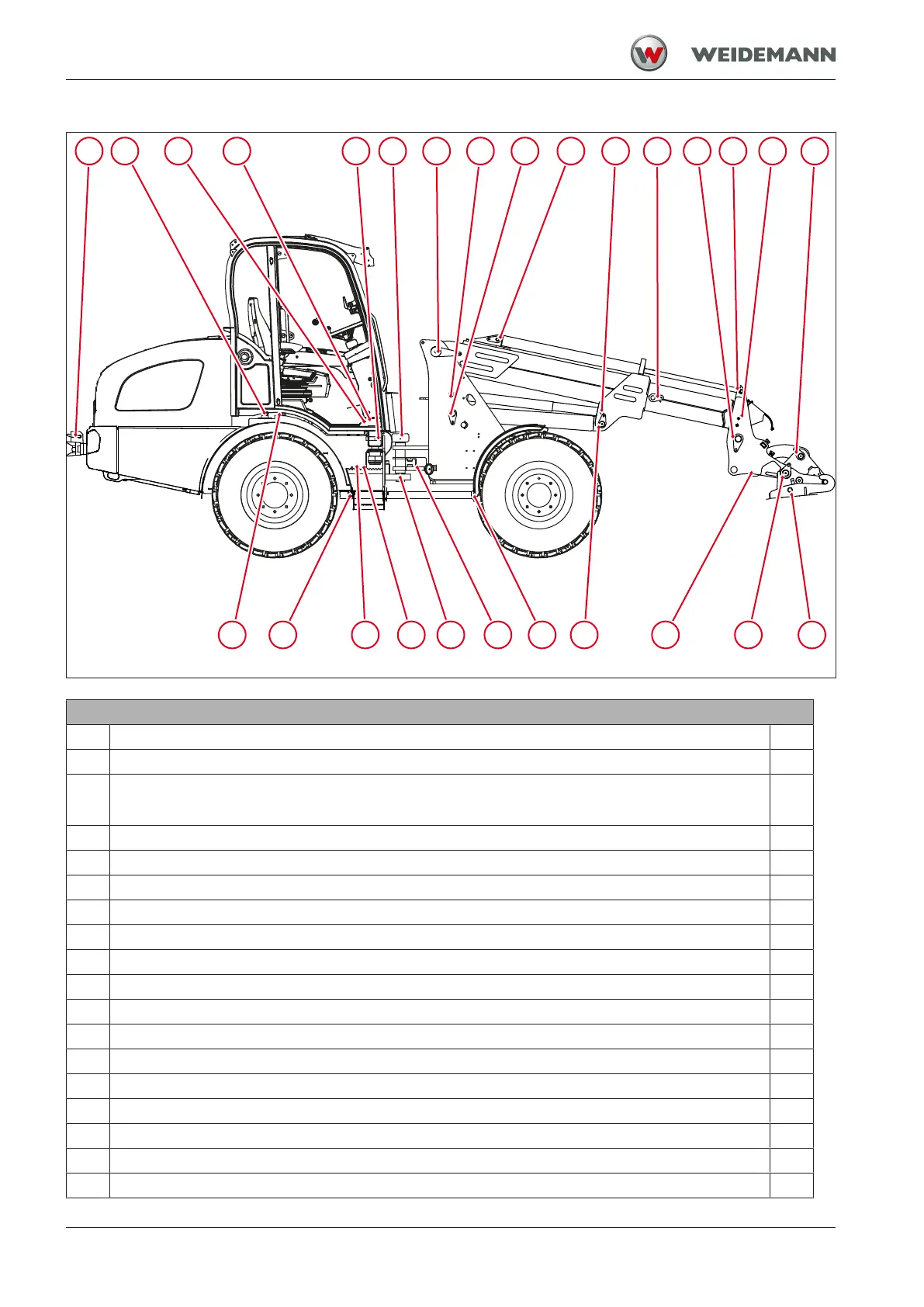

Fig.187: Lubrication plan
Lubrication point and number [x]
1 Automatic trailer hitch (option) [2]
2 Rear cab tilt hinge [1]
3 Bearing of the brake pedal (in cab)
Bearing of the brake pedal (under cab)
[1]
[1]
4 Bearing of gas pedal (in cab) [1]
5 Front cab tilt hinge [1]
6 Bearing of the central joint at the top [1]
7 Bearing of loader unit [2]
8 Bearing of balancer cylinder rear [1]
9 Bearing of lift cylinder rear [1]
10 Bearing of extension cylinder rear [1]
11 Bearing of balancer cylinder front [1]
12 Bearing of tilt cylinder rear (extend telescopic arm) [1]
13 Bearing of the return lever [1]
14 Bearing of extension cylinder front [1]
15 Bearing of tilt cylinder front [1]
16 Bearing of drawbar front [1]
17 Bearing of cab tilt cylinder (under cab) [2]
18 Drive shaft rear [1]
