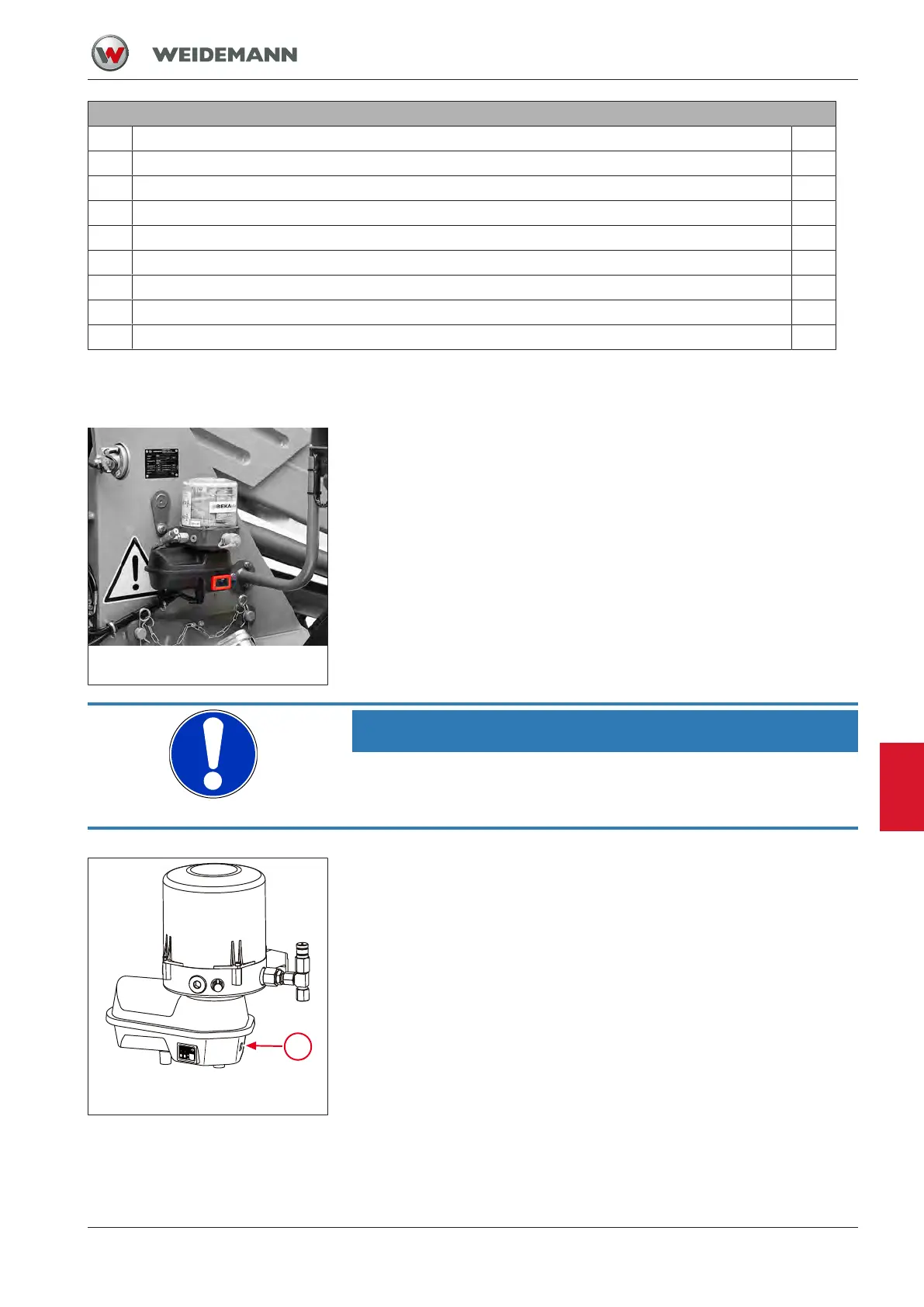

Maintenance
Lubricating the vehicle and attachment 9.7
197
[en] | 05/2019 | 1000408123 | 4080T Basic Line | Operator’s Manual
Lubrication point and number [x]
19 Bearing of the central joint top (remote lubrication at entry) [1]
20 Bearing of the steering cylinder at the rear (remote lubrication at entry) [1]
21 Bearing of the central joint bottom [1]
22 Bearing of steering cylinder front [1]
23 Drive shaft front [1]
24 Bearing of lifting cylinder front [1]
25 Bearing of drawbar rear [2]
26 Pivot point of quickhitch [2]
27 Hydraulic locking bolt for attachments [2]
9.7.2
Central lubrication system
Fig.188: Positioning of the central
lubrication system on the vehicle
The central lubrication system automatically lubricates the vehicle's lub-
rication points periodically. The integrated electronic control unit has a
data memory. for saving the times that have been set or that have
elapsed. The time is taken and saved if the ignition is switched off during
lubrication or during a break. The remaining lubrication time or break time
is read from the memory upon switching the ignition on again, and lubric-
ation is resumed where it was interrupted.
Lubrication time control
NOTICE
Water penetrating into the controls of the central lubrication system
can destroy them!
► Always close the lid of the central lubrication system correctly.
Fig.189: Switch for intermediate lub-
rication
Break and lubrication times can be set with the time-dependent control of
the central lubrication system. Break times are the periods between two
lubrication times.
When the ignition is switched on, intermediate lubrication can be
triggered at any time by actuating switch 1 on the side of the pump. This
intermediate lubrication can also be used as a functional check.
The pump then immediately starts with a lubrication cycle. The lubrication
or break time that has elapsed so far or that has been saved is reset and
starts over again.
A fault in the central lubrication system can also be reset by pressing
switch 1. The pump restarts a lubrication cycle.
9
